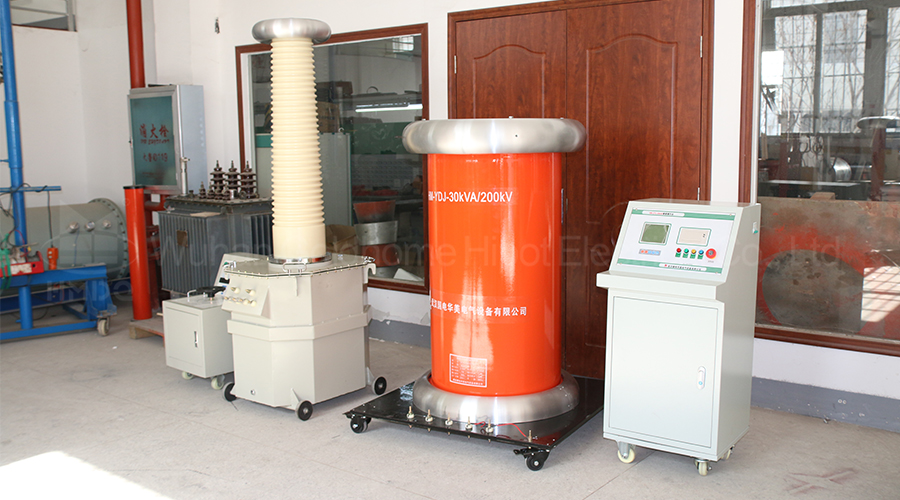

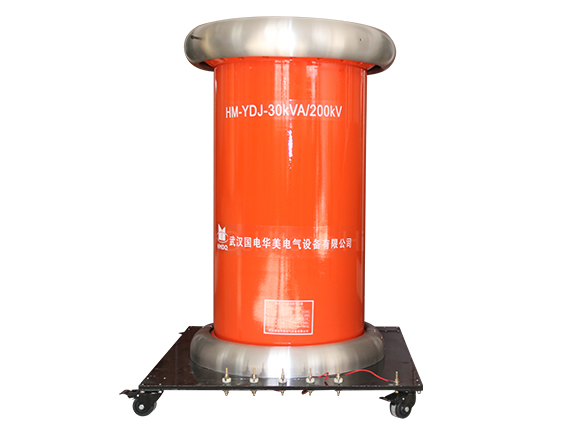

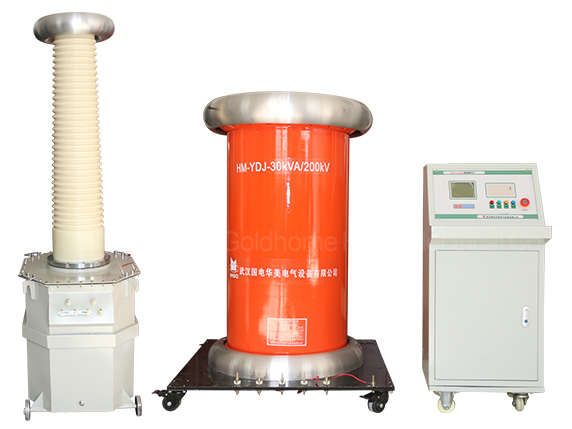

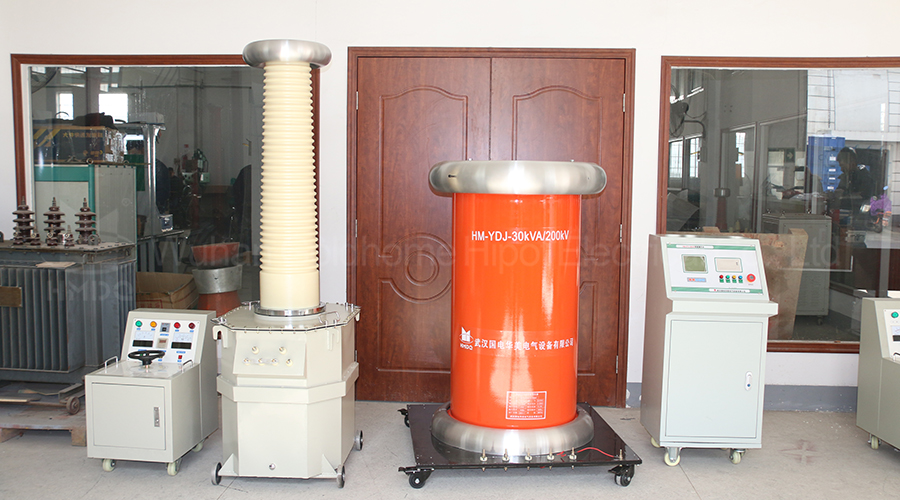

High-Voltage Test System AC/DC hipot Testing Set

High-Voltage Test System AC/DC hipot Testing Set

(106 Reviews)

Applications:

High-Voltage Test System AC/DC hipot Testing Set are commonly used for high-voltage testing of power equipment and insulation materials. For example, conducting voltage withstand tests on equipment such as generators, transformers, insulators, cables, etc. to ensure their safe and reliable operation at rated operating voltage.

Strictly FAT Test
Third-party Calibration

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile:

Features:

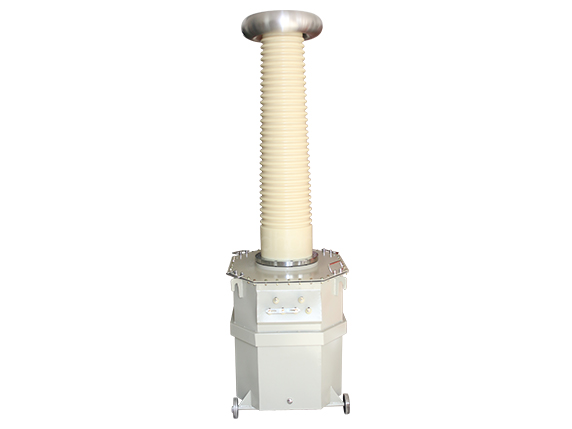

The high-voltage test transformer has the ability to output high voltage and can provide stable high voltage output.
The product adopts high-quality materials and advanced manufacturing processes, with efficient and reliable performance.
The device has multiple protection functions, such as overload protection, short circuit protection, etc., which can ensure the safety of the device and users.
High voltage test transformers usually have a smaller volume and weight, making them easy to carry and use.

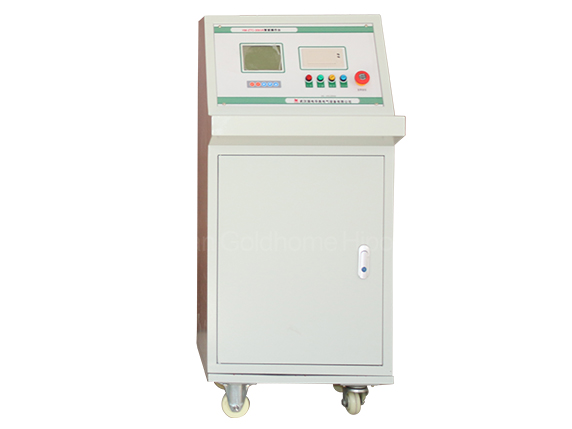

Products usually have digital display screens or other forms of display devices to facilitate user operation and monitoring.
High voltage test transformers usually have a long service life and can meet long-term and stable high voltage output requirements.
Products usually have high insulation performance and voltage resistance, and can work stably under harsh environmental conditions.

Parameter:

Model*	Capacitance(kVA)	Voltage(kV)	Current(mA)	Input		Ratio	Temperature Rise℃(30min)
Model*	Capacitance(kVA)	Voltage(kV)	Current(mA)	Voltage(V)	Current(A)	Ratio	Temperature Rise℃(30min)
HMYDJ-1.5/50	1.5	50	30	200	7.5	500	10
HMYDJ-3/50	3	50	60	200	15	500	10
HMYDJ-5/50	5	50	100	200	25	500	10
HMYDJ-10/50	10	50	200	200	50	500	10
HMYDJ-20/50	20	50	400	380	52.6	500	10
HMYDJ-30/50	30	50	600	380	79	500	10
HMYDJ-50/50	50	50	1000	380	132	500	10
HMYDJ-5/100	5	100	50	200	25	1000	10
HMYDJ-10/100	10	100	100	200	50	1000	10
HMYDJ-20/100	20	100	200	380	52.6	1000	10
HMYDJ-30/100	30	100	300	380	79	1000	10
HMYDJ-50/100	50	100	500	380	132	1000	10
HMYDJ-15/150	15	150	100	380	39.5	1500	10
HMYDJ-20/150	20	150	133	380	52.6	1500	10
HMYDJ-25/150	25	150	167	380	65.7	1500	10
HMYDJ-30/150	30	150	200	380	79	1500	10
HMYDJ-50/150	50	150	333	380	132	1500	10
HMYDJ-100/150	100	150	667	380	263	1500	10
HMYDJ-50/200	50	200	250	380	132	2000	10
HMYDJ-100/200	100	200	500	380	263	2000	10
HMYDJ-150/200	150	200	750	380	395	2000	10
HMYDJ-200/200	200	200	1000	380	526	2000	10
HMYDJ-300/200	300	200	1500	380	790	2000	10
HMYDJ-50/300	50	300	167	380	132	3000	10
HMYDJ-100/300	100	300	333	380	263	3000	10
HMYDJ-150/300	150	300	500	380	395	3000	10
HMYDJ-200/300	200	300	667	380	526	3000	10
HMYDJ-300/300	300	300	1000	380	790	3000	10
