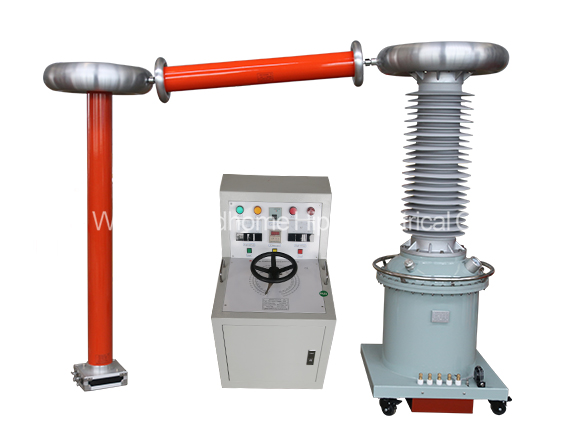

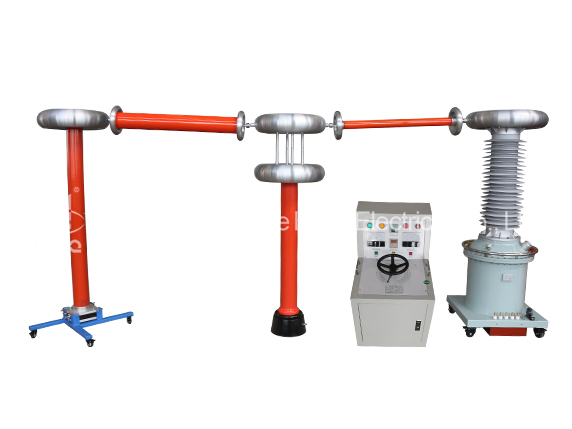

HMYDQW(JZ)20kVA/200kV AC/DC High Voltage Test Transformer System (Gas Type)
Applications:
It is commonly used to test the following types of equipment:
1. Transformer : It is used to test the voltage resistance of the transformer to ensure its insulation performance under the rated voltage.
2. Generator: It is used to test the voltage resistance of the generator to ensure its insulation performance at the rated voltage.
3. Cable: It is used to test the dielectric strength and voltage resistance of power cables.
4. Switchgear and circuit breaker: It is used to test the insulation performance of switchgear and circuit breaker under rated voltage.
5. Power capacitors and power reactors: used to test the dielectric strength of power capacitors and power reactors.
1. Transformer : It is used to test the voltage resistance of the transformer to ensure its insulation performance under the rated voltage.
2. Generator: It is used to test the voltage resistance of the generator to ensure its insulation performance at the rated voltage.
3. Cable: It is used to test the dielectric strength and voltage resistance of power cables.
4. Switchgear and circuit breaker: It is used to test the insulation performance of switchgear and circuit breaker under rated voltage.
5. Power capacitors and power reactors: used to test the dielectric strength of power capacitors and power reactors.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
AC/DC Hipot Test Transformer System (Gas Type) is a testing equipment designed according to the latest industry testing standards. It is safe, reliable, powerful, convenient to use, and easy to maintain. It is mainly used for conducting insulation strength tests on various electrical products, electrical components, insulation materials, etc. under specified voltage to assess the insulation level of the product, discover insulation defects of the tested object, and measure the ability of overvoltage. It is a relevant department of power operation The preferred product for electrical and electrical manufacturing enterprises, metallurgical, coal mining, electrified railway related departments, research institutions, and higher education institutions that require voltage withstand testing equipment.
Features:
- High precision；
- Safe and reliable；
- Convenient reading；
- Convenient to carry.
Parameter:
- Environment temperature：-20℃ to +40℃.
- Relative humidity：＜85％ at 25℃.
- The installation site shall be free from gas, steam, chemical dust, dirt and other explosive media which seriously affect the insulation of the transformer.
- When the test transformer is in use, its input voltage should be gradually increased and enough protection resistance should be installed at the output end. It is strictly prohibited to break the equipment under high voltage.
- Transformer Running time: 1 min
Pictures:
