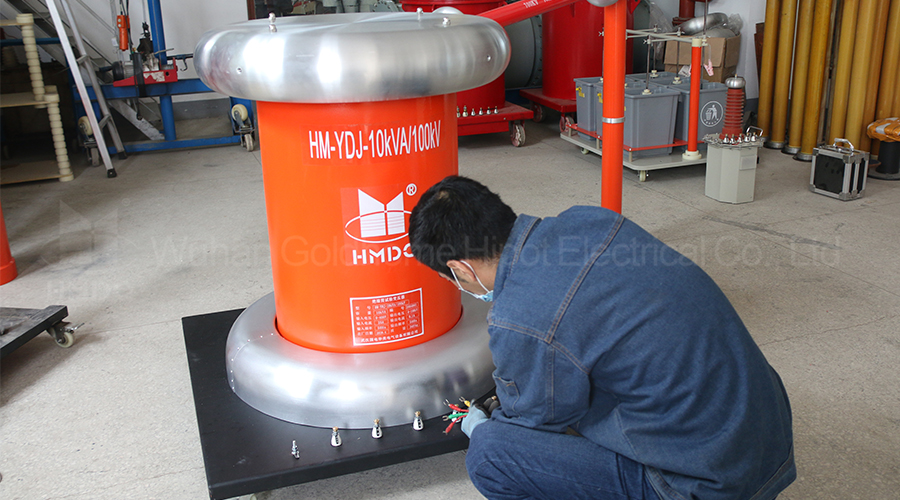

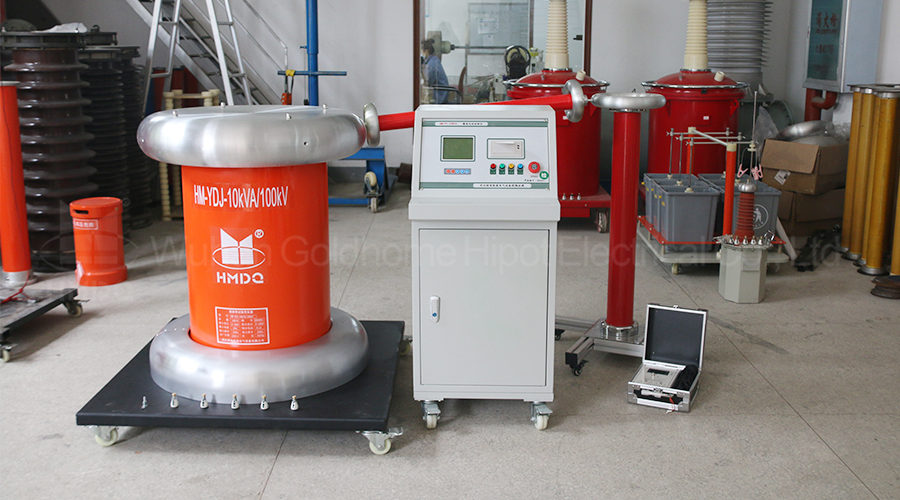

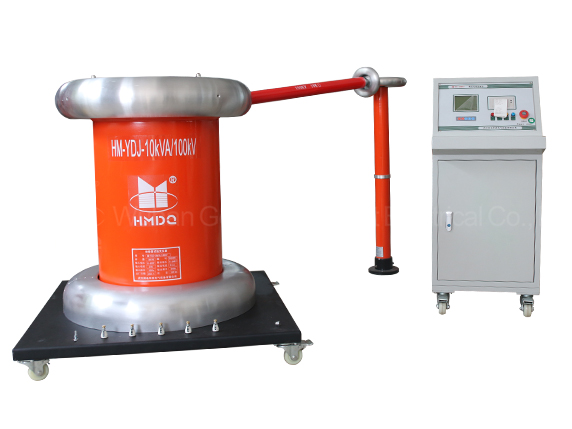

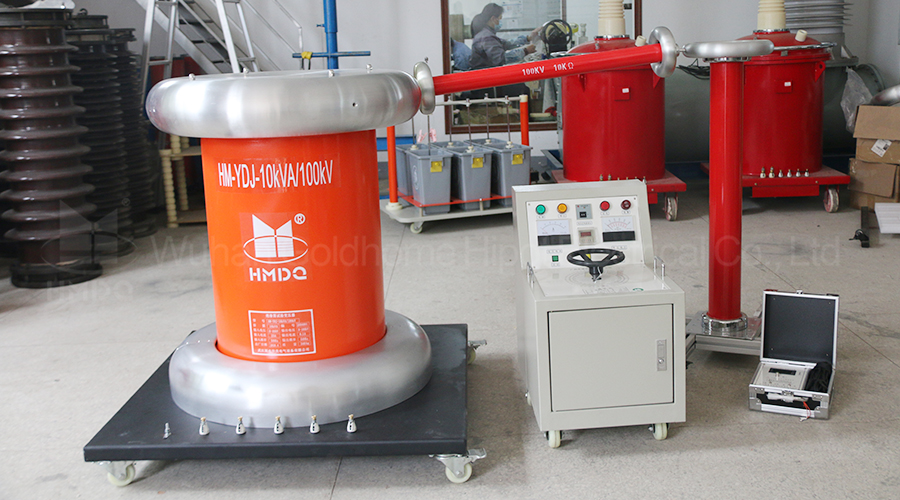

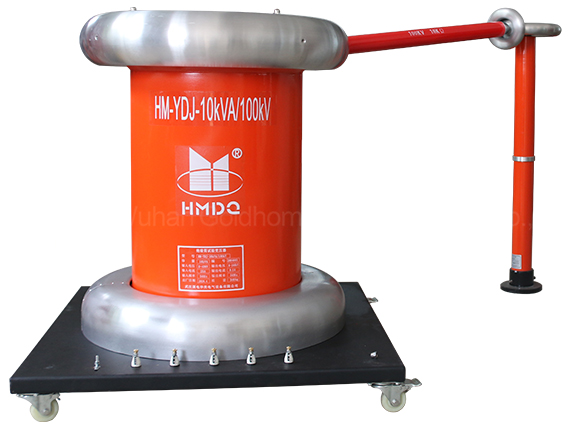

10kVA/100kV High-Voltage Test Transformer Hipot Tester

10kVA/100kV High-Voltage Test Transformer Hipot Tester

(106 Reviews)

Applications:

10kVA/100kV High-Voltage Test Transformer Hipot Tester is suitable for conducting insulation strength tests on various high-voltage electrical equipment, electrical components, and insulation materials under power frequency or DC high voltage in power systems, industrial and mining enterprises, scientific research departments, etc

Strictly FAT Test
Third-party Calibration

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile:

High voltage test transformers have the characteristics of small volume, reasonable weight, compact structure, complete functions, strong universality, and convenient use. High voltage trial transformers are particularly suitable for conducting insulation strength tests on various high-voltage electrical equipment, electrical components, and insulation materials under power frequency or DC high voltage in power systems, industrial and mining enterprises, scientific research departments, etc. It is an essential and important equipment in high-voltage testing.

Features:

High voltage test transformers have excellent material selection, reliable quality, and good stability
Large voltage margin, low corona sound, and low partial discharge
Using new insulation materials, small in size and lightweight

Parameter:

Input voltage:AC 220V(10KVA or below);AC 400V(over 10KVA)
No-load current:<10%
Impedance voltage:<10%
Ratio Error:＜1%
Meter voltage:100V
Oil insulation:2.5mm＞50kV

Model *	Input	Output	Primary	Secondary	Size(mm)	Weight(kg)
3/50	AC200V	50kV	15A	60mA	320×240×620	40
5/50			25A	100mA	360×255×650	54
10/50			50A	200mA	410×285×750	72
15/50	AC400V		37.5A	300mA	440×290×760	93
20/50			50A	400mA	450×300×770	110
30/50			75A	600mA	480×320×800	180
50/50			125A	1000mA	550×350×840	244
5/100	AC200V	100kV	25A	50mA	460×350×1100	95
10/100	AC200V		50A	100mA	490×350×1120	116
15/100	AC400V		37.5A	150mA	510×380×1180	160
20/100			50A	200mA	530×400×1200	182
30/100			75A	300mA	560×430×1250	205
50/100			125A	500mA	580×480×1350	225
15/150		150kV	37.5A	100mA	630×500×1650	235
20/150			50A	133mA	640×510×1680	240
30/150			75A	200mA	650×540×1710	255
50/150			125A	333mA	660×550×1750	285
20/200		200kV	50A	100mA	740×670×2100	300
30/200			75A	150mA	750×680×2200	350
50/200			125A	250mA	800×700×2250	420
