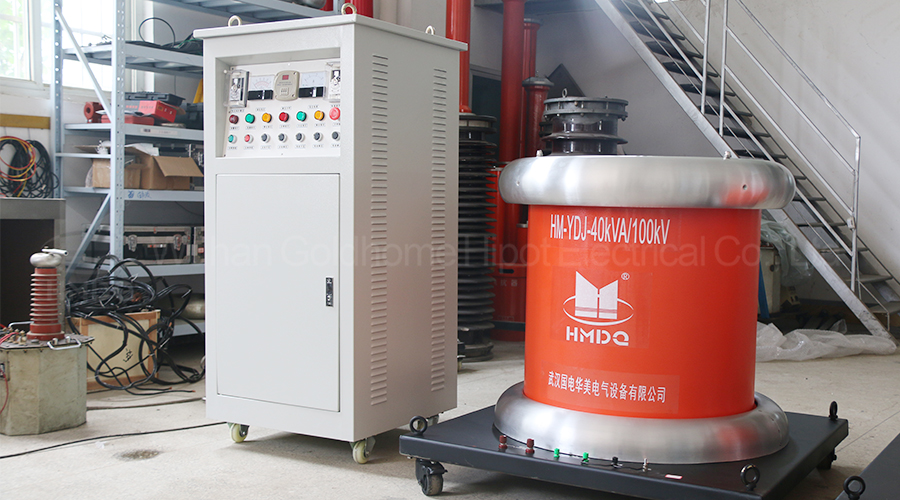

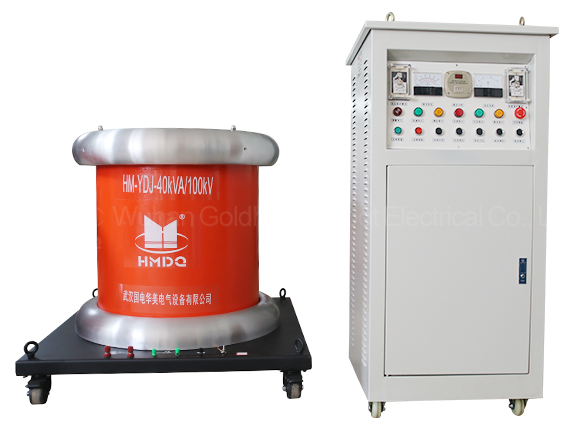

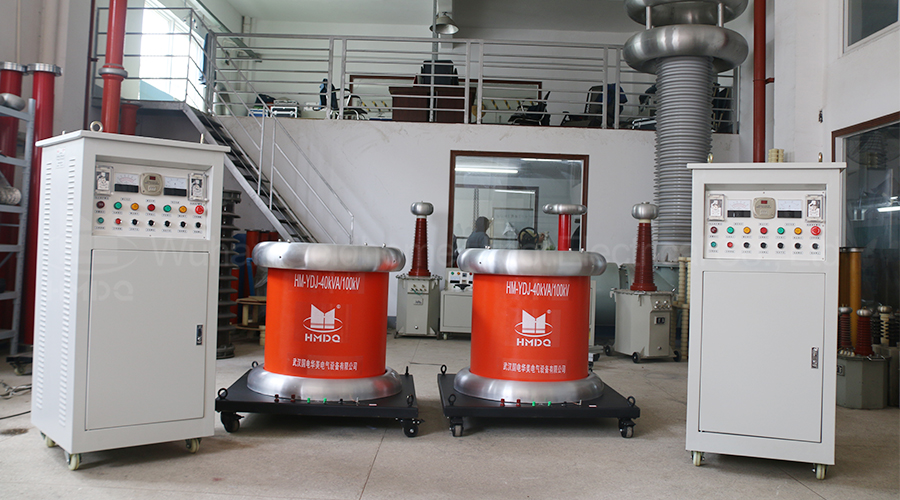

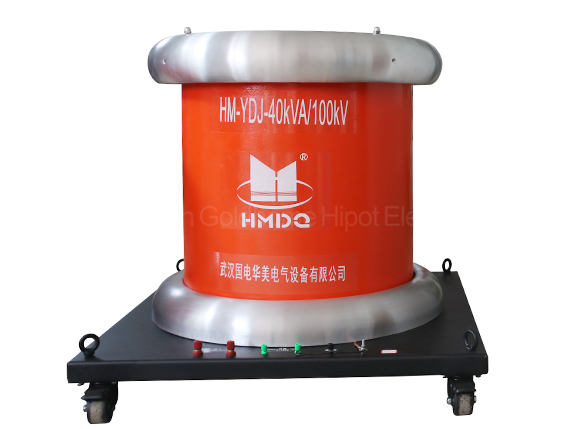

40kVA/100kV AC Hipot Tester Testing Transformer

40kVA/100kV AC Hipot Tester Testing Transformer

(106 Reviews)

Applications:

Strictly FAT Test
Third-party Calibration

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile:

40kVA/100kV AC Hipot Tester Testing Transformer are commonly used for conducting high voltage withstand tests on insulation materials, insulation structures, or electrical equipment. These test subjects can be electrical equipment such as cables, switches, sockets, insulators, transformers, or insulation material samples. During the testing process, the high-voltage test transformer will apply high voltage to the test object to verify its insulation performance and tolerance under high voltage. These experiments can help ensure that the tested substance can work safely and reliably in actual use.

Features:

1. High voltage test transformers have high voltage insulation performance and can withstand testing and detection of high voltage currents.
2. The product has stable output voltage and current, which can meet various high-voltage testing needs.
3. The transformer adopts high-quality insulation materials and advanced manufacturing processes to ensure the safety and reliability of the product.
4. Exquisite design, compact structure, easy installation and operation.
5. It has overload protection and fault self diagnosis functions, which can protect the safety of equipment and operators.
6. High voltage test transformers with different specifications and parameters can be customized according to customer needs.

Parameter:

Model*	Capacitance(kVA)	Voltage(kV)	Current(mA)	Input		Ratio	Temperature Rise℃(30min)
Model*	Capacitance(kVA)	Voltage(kV)	Current(mA)	Voltage(V)	Current(A)	Ratio	Temperature Rise℃(30min)
HMYDJ-1.5/50	1.5	50	30	200	7.5	500	10
HMYDJ-3/50	3	50	60	200	15	500	10
HMYDJ-5/50	5	50	100	200	25	500	10
HMYDJ-10/50	10	50	200	200	50	500	10
HMYDJ-20/50	20	50	400	380	52.6	500	10
HMYDJ-30/50	30	50	600	380	79	500	10
HMYDJ-50/50	50	50	1000	380	132	500	10
HMYDJ-5/100	5	100	50	200	25	1000	10
HMYDJ-10/100	10	100	100	200	50	1000	10
HMYDJ-20/100	20	100	200	380	52.6	1000	10
HMYDJ-30/100	30	100	300	380	79	1000	10
HMYDJ-50/100	50	100	500	380	132	1000	10
HMYDJ-15/150	15	150	100	380	39.5	1500	10
HMYDJ-20/150	20	150	133	380	52.6	1500	10
HMYDJ-25/150	25	150	167	380	65.7	1500	10
HMYDJ-30/150	30	150	200	380	79	1500	10
HMYDJ-50/150	50	150	333	380	132	1500	10
HMYDJ-100/150	100	150	667	380	263	1500	10
HMYDJ-50/200	50	200	250	380	132	2000	10
HMYDJ-100/200	100	200	500	380	263	2000	10
HMYDJ-150/200	150	200	750	380	395	2000	10
HMYDJ-200/200	200	200	1000	380	526	2000	10
HMYDJ-300/200	300	200	1500	380	790	2000	10
HMYDJ-50/300	50	300	167	380	132	3000	10
HMYDJ-100/300	100	300	333	380	263	3000	10
HMYDJ-150/300	150	300	500	380	395	3000	10
HMYDJ-200/300	200	300	667	380	526	3000	10
HMYDJ-300/300	300	300	1000	380	790	3000	10
