High Voltage Hipot Test System AC/DC Dielectric Test Sets

HMYDJ-500KV High Voltage Hipot Test System AC/DC Dielectric Test Sets

(106 Reviews)

Applications:

High Voltage Hipot Test System AC/DC Dielectric Test Sets is mainly used for high-voltage insulation testing and high-voltage withstand voltage testing to verify the insulation performance and withstand voltage ability of equipment or products in high-voltage environments. This type of system is commonly used in the power industry, electrical equipment manufacturing industry, power equipment testing centers, and other fields to test the insulation performance and voltage resistance of high-voltage electrical equipment such as transformers, insulators, switchgear, cables, etc.

High Voltage Hipot Test System AC/DC Dielectric Test Sets

Strictly FAT Test
Third-party Calibration

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile:

The High Voltage Hipot Test System AC/DC Dielectric Test Sets is mainly used for high-voltage insulation testing and high-voltage withstand voltage testing to verify the insulation performance and withstand voltage ability of equipment or products in high-voltage environments.
This type of system is commonly used in the power industry, electrical equipment manufacturing industry, power equipment testing centers, and other fields to test the insulation performance and voltage resistance of high-voltage electrical equipment such as transformers, insulators, switchgear, cables, etc. By conducting tests on high-voltage transformer systems, it is possible to ensure the safety and reliability of equipment or products in high-voltage environments, as well as compliance with relevant technical standards and regulations.

Features:

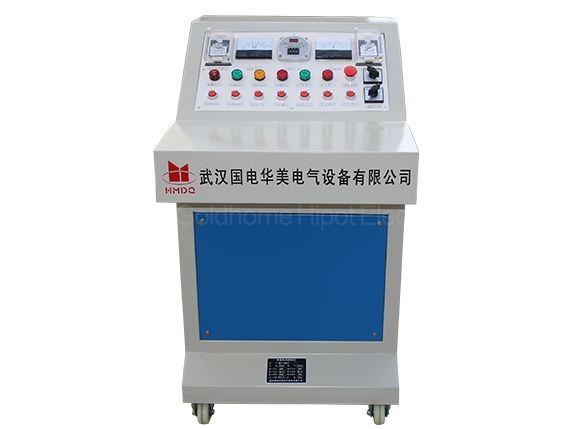

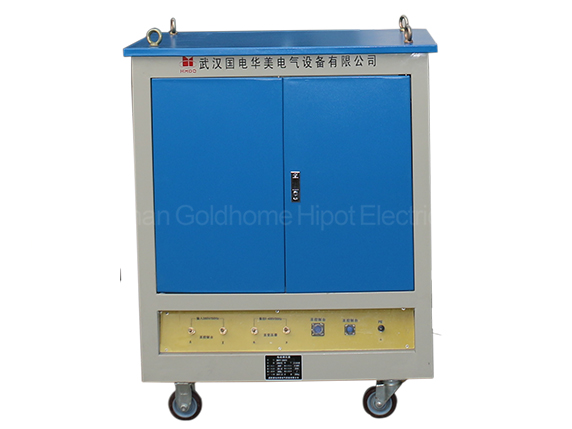

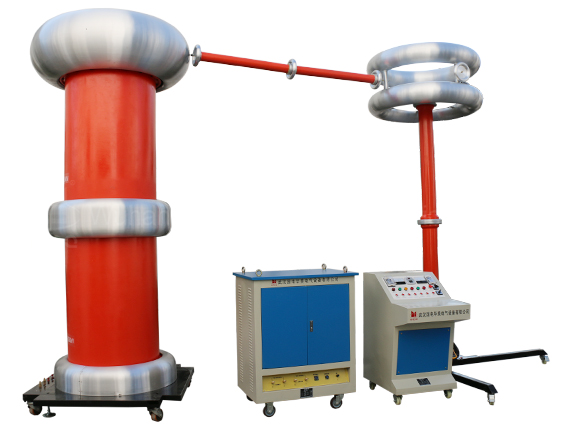

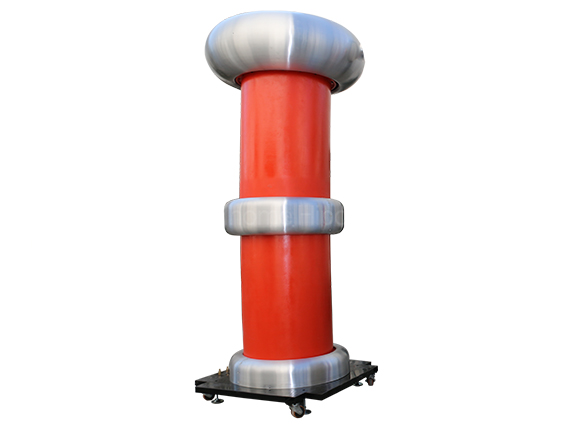

High Voltage Hipot Test System AC/DC Dielectric Test Sets usually consists of high voltage transformer,low voltage transformer,high voltage switch,control system,etc.,which can provide high voltage power for equipment or electrical product high voltage testing.
The high-voltage test transformer system can provide a high voltage output of up to hundreds of kilovolts,which can meet the high-voltage testing needs of various equipment and products.
The system has high safety performance and adopts multiple safety protection devices to ensure the safety of operators and equipment.
The high-voltage test transformer system has high stability and reliability,and can stably output high-voltage power for a long time,ensuring the accuracy and reliability of testing.
The system has a high level of intelligence and adopts advanced control systems and monitoring equipment,which can achieve remote control and monitoring,improve the convenience and efficiency of operation.
The high-voltage test transformer system has a small volume and weight,which is easy to install and move,and can adapt to the testing needs of different places and environments.

Parameter:

Model*	Capacitance(kVA)	Voltage(kV)	Current(mA)	Input		Ratio	Temperature Rise℃(30min)
Model*	Capacitance(kVA)	Voltage(kV)	Current(mA)	Voltage(V)	Current(A)	Ratio	Temperature Rise℃(30min)
HMYDJ-1.5/50	1.5	50	30	200	7.5	500	10
HMYDJ-3/50	3	50	60	200	15	500	10
HMYDJ-5/50	5	50	100	200	25	500	10
HMYDJ-10/50	10	50	200	200	50	500	10
HMYDJ-20/50	20	50	400	380	52.6	500	10
HMYDJ-30/50	30	50	600	380	79	500	10
HMYDJ-50/50	50	50	1000	380	132	500	10
HMYDJ-5/100	5	100	50	200	25	1000	10
HMYDJ-10/100	10	100	100	200	50	1000	10
HMYDJ-20/100	20	100	200	380	52.6	1000	10
HMYDJ-30/100	30	100	300	380	79	1000	10
HMYDJ-50/100	50	100	500	380	132	1000	10
HMYDJ-15/150	15	150	100	380	39.5	1500	10
HMYDJ-20/150	20	150	133	380	52.6	1500	10
HMYDJ-25/150	25	150	167	380	65.7	1500	10
HMYDJ-30/150	30	150	200	380	79	1500	10
HMYDJ-50/150	50	150	333	380	132	1500	10
HMYDJ-100/150	100	150	667	380	263	1500	10
HMYDJ-50/200	50	200	250	380	132	2000	10
HMYDJ-100/200	100	200	500	380	263	2000	10
HMYDJ-150/200	150	200	750	380	395	2000	10
HMYDJ-200/200	200	200	1000	380	526	2000	10
HMYDJ-300/200	300	200	1500	380	790	2000	10
HMYDJ-50/300	50	300	167	380	132	3000	10
HMYDJ-100/300	100	300	333	380	263	3000	10
HMYDJ-150/300	150	300	500	380	395	3000	10
HMYDJ-200/300	200	300	667	380	526	3000	10
HMYDJ-300/300	300	300	1000	380	790	3000	10
