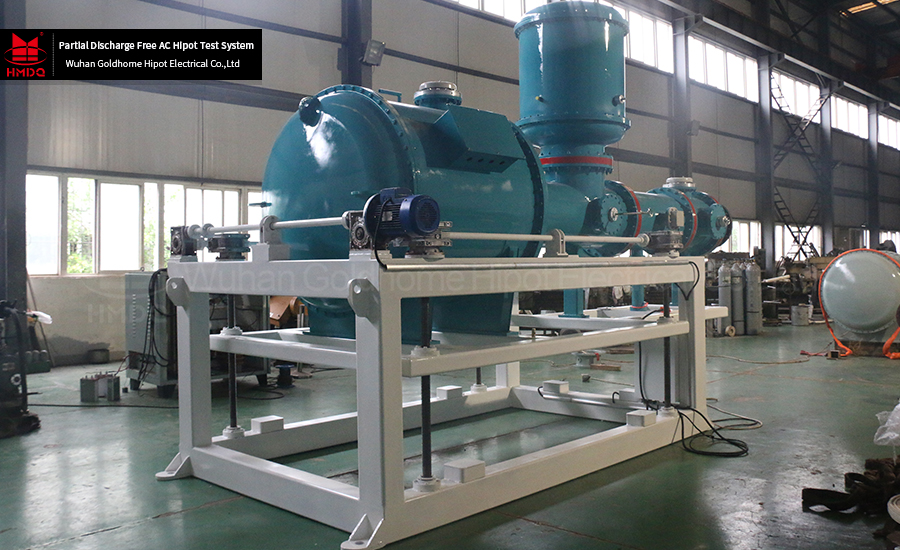

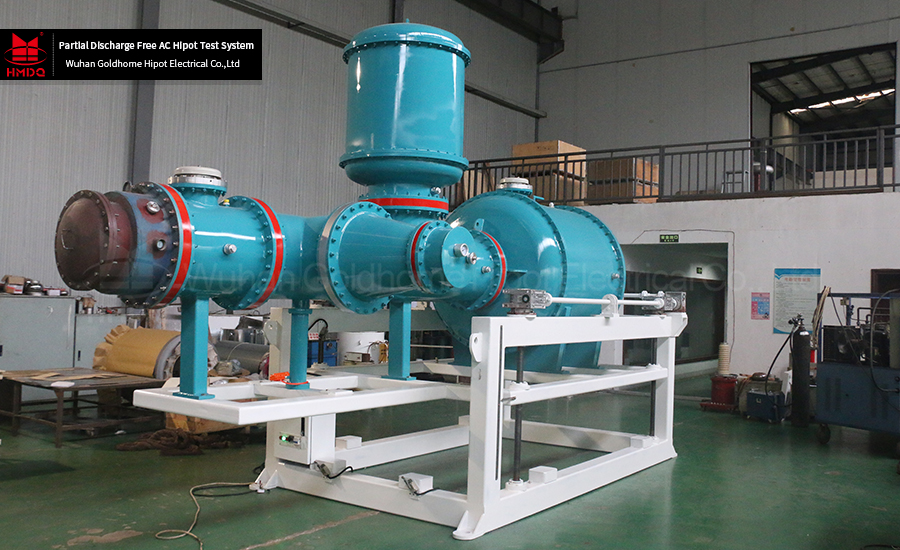

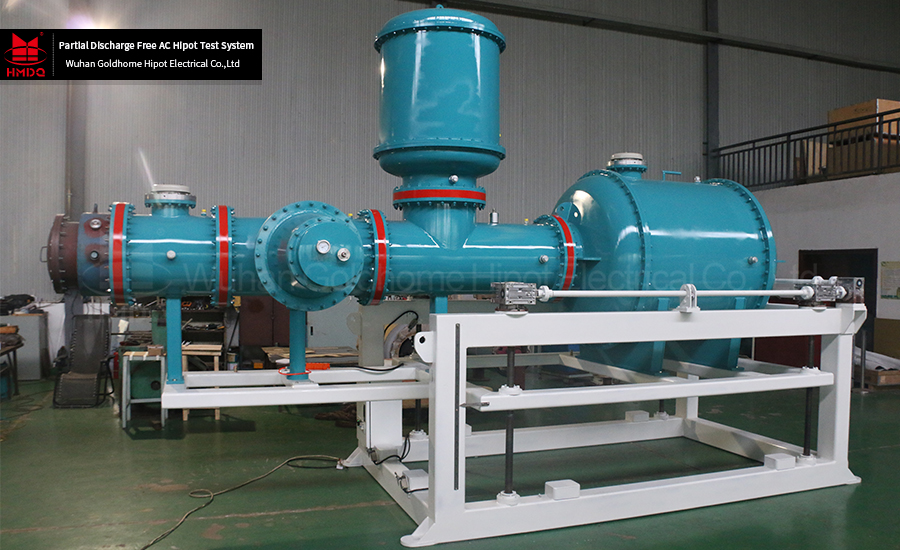

SF6 Gas-Insulated HVAC Test-Transformer Systems with Partial Discharge for GIS/GIL

SF6 Gas-Insulated HVAC Test-Transformer Systems with Partial Discharge for GIS/GIL

(106 Reviews)

Applications:

SF6 gas insulated transformer HV AC test systems are widely used for factory testing of GIS and their metal-clad components, especially instrument transformers, and for on-site testing as well. The transformer is designed as a GIS model and is therefore ideal for testing GIS/GIL components and switchgears.

Strictly FAT Test
Third-party Calibration

Response within
24 hours
Free warranty
12 month
On-line training
Support

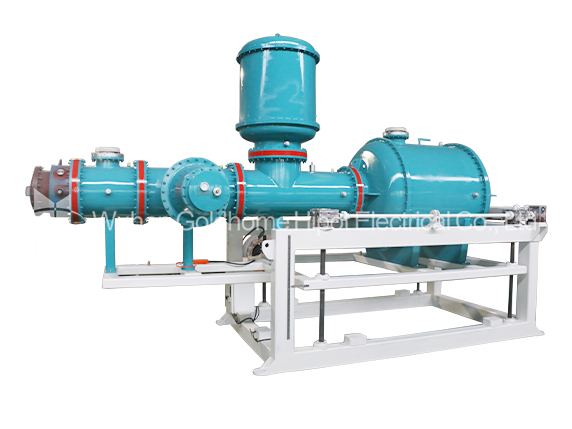

Profile:

SF6 gas-insulated HV AC test systems are widely used for factory testing of GIS and their metal-clad components,especially instrument transformers,and for on-site testing as well.
They are metal-clad encapsulated,can be directly flanged to test object,so test system and test object are fully encapsulated.This allows a space saving test setup without safety clearances between test system or test object and walls or other objects.
The test system and test object become a closed system with a low PD background noise level when directly flanged.This feature makes the model ideally suited for sensitive PD measurements.
In factory,these systems allow to test sub-assemblies and components directly in the manufacturing line,thus avoiding transportation to a central test facility,and extra handling.
Furthermore they can also be used for AC voltage test of other HV apparatus when equipped with output bushing.
Compared to conventional oil insulated AC test systems,they are lighter and smaller,only about 1/6 height and 1/7 weight,also the merits of encapsulation remain effective during tests which is essential for PD testing.

Features:

High voltage is fully sealed in a shielded space,ensuring safe and reliable experiments.
The overall partial discharge can be controlled within 1-3 pc.
It has a small volume,occupying the minimum space and lightweight components.
Built-in high voltage isolation switch enables multi-purpose use.
Easy to connect,directly connected to the test sample,making experiments more convenient.
Capable of withstanding long-distance transportation with a sturdy and durable structure.
Reduced requirements for system power capacity.

Parameter:

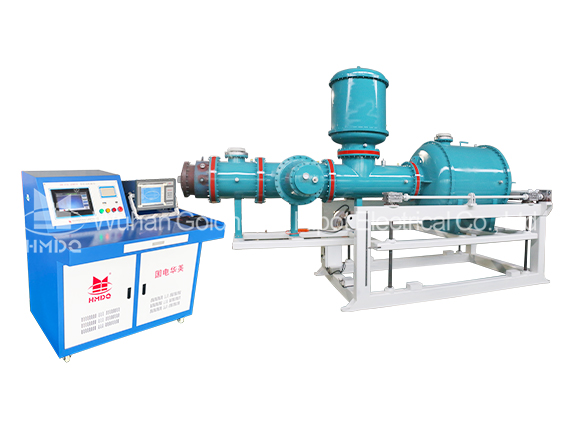

system components:

Regulating transformer
Power line filter
Compensating reactor
Low voltage protection unit (included in systems rated 510 kV or higher)
Test transformer
Control system for factory tests

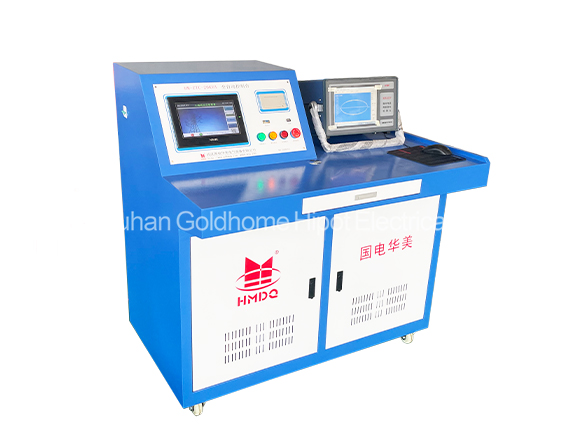

Regulating cubicle with control panel for on-site tests

Available Options:

Encapsulated coupling capacitor
SF6-air bushing and various connection or adaptation flanges between test
transformer & bushing & coupling capacitor & test object.
Specific base frames or containers for on-site testing.
Encapsulated standard capacitor
Control system
HV and grounding connections if bushing is used. The connection to test object is usually not included.
Partial Discharge detectors
Capacitance and power loss factor measuring bridges
Other devices upon request.

Overall parameters:

Voltage levels:100kV,200kV,250kV,300kV,500kV,800kV,1000kV.
Capacity:50-2000kVA
Methods of high voltage generation:High voltage transformer boosting and series resonance(power frequency,variable frequency),all boosting methods are single-stage boosting without cascade boosting.
Input voltage(primary voltage):0.35-10kV
Partial discharge amount of equipment:1-3 pc under rated voltage(normal environment)
Temperature rise:The temperature rise does not exceed 65k when the rated current operates for 60 minutes(50Hz).
