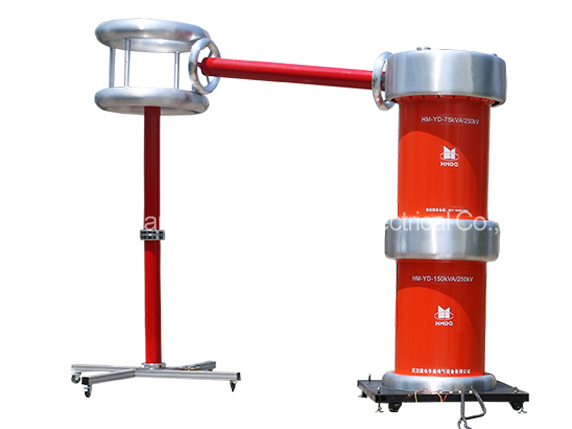

Pd-free AC High-Voltage Test Set (Oil Immersed Type)
Applications:
A PD-free AC high-voltage test set is a piece of equipment used to test the insulation of high-voltage electrical equipment. PD stands for partial discharge, which is a phenomenon that can occur in insulation materials when subjected to high voltage. A PD-free test set is designed to minimize or eliminate the occurrence of partial discharge during testing, ensuring accurate and reliable results.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
Pd-free AC High-Voltage Test Set (Oil Immersed Type) is used for or partial discharge and power frequency withstand test , checking the insulation level of power-frequency voltage for all kinds of insulation materials and electric products, which is widely used in electric products manufactures, electric power operation departments, scientific research institutions, colleges & universities.It is a necessary equipment for all walks of high voltage testing.
Features:
- No partial discharge epoxy insulation cylinder with small partial discharge.
- Low impedance voltage, better than the national standard.

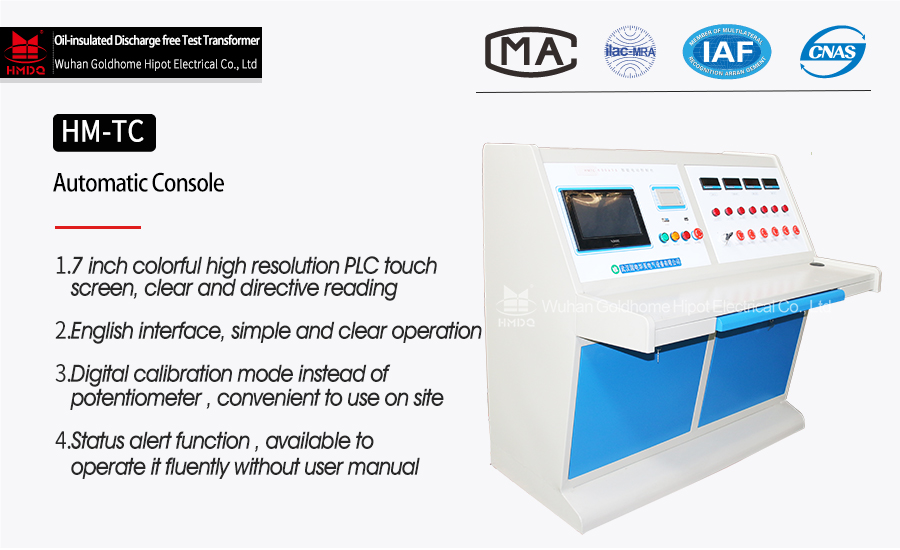

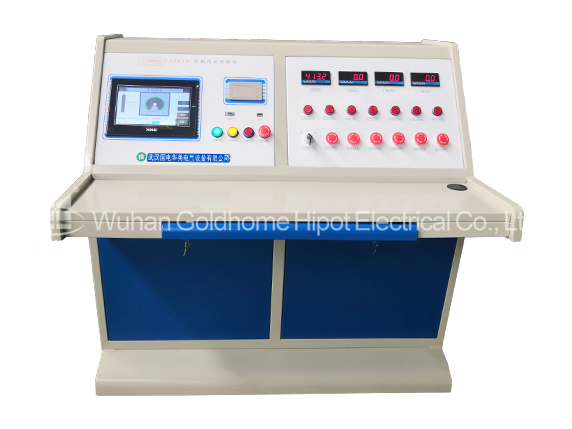

- Automatic control technology, high degree of automation, strong anti-interference ability.
- With fast electronic protection device, high reliability.different test object requirements. Multifunctional ,cost effective.
- Wide series of capacitance & perfect in functions & simple operation
- Partial discharge figure and data can be saved and printed out, automatically generating test report
Parameter:
- Rated Capacity: 5-1000 kVA
- Output Voltage: 0-1000 kV
- Output Voltage waveform: power frequency sine wave
- Input voltage: AC 220V/380V
- Partial discharge volume: ≤5PC under rated voltage
- No load loss: 0.2%-0.35%

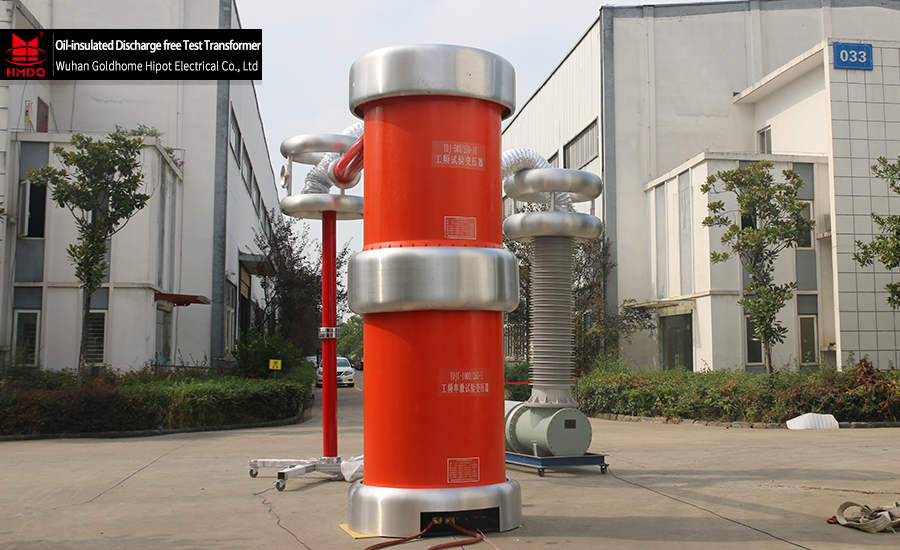

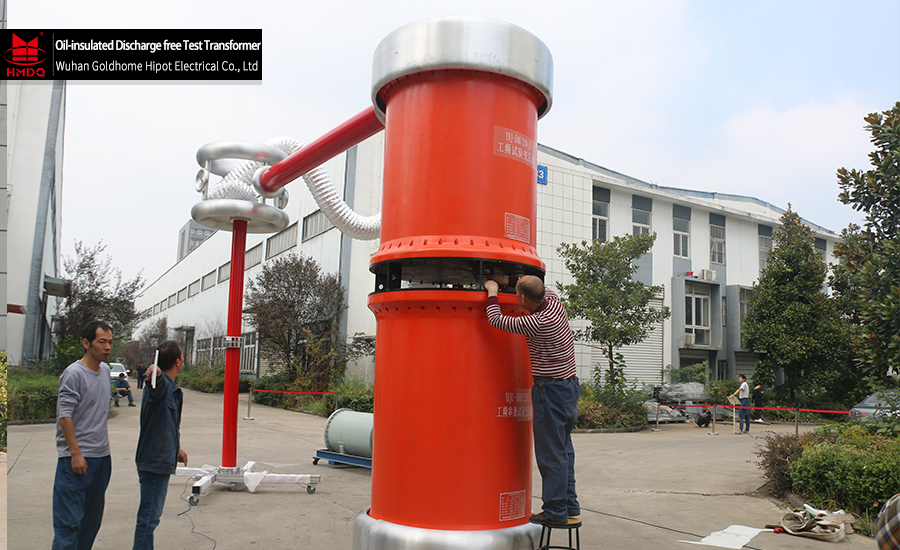

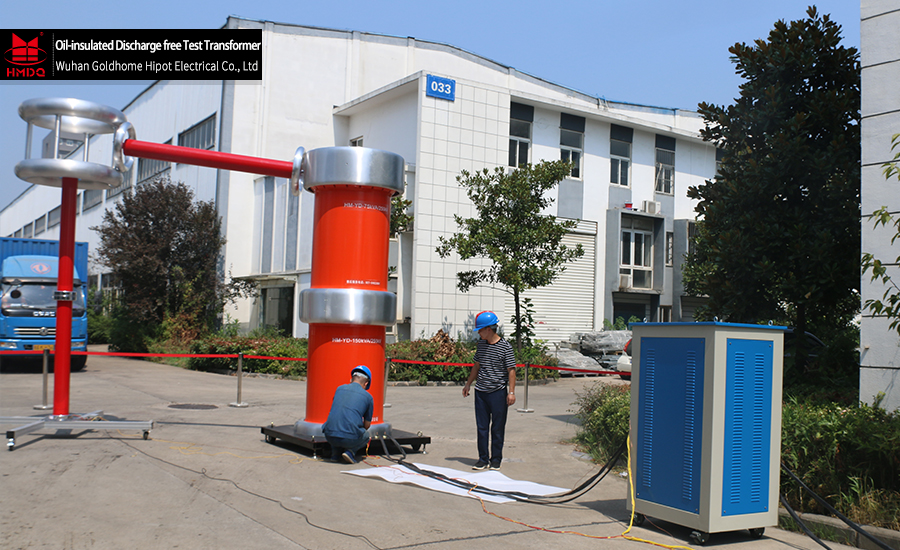

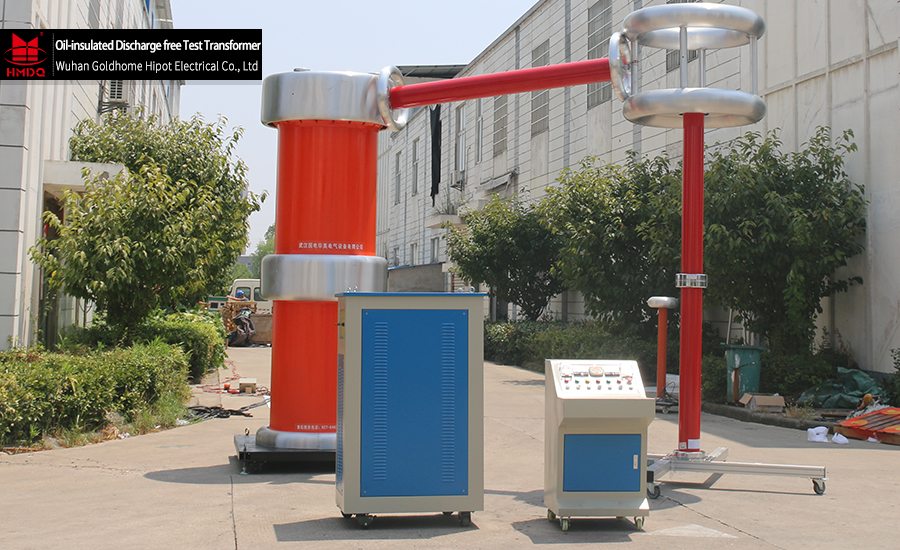

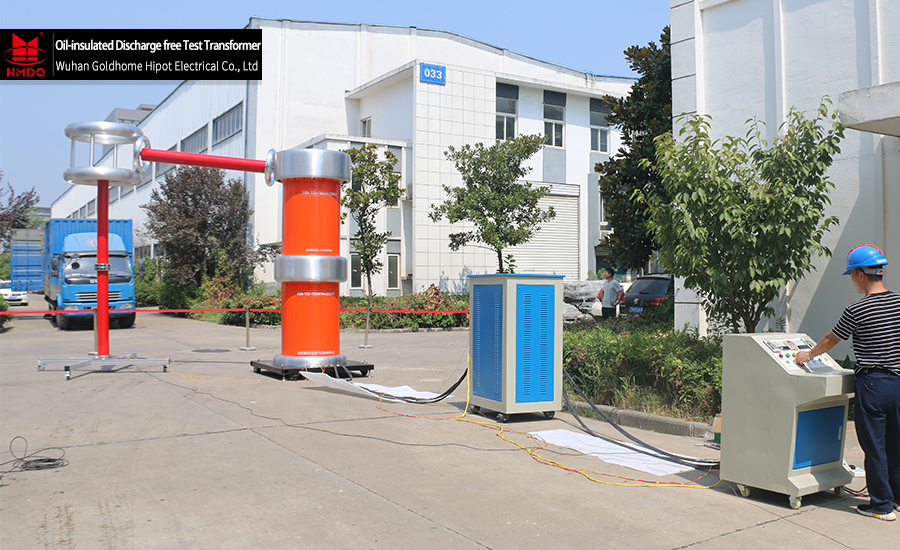

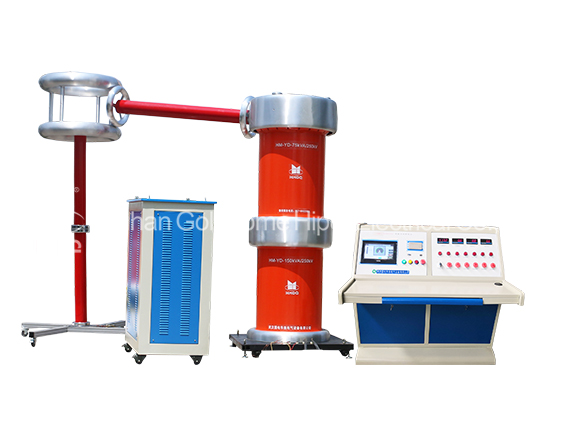

Pictures:
