Pd-free Power frequency AC High-Voltage Test System filled with SF6 Gas

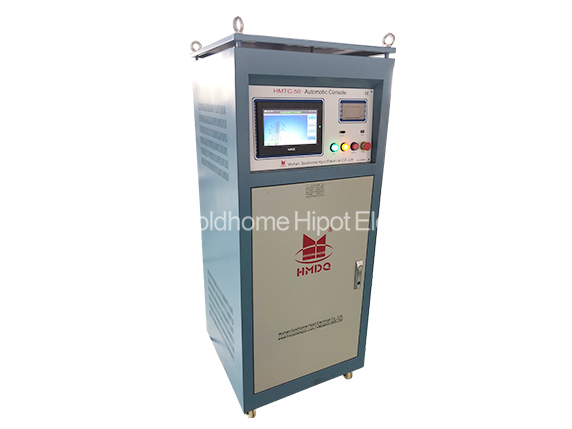

Applications:
It is used to test equipment including but not limited to: transformers, generators, cables, switchgear, circuit breakers, insulators, power capacitors, power reactors, motors, electrical insulation materials and other equipment
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
Pd-free Power frequency AC High-Voltage Test System filled with SF6 Gas is mainly used for power frequency voltage insulation test of insulation materials, power products ect. If s also used as power supply for non partial discharge power frequency withstand test, current transformer, lightning arrester etc..
Features:
- With compact size and light weight( 40%-65% lighterthan same oil immersed test transformer in same level).
- Clean, no oil stain, no need maintainance .
- Not impacted by the harsh climate and environment, no need static to do test after movement.
- Insulation strength of gas-filled test transformer is obviously higher than the oil immersed test transformer, with minimal corona.
- PD level can be controlled within 5pC at rated output .
Parameter:

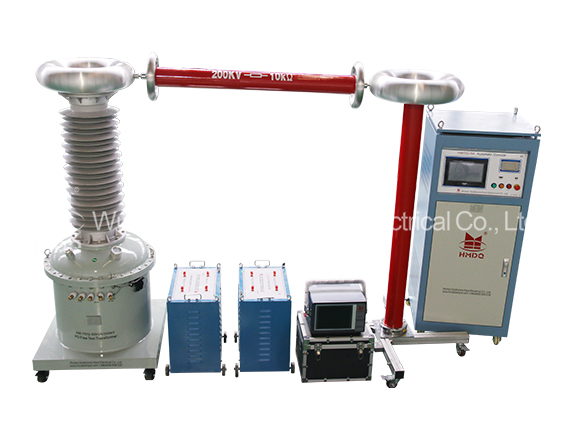

Main configuration including :
1. Power Noisy Filter
2. Console
3. Isolation Transformer

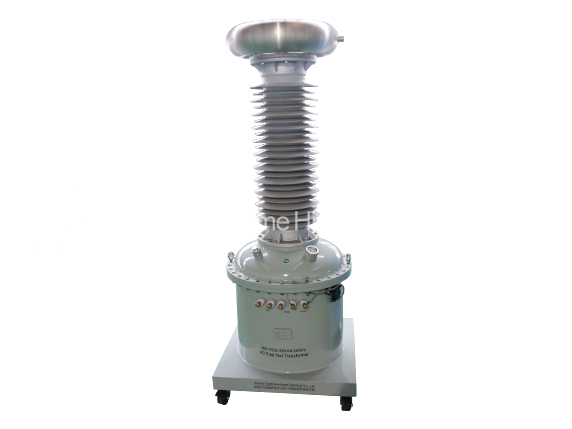

4. PD free SF6-insulated Test Transformer
5. Current Limit Resistor

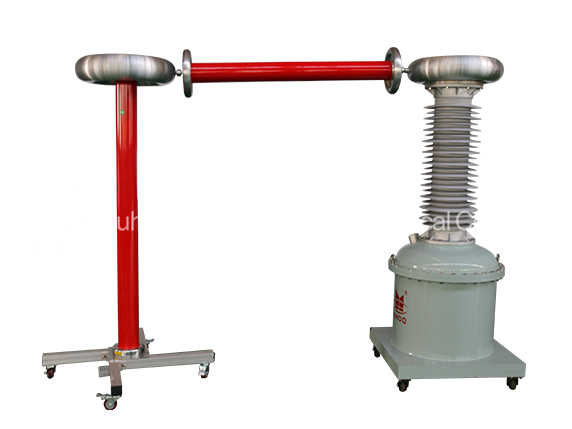

6. Capacitive Voltage Divider
The capacity can be customized from 5kVA to 600kVA
The test voltage can be customized from 50kV 600kV
1. Power Noisy Filter
2. Console
3. Isolation Transformer
4. PD free SF6-insulated Test Transformer
5. Current Limit Resistor
6. Capacitive Voltage Divider
The capacity can be customized from 5kVA to 600kVA
The test voltage can be customized from 50kV 600kV
