PD-free HV AC Test Sets
Applications:
HV AC Test Sets are used for dielectric proof tests on high voltage components – according to IEC and IEEE/ANSI standards – such as distribution transformers, instrument transformers, switchgear, bushings, motors, cable terminations, and much more
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
The HV AC Test Sets can be combined with our highly accurate measuring instruments to perform additional tests like partial discharges or tan delta / power factor. If combined with a PD detector the PD free option guarantees < 1 pC to test up to the highest standards or customer requirements.
Features:
- Fulfils IEC, IEEE/ANSI and other relevant national standards
- Highest industrial Safety Integrity Level SIL 3 (ISO 61508) certified
- All in one solution from a single supplier
- HV AC control unit with Windows based HMDQ CaMS user interface
- Single communications cable between the test system and the control computer, fiber optic optional
- Tank type oil isolated HV transformer with capacitive bushing, temperature indicator, and dehydrated breather
- Fastest and most reliable electronic flash detection
- PD free (option)
- Upgradeable with Partial Discharge and Tan Delta / Power Factor measurement options
Parameter:
Main configuration including :
- Power Noisy Filter

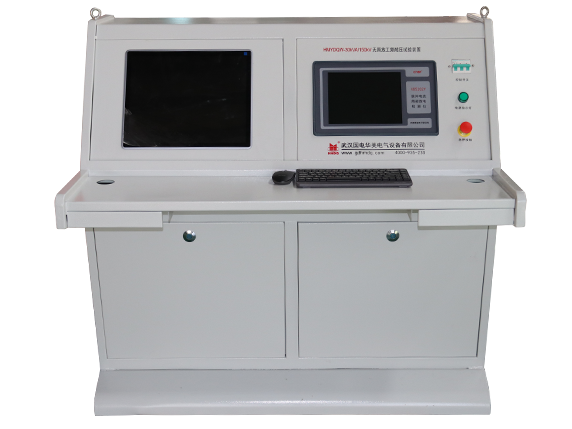

- Console
- Isolation Transformer

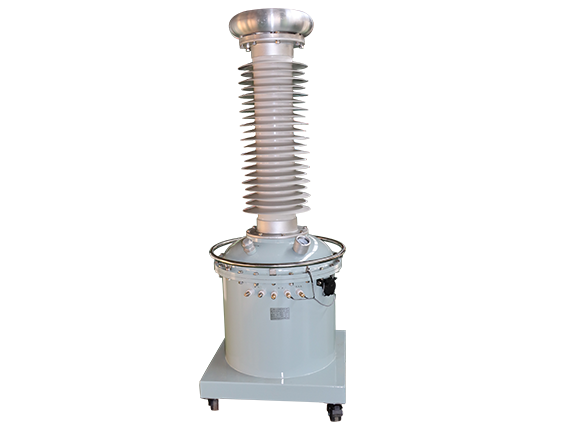

- PD free SF6-insulated Test Transformer
- Current Limit Resistor
- Capacitive Voltage Divider
- The capacity can be customized from 5kVA to 600kVA
- The test voltage can be customized from 50kV to 600kV
