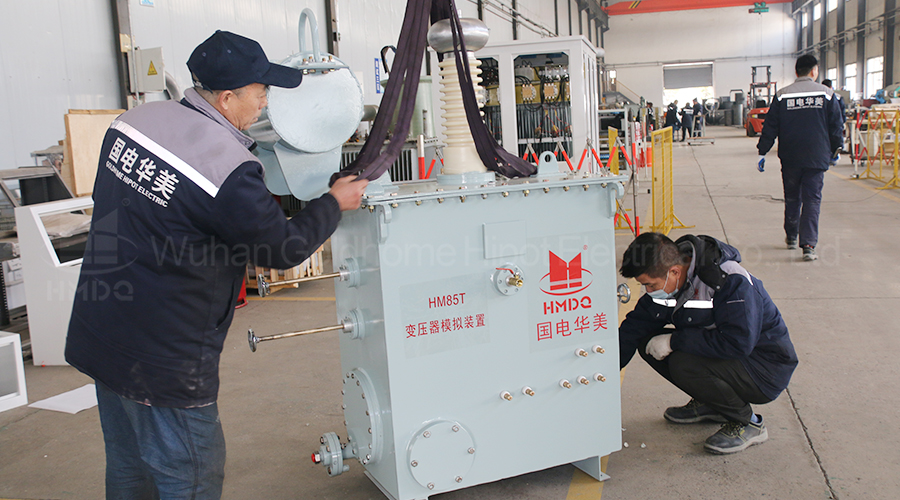

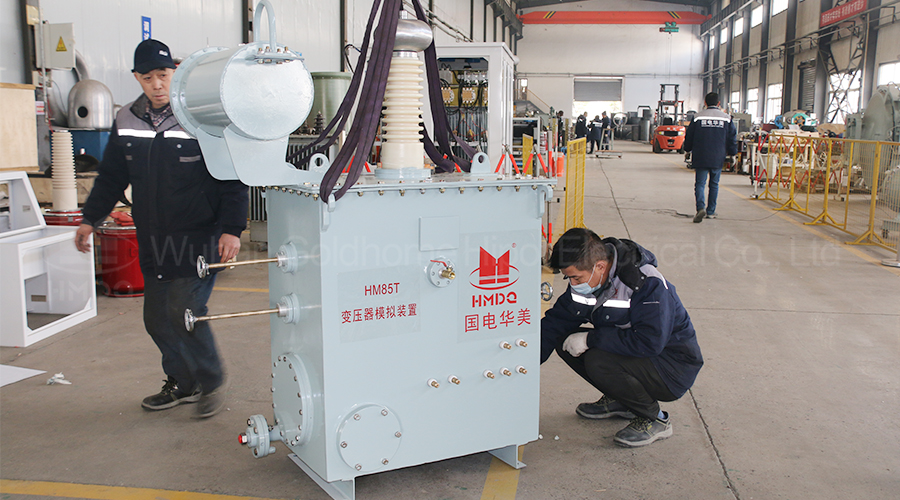

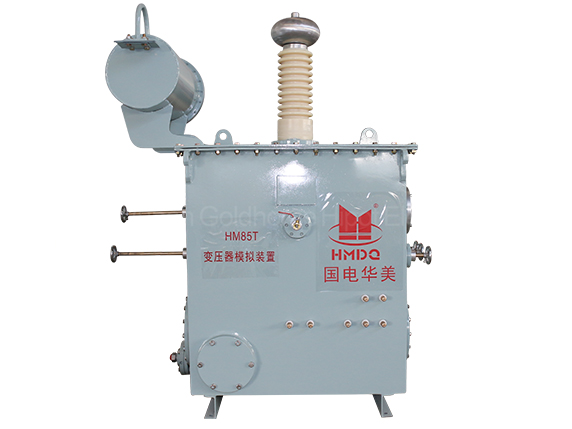

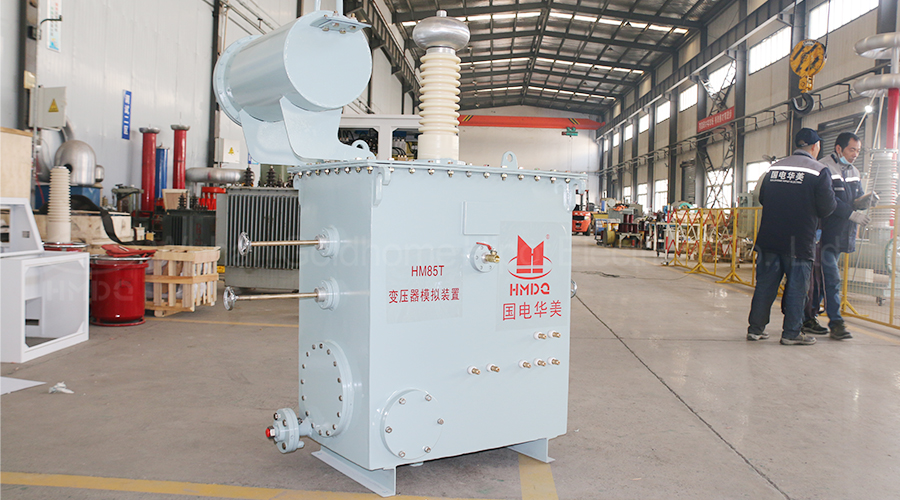

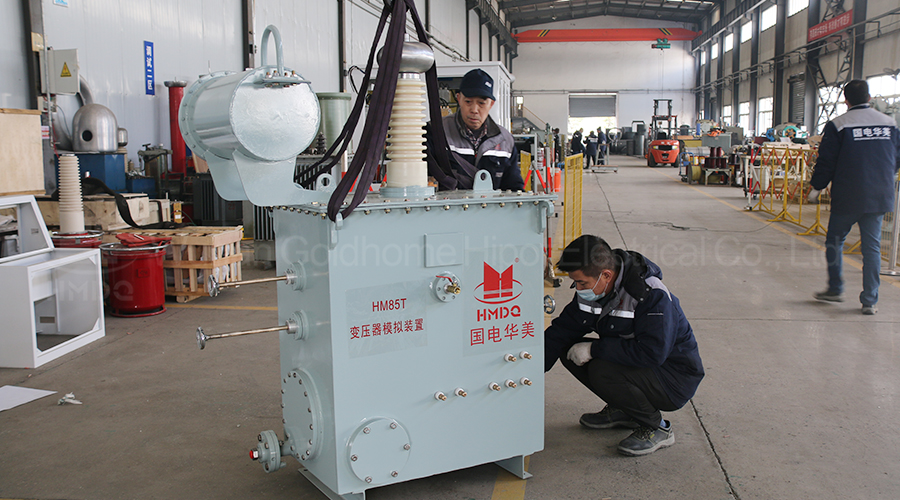

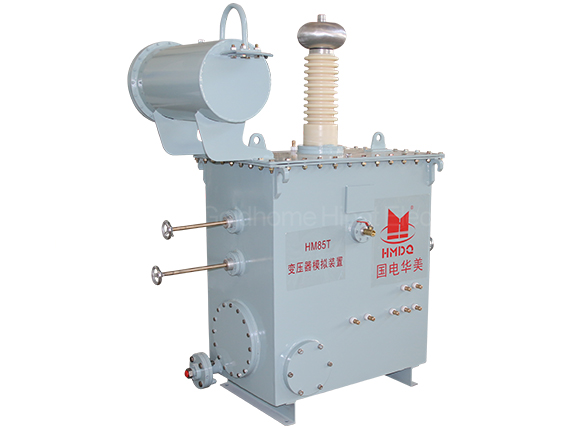

HM85T Insulation Defects Simulation and Signal Characteristics Analysis System of Transformer Partial Discharge

The transformer partial discharge fault simulation test device is an experimental equipment used to simulate transformer partial discharge faults, usually including the following components:
1. Simulated discharge source: Used to generate signals of partial discharge in simulated transformers, usually using high-voltage pulses or high-frequency discharge sources.
2. Discharge detection system: used to detect and record analog discharge signals, usually including discharge probes, discharge signal collectors, and data recorders.
3. Control system: Used to control the parameters of simulated discharge experiments, including the output power of the discharge source, discharge mode, discharge duration, etc.
4. Safety protection system: used to protect the safety of experimental personnel and equipment, including overvoltage protection, overcurrent protection, leakage protection, etc.
Through this device, simulation experiments can be conducted on transformer partial discharge faults, helping engineers and researchers understand the discharge characteristics of transformers and prevent and solve transformer partial discharge faults in advance.
