HMCD SF6 Gas Purity Analyzer
Applications:
The SF6 gas purity analyzer is mainly used to measure the analysis on SF6 gas purity (volume/mass percentage) in SF6 and air, SF6 and N2 gas mixtures.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
SF6 gas purity analyzer adopts constant temperature and adiabatic design, which can reduce the influence of sample temperature and ambient humidity, and improve the measurement accuracy.Mainly used for measuring SF6 gas purity (volume/mass percentage) of SF6 and air, SF6 and N2 gas mixture, the same reason, this series of products can also be used for other kinds of gas purity measurement, such as H2 and N2, etc. (For other kinds of gas purity measurement, need to inform the type of gas mixture before purchase). SF6 gas purity analyzer can be widely used in electric power, chemical industry, metallurgy, steel, gas industry and other fields, for the analysis of gas purity.
Features:
- Long life detection components.
- High accuracy and good repeatability.
- Built-in pressure regulator valve and electronic flowmeter.
- The measurement results are not affected by the ambient temperature.
- Measurement response speed is fast.
- Color touch screen control and graphical interface make operation easier.
Parameter:
- Purity Measurement range: 0 to 100%
- Measuring accuracy :±0.5% (±0.2% within a certain range)
- Resolution: 0.01%
- Sample gas flowrate: 0.2 + / - 30% L/min
- Sample gas pressure: 10 or less bar
- Response time: 30 s or less
- Environmental conditions Temperature: -20℃ ~ +50℃
- Humidity: 5 ~ 95% RH
- Working power supply: Lithium battery power supply, 100 ~ 240AC, 50/60HZ AC/DC dual use
- Size: 414*333*177mm
- Weight: 3Kg

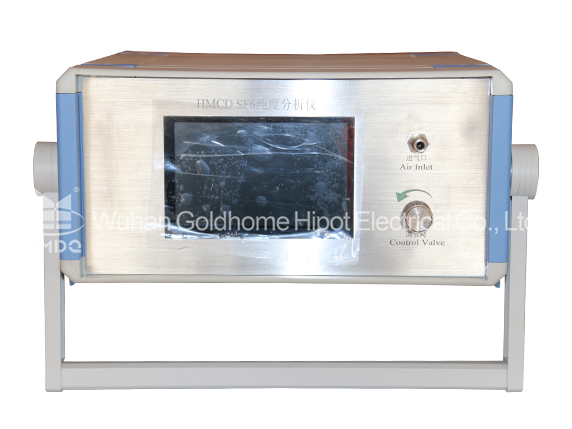

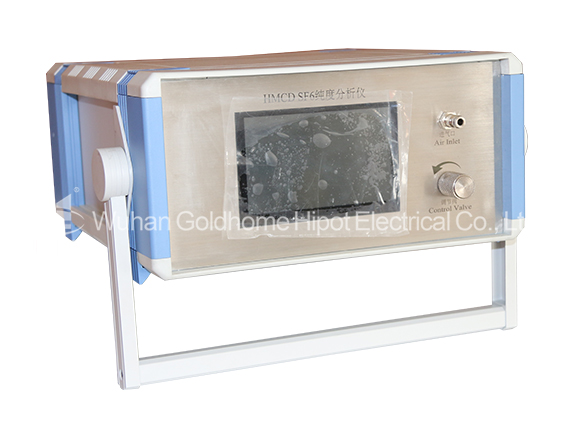

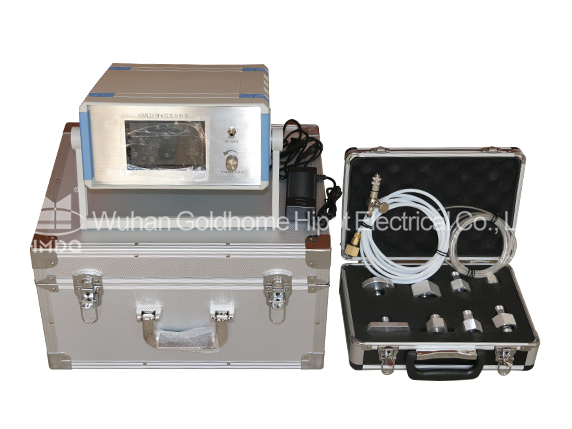

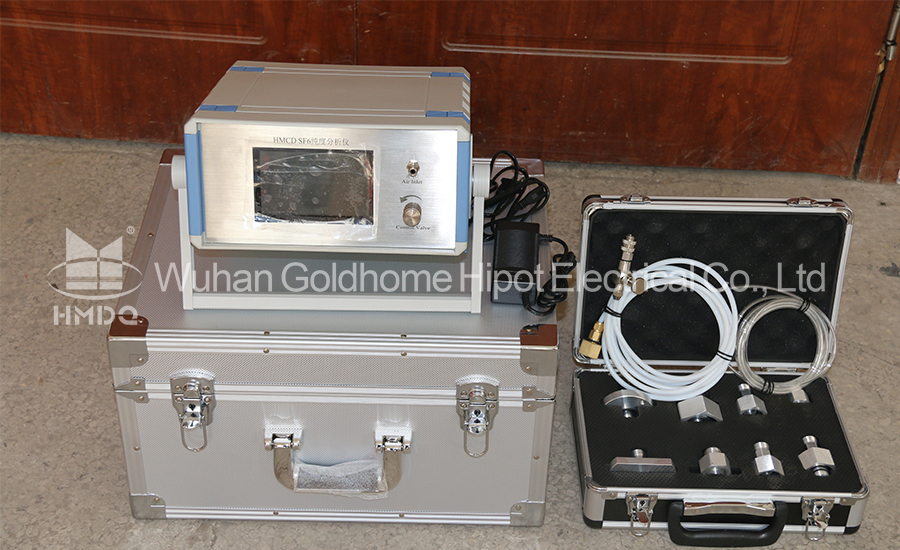

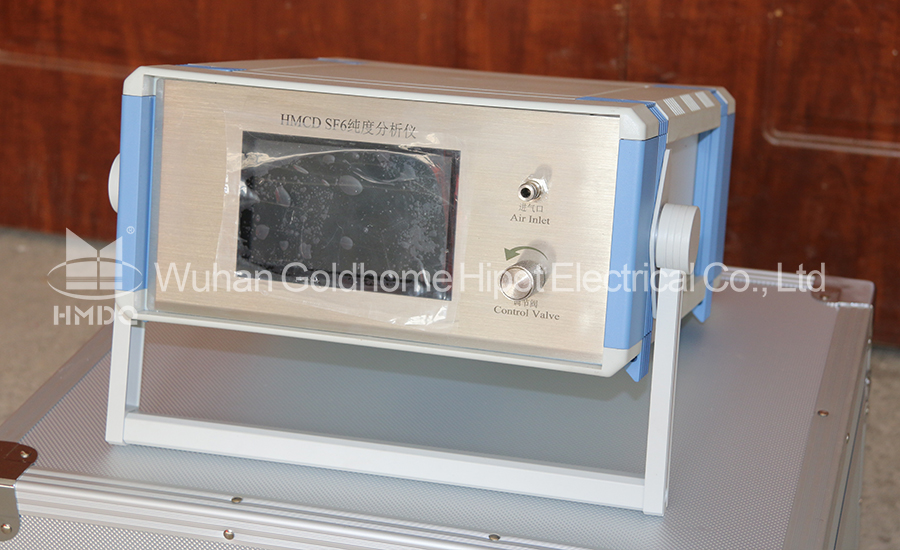

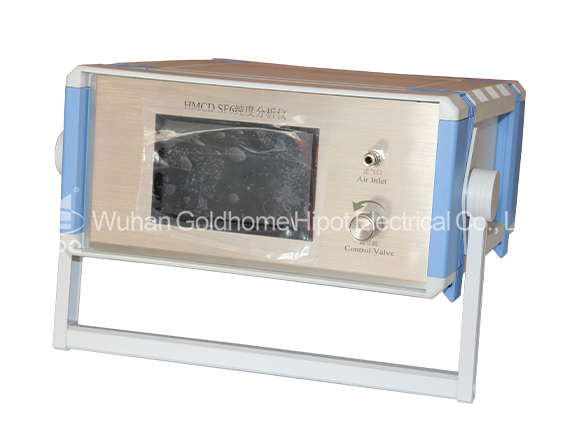

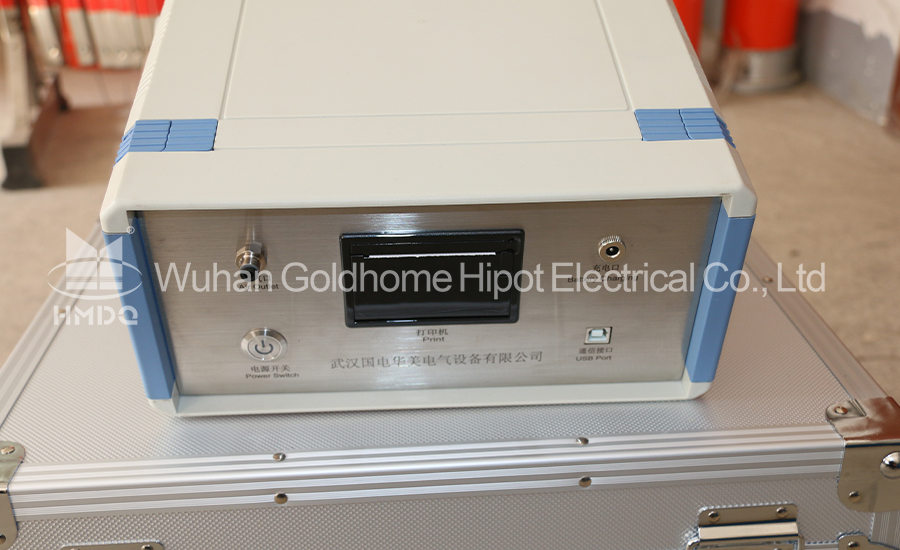

Pictures:
