HMZH-5 SF6 Analyzer
Applications:
The SF6 gas analyzer is mainly used to measure the purity (percentage content) of SF6 gas in the mixture of SF6 and air, SF6 and N2, and to check the purity (percentage content) of SF6 gas in SF6 equipment (cables, switches). It can also be used in applications with several background gases (special requirements need to be specified).
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
SF6 comprehensive analyzer is specially used for index detection of insulating gas in SF6 electrical equipment, and adopts the high-performance sensor for measurement of dew point, purity and decomposition product to guarantee the accurate and stable test results. Equipped with the unique gas circuit structure, it adopts the high-precision electronic flowmeter for full-automatic detection so that the SF6 can be more accurate in gas analysis. Three indexes can be detected via one-time measurement, which greatly reduces the workload of users and improves the work efficiency
Features:
- Dual-channel flow control design without fear of pressure fluctuation
- Utilizationþf high-precision electronic flowmeter,with flow overruns prompt
- Switch of trends of measuring objects,and real-time display of data
- Self-calibration function of zero and slope after startup
- Crossing-resistance interference technology of sensor
- Cleaning of residual gas in air circuit
- Lithium battery with ultra-large capacity,and dual purpose of AC/DC
- Large-capacity data storage,and USDB one-key data export
- Thermosensitive mute printer for rapid printing on the scene
Parameter:
SF6 gas decomposition product detection module
| Measurement scope | [SO2]0～100 µl/l， [H2S]0～100 µl/l, [CO]0～1000 µl/l |
| Precision | SO2, H2S: ±0.5µl/l if measurement value ≤10 µl/l; ±5% if measurement value ＞10 µl/l CO: ±2.0 if measurement value ≤50 µl/l ±4% if measurement value ＞50 µl/l |
| Repeatability | SO2, H2S: ±0.2 µl/l if measurement value ≤10 µl/l; ±2% if measurement value ＞10 µl/l CO: ±1.5 µl/l if measurement value ≤50 µl/l; ±3% if measurement value ＞50 µl/l |
| Resolution | SO2, H2S, CO: 0.1 µl/l |
| Response time | ≤30s |
| Measurement scope | 0～100% |
| Precision | ≤±0.5% (90～100%:≤±0.2%) |
| Repeatability | ≤±0.2% |
| Resolution | 0.01% |
| Response time | ≤30S |
SF6 humidity detection module
| Dew point range | ―80℃～+20℃ |
| Measurement accuracy | ±0.5℃ |
| Micro-water scope | 0.05～23100 μL/L |
| Measurement response time (+20℃) | -60℃ →20℃ 5S[10s] 20 ℃→-60℃ 10S[300S] |
| Resolution | Dew point: 0.1℃ Micro-water: 0.1ppm (100ppm～1000ppm) 0.01ppm(10ppm～100ppm) |
| Repetition: | ±0.2℃ |
Parameters of whole machine
| Charging source | 220VAC±10% 50HZ |
| Battery | Lithium battery 12V 17.5AH |
| Service time | ＞10h |
| Display screen | 7-inch color touch screen |
| Sample gas pressure | ≤1.0Mpa |
| Size | 467×372×177mm |
| Weight | About 8.5kg |

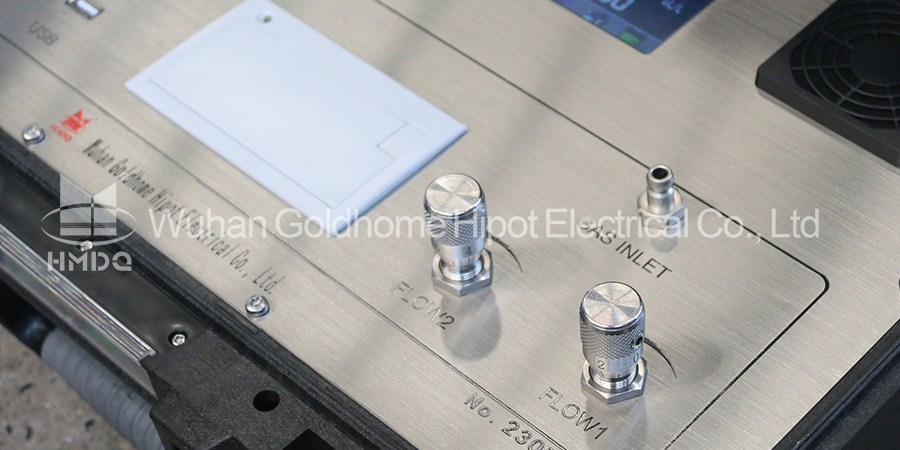

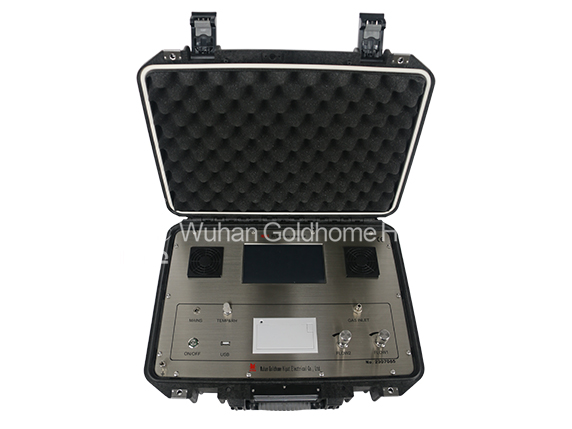

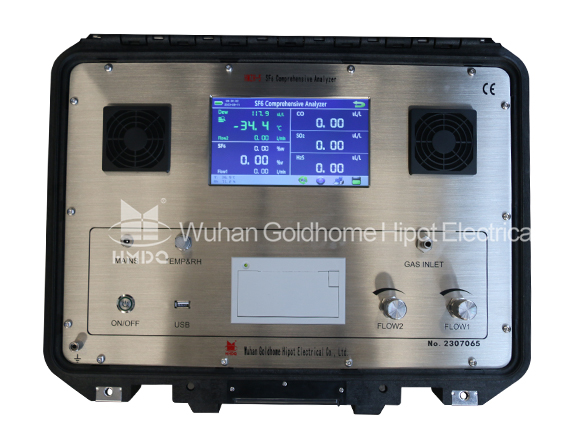

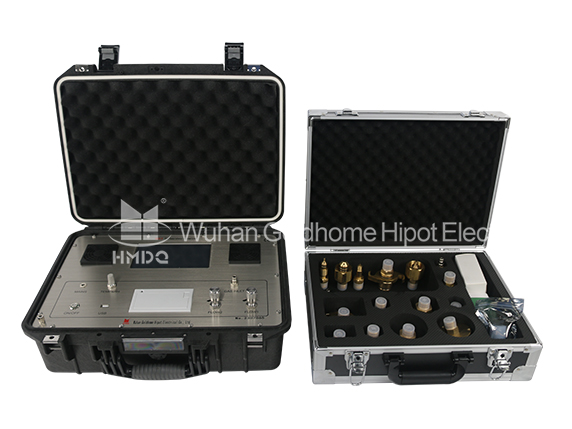

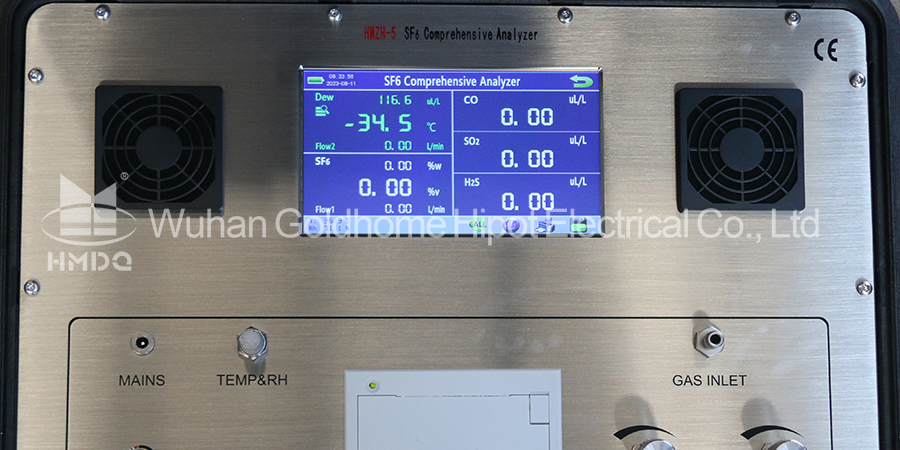

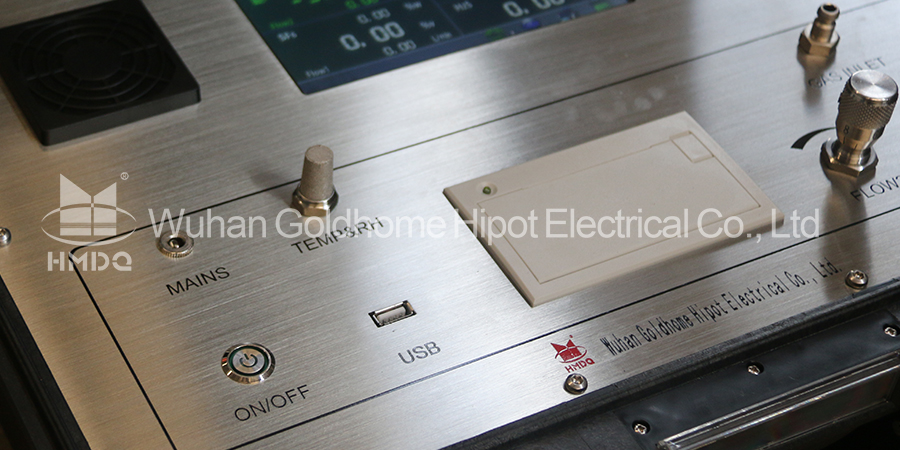

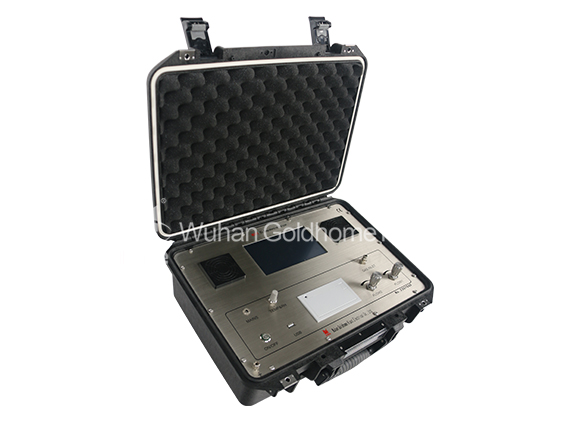

Pictures:
