HM3020X Portable SF6 Gas Leak Detector
Applications:
Portable SF6 Gas Leak Detector is very suitable for power supply departments, installation and maintenance units and power test institutes. It is also very suitable for SF6 high voltage switch factory as a supporting instrument for SF6 electrical equipment and export products, thereby improving the overall product level.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
HM3020X gas detection leak detector is the essence of more than 30 years of leak detector production experience. Recently, a new generation of fully automatic intelligent leak detector launched by a powerful company is the most stable and sensitive leak detector. We have fully considered the actual needs of the majority of users and applied our rich technology and experience to this product, allowing users to enjoy excellent performance price ratio.
Features:
- Microprocessor control, with advanced digital signal processing
- Tricolor visual display
- Seven (7) levels of sensitivity provide an increase of up to 64x
- Tactile keypad controls
- Real time sensitivity adjustment
- Battery test function
- Battery voltage indication
- Certified to SAE J1627 for R134a,R12, R22
- Detects all halogenated refrigerants
- True mechanical pumping provides positive airflow through sensing tip
- Mute feature included
- Cordless and portable,operates on 2 "C"-cell batteries
- Carrying case included
- (35.5cm) flexible, stainless probe
- Optional reference leak source
- One-year warranty
Parameter:
- Power supply: 3V DC; 2 “C” cell alkaline batteries
- Maximum sensitivity: per SAE J1627 rating criteria; certified for R12,R22 and R134a @0.5oz/yr (14gr/yr).
- Ultimate sensitivity: less than 0.1oz/yr (3gr/yr) for all halogen based refrigerants.
- Sensing tip life: approx.20 hours.
- Operating temperature: 30° to 125°F (0° to 52°C).
- Battery life: approximately 30 hours normal use.
- Duty cycle: continuous, no limitation.
- Response time: Instantaneous.
- Reset time: one second.
- Warm up time: approx.2 seconds.
- Unit weight: 1.2 lbs(560 grams).
- Fixed probe length: 14” (35.5cm)

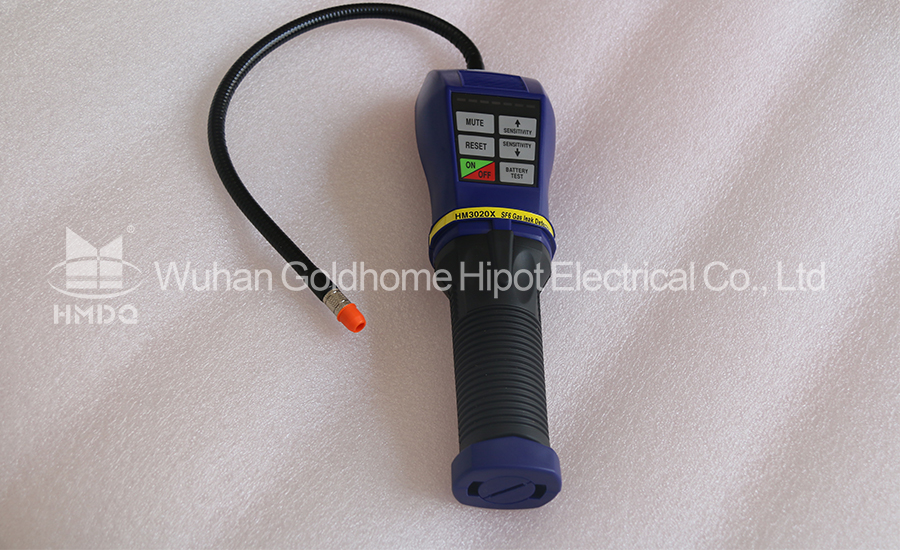

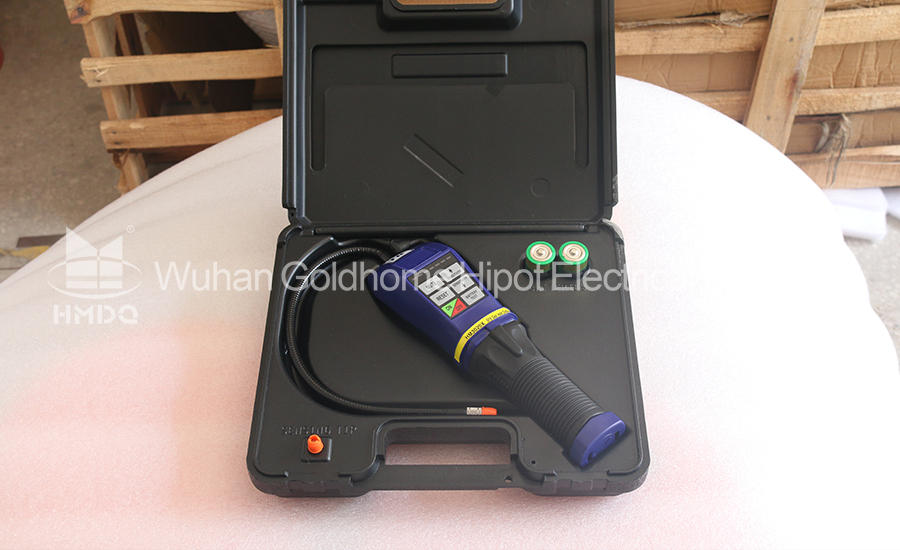

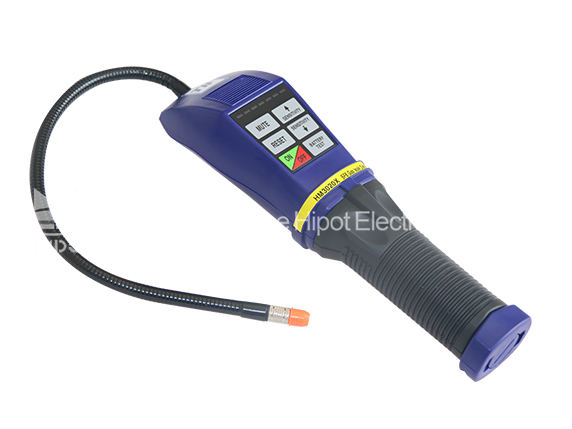

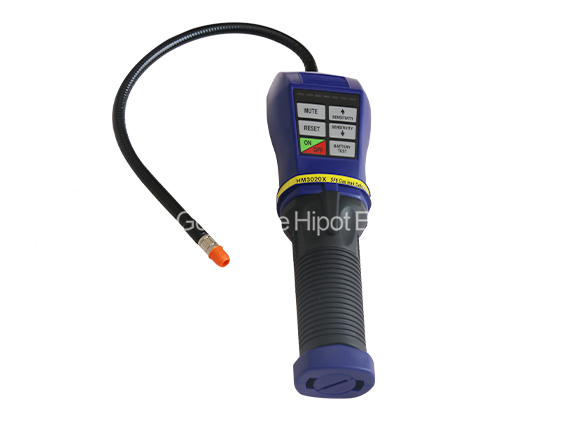

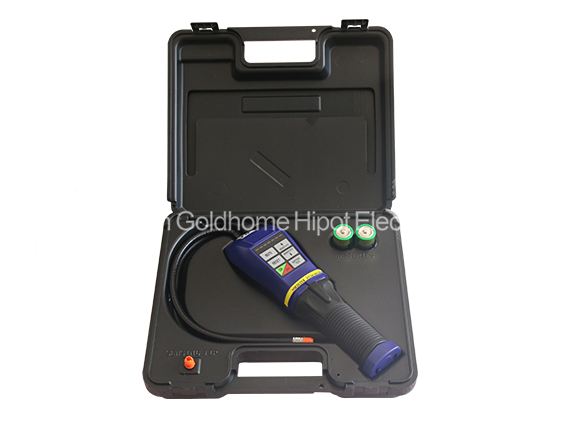

Pictures:
