HMFRC High Voltage Coupling-Capacitive Divider for AC Voltage Measurement or Partial Discharge Measurement
Applications:
A high voltage coupling-capacitive divider is a specialized device used for measuring high voltage AC signals or monitoring partial discharge in electrical systems. It consists of a series of capacitive elements that are designed to divide the high voltage signal into a lower voltage for accurate measurement and monitoring while ensuring the safety of personnel and equipment.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
Voltage divider is a special instrument for high voltage measurement,which can measure both dc high voltage and power frequency AC high voltage.

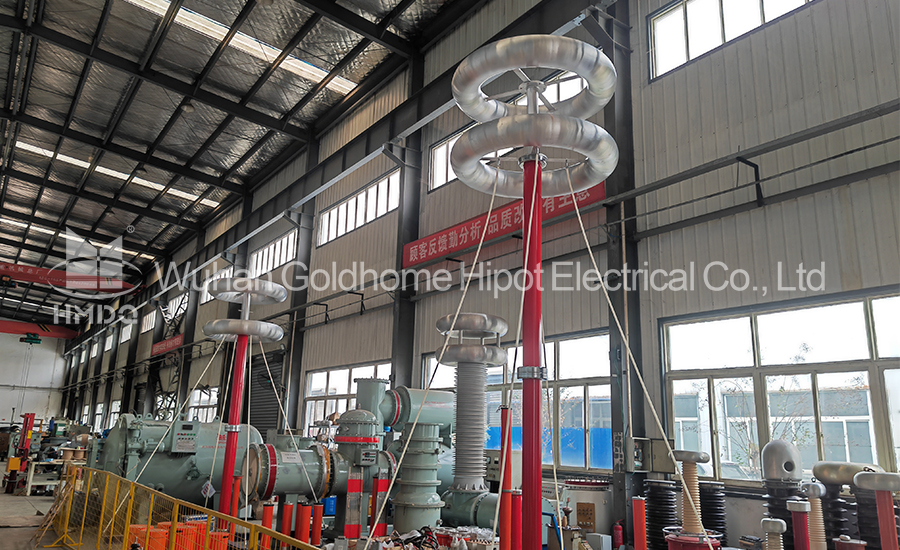

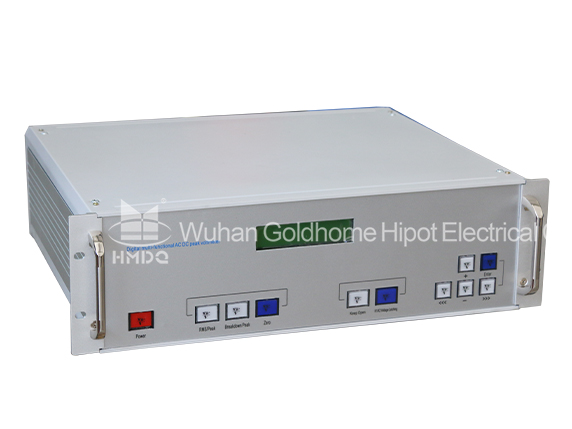

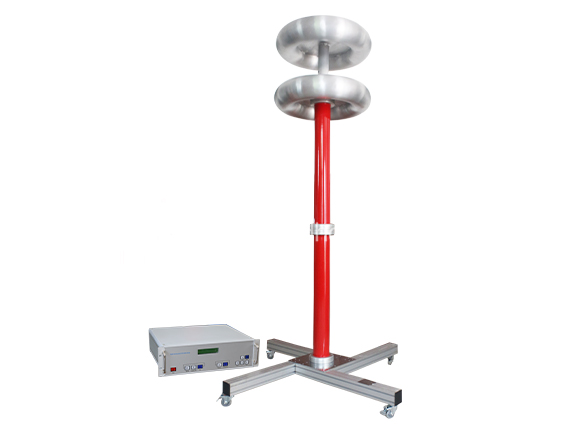

The whole equipment consists of two parts:voltage divider and measuring instrument.The voltage divider adopts the balanced equipotential shielding structure,and the whole device has the characteristics of accurate test,good linearity,stable performance,reasonable structure,easy to carry,simple operation and intuitive display.
The whole equipment consists of two parts:voltage divider and measuring instrument.The voltage divider adopts the balanced equipotential shielding structure,and the whole device has the characteristics of accurate test,good linearity,stable performance,reasonable structure,easy to carry,simple operation and intuitive display.
Features:

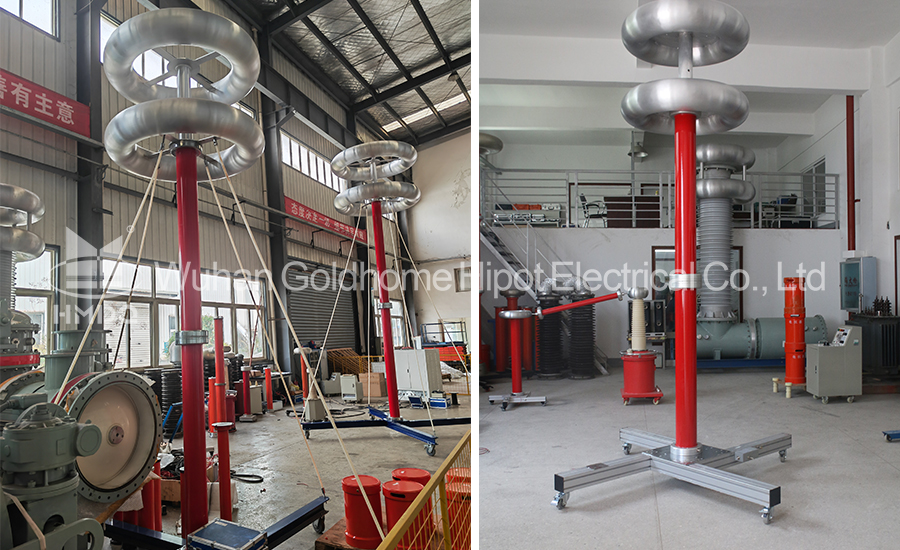

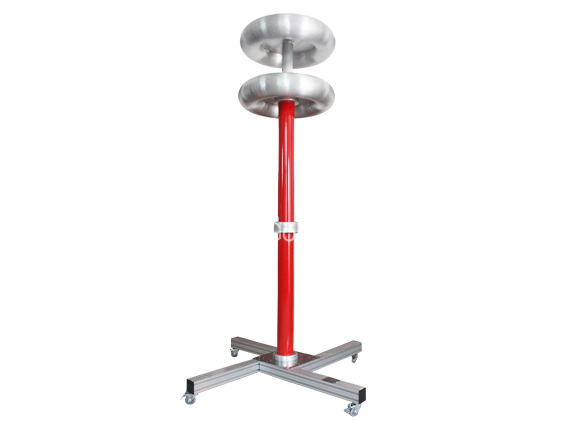

- Capacitive divider,With high precision,convenient operation and easy to move with wheels.
- The high voltage arm of one voltage divider is composed of multiple stacks of high voltage capacitors,and the other high voltage arm has only one capacitor.
- A high voltage oil paper capacitor is assembled by multiple elements in series and parallel,each element not only has a capacitor,but also a series of inherent inductance and contact resistance,and parallel insulation resistance,of course,each element has a stray capacitance.

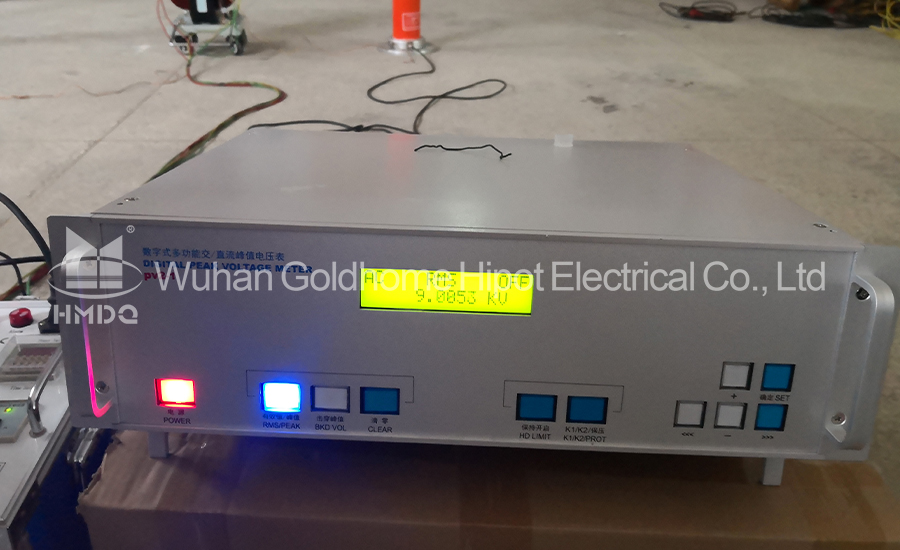

- The high accuracy voltage meter can display DC,AC RMS(RMS),AC peak(PEAK)and peak/√2.
- Voltage meter is with strong anti-interference capability,it can customize the functions according to the client’s requirements.
Parameter:
| Model | HMFRC-50 | HMFRC-100 | HMFRC-200 | HMFRC-300 | HMFRC-400 | |
| Measuring voltage Range | 0～50kV | 0～100kV | 0～200kV | 0～300kV | 0～400kV | |
| Rated voltage | DC | 50kV | 100kV | 200kV | 300kV | 400kV |
| RMS | 50kV | 100kV | 200kV | 300kV | 400kV | |
| Peak | 71kvP | 142kvP | 283kvP | 424kvP | 566kvP | |
| Partial pressure ratio （Load Impedance 1MΩ 500PF） |
500：1 | 1000：1 | 2000：1 | 3000：1 | 4000：1 | |
| Voltage divider Input Impedance | 200MΩ 500PF |
400MΩ 500PF |
800MΩ 300PF |
1200MΩ 300PF |
1600MΩ 300PF |
|
| Measurement accuracy of KV table | DC(DC) | ±（0.5%+2 digits） | ||||
| AC(AC) | ±（1%+2 digits） | |||||
| Average | ±（1%+2 digits） | |||||
| Peak/ 2 | ±（1%+2 digits） | |||||
| Peak | ±（2%+2 digits） | |||||
| Display | 4-digit LCD display | |||||
| Input | Impedance: 1MΩ Level signal: 100V | |||||
| Power supply | AC power 220V 50Hz | |||||
| Voltage divider | Φ110×480 | Φ110×720 | Φ110×1000 | Φ110×1450 | Φ120×2200 | |
| Weight(kg) | 5 | 8 | 15 | 25 | 40 | |
| Total weight(kg) | 10 | 15 | 25 | 40 | 60 | |
| More specification can be customized | ||||||
