HMFRC Digital AC/DC Kilovoltmeter Resistive-Capacitive High Voltage Divider
Applications:
A digital AC/DC kilovoltmeter resistive-capacitive high voltage divider is a sophisticated instrument used for measuring high voltages in both AC and DC systems. This type of high voltage divider utilizes a combination of resistive and capacitive elements to divide the high voltage signal, making it safe for measurement by a digital kilovoltmeter.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
High voltage divider is for measuring power frequency AC high voltage and DC high voltage, it is widely used by power system,, electrical and electronic equipment manufacturer, high voltage testing lab,ect.
Features:

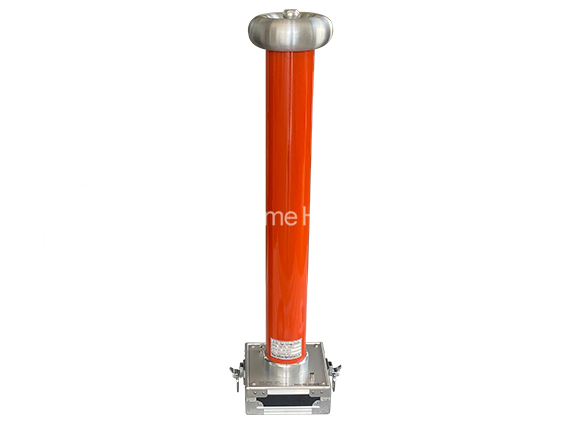

- The divider adopts high precision resistance,capacitor assembly,special process filling,dry seal,no oil leakage problem
- High input impedance:low test current,low power consumption,light weight,stable performance,high measurement accuracy.

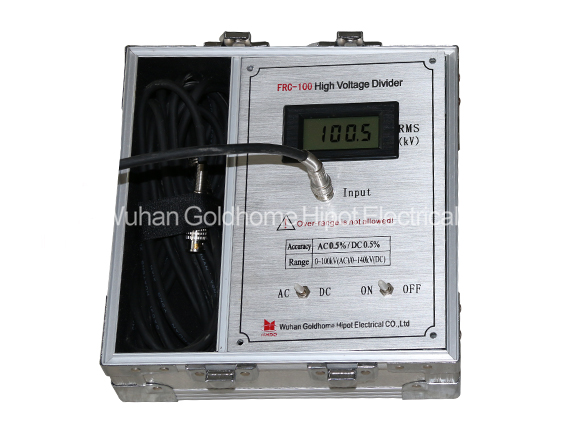

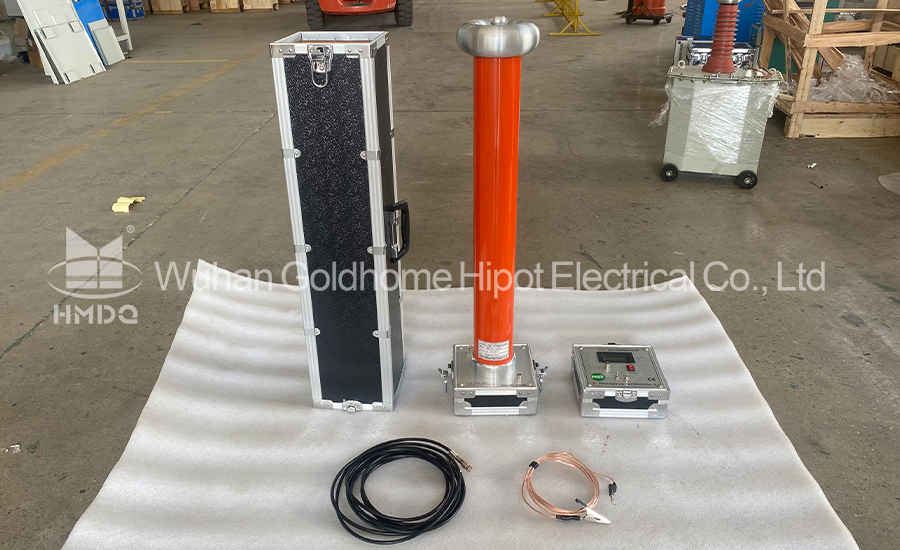

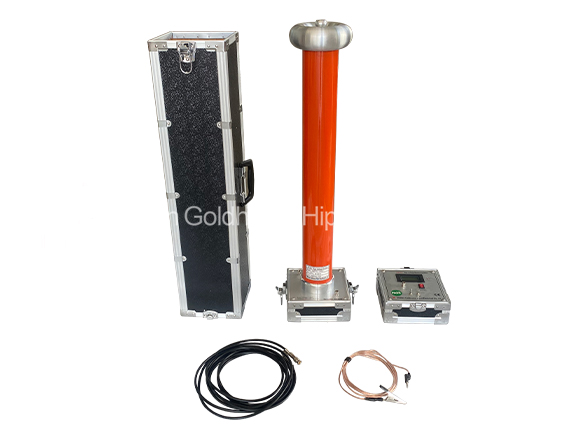

- The divider,multi-valued KV meter and special cable are all placed in an aluminum alloy box,safe and reliable,easy to carry and transport.

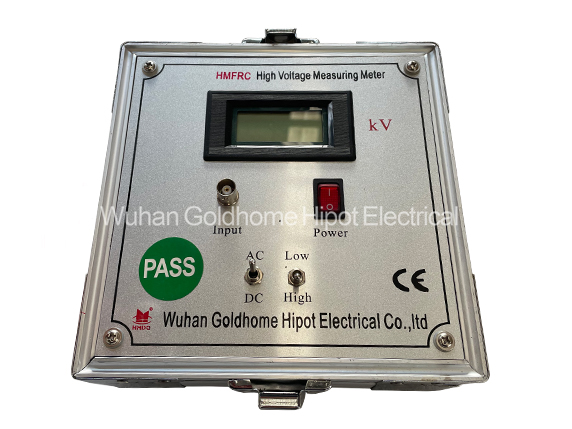

- Multi-valued KV meter can read DC average value,AC peak value,true effective value,peak voltage value,etc
Parameter:
| Voltage | AC/DC50kV | AC/DC100kV | AC/DC200kV | AC/DC300kV |
| Voltage divider ratio | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| Impedance | 200MΩ | 400MΩ | 800MΩ | 1200MΩ |
| Accuracy DC |
0.5 | 0.5 | 0.5 | 0.5 |
| AC | 1.0 | 1.0 | 1.0 | 1.0 |
Pictures:
