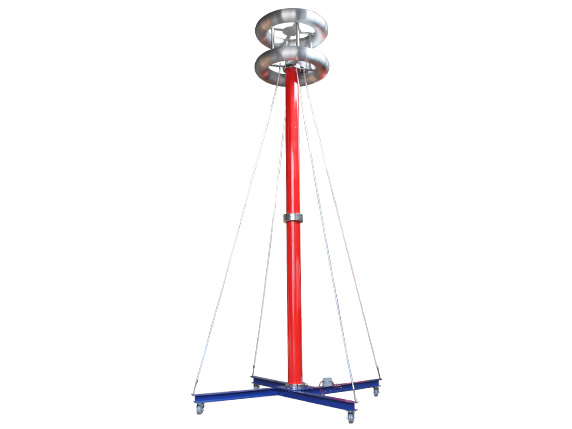

HMFRC AC/DC HV Damped-Capacitive Impulse Voltage Dividers
Applications:
AC/DC HV Damped-Capacitive impulse voltage dividers are used to measure the peak value of high voltage impulses in electrical systems. These dividers are designed to withstand the high voltage levels and provide accurate measurements of the impulse voltage.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
AC/DC HV Damped-Capacitive impulse voltage dividers are used to measure the peak value of high voltage impulses in electrical systems.These dividers are designed to withstand the high voltage levels and provide accurate measurements of the impulse voltage.
These dividers are suitable for both AC and DC impulse measurements and are commonly used in high voltage testing and research applications.They are designed to meet strict safety and accuracy standards to ensure reliable measurements in demanding environments.
These dividers are suitable for both AC and DC impulse measurements and are commonly used in high voltage testing and research applications.They are designed to meet strict safety and accuracy standards to ensure reliable measurements in demanding environments.
Features:
1. High precision
AC: 1.0% DC: 0.5%;
It is an updated product of high-voltage electrostatic voltmeter;
2. Safe and reliable
The FRC series voltage divider consists of a high voltage measurement section and a low voltage display instrument. Separate the high-voltage and low-voltage instruments during work, ensuring safe and reliable operation;
3. Easy to read
The FRC series voltage divider consists of a high-voltage end with an equal pressure cover at the upper end, which can be directly connected to the measured high-voltage. The lower end has a grounding end for grounding. The high-voltage divider and low-voltage display instrument are connected by cable, and the corresponding voltage and limit are selected to start the measurement. The reading is the number of kV;
4. Convenient to carry
The product is a portable structure, with an aluminum alloy packaging box as the casing, making it very convenient to use and carry.
AC: 1.0% DC: 0.5%;
It is an updated product of high-voltage electrostatic voltmeter;
2. Safe and reliable
The FRC series voltage divider consists of a high voltage measurement section and a low voltage display instrument. Separate the high-voltage and low-voltage instruments during work, ensuring safe and reliable operation;
3. Easy to read
The FRC series voltage divider consists of a high-voltage end with an equal pressure cover at the upper end, which can be directly connected to the measured high-voltage. The lower end has a grounding end for grounding. The high-voltage divider and low-voltage display instrument are connected by cable, and the corresponding voltage and limit are selected to start the measurement. The reading is the number of kV;
4. Convenient to carry
The product is a portable structure, with an aluminum alloy packaging box as the casing, making it very convenient to use and carry.
Parameter:
- Compliant with standard: DL/T 846.1-2004
- Voltage level: AC: 500kV DC: 500kV
- Measurement accuracy: AC: ± 1.5% ，DC: ± 1.0%
- Working environment: Temperature: -5 ℃ -40 ℃
- Humidity: ≤ 85%
- Input impedance: 800M Ω
- Output impedance: 0.8M Ω
- High and low pressure partial pressure ratio: 1 000:1
