VLf Hipot Tester With Tan Delta Measurement
VLf Hipot Tester With Tan Delta Measurement
VLf Hipot Tester With Tan Delta Measurement
VLf Hipot Tester With Tan Delta Measurement

VLf Hipot Tester With Tan Delta Measurement

  • (106 Reviews)

Applications:

The VLf (Very Low Frequency) Hipot Tester with Tan Delta Measurement is a specialized testing instrument used to evaluate the insulation integrity and dielectric strength of electrical equipment and components. The Tan Delta measurement feature allows for the assessment of the quality of the insulation material by measuring the dissipation factor, which indicates the presence of any defects or impurities in the insulation.
  • pictures Strictly FAT Test
  • pictures Third-party Calibration
  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

This product adopts digital frequency conversion technology, single-chip microcomputer control, and the step-up, step-down, measurement and protection are fully automated. Due to full electronization, it has small volume and light weight. It adopts large screen color touch screen, which is clear and intuitive, simple to operate and display output waveform. The design index conforms to the national standard of general technical conditions for special test instruments for power equipment, Part 4: General technical conditions for ultra-low frequency and high voltage generators, which is simple and convenient to use.


Features:

  1. Single connection structure (one booster) shall be adopted for ultra-low frequency with rated voltage less than or equal to 50kV; The ultra-low frequency greater than 50kV adopts series structure (two boosters are connected in series), which greatly reduces the overall weight andenhances the load capacity. Moreover, both boosters can be used alone to achieve multi- purpose of one machine.
  2. Current and voltage data are directly sampled from the high voltage side, so the data is accurate.
  3. Intelligent comprehensive protection function: there is no need to set the current and voltage protection value. The instrument can calculate the overvoltage and overcurrent protection value according to the capacitance of the test object and the test voltage value. It can also protect the sudden change of voltage and current, so it can capture the discharge. The protection action time is less than 20ms.
  4. High voltage cable 150KV is adopted for output, which is safe and reliable.
  5. Since the closed-loop negative feedback control circuit is adopted, the output has no capacity rise effect.
  6. Dielectric loss(tgδ) measurement function (for buyer’s option), which can measure the dielectric loss, capacitance and insulation resistance of the test object at the same time.

Parameter:

Rated voltage Frequency/Load capacity Fuse Product structure, weight and application scope
30kV
(Peak)
Auto Variable Frequency:0.1Hz-0.01Hz
Capacity:≦10µF
8A Controller: 4kg
Booster: 25kg
Suitable for withstand voltage test of cables and motors ≤11kV
40kV
(Peak)
Auto Variable Frequency:0.1Hz-0.01Hz
Capacity:≦8µF
10A Controller: 4kg
Booster: 25kg
Suitable for withstand voltage test of cables and motors ≤11kV
50kV
(Peak)
Auto Variable Frequency:0.1Hz-0.01Hz
Capacity:≦6µF
15A Controller: 4kg
Booster: 45kg
Suitable for withstand voltage test of cables and motors ≤22kV
80kV
(Peak)
Auto Variable Frequency:0.1Hz-0.01Hz
Capacity:≦5µF
20A Controller (40KV): 29kg
Booster II (40KV): 45kg
Suitable for withstand voltage test of cables and motors ≤35kV

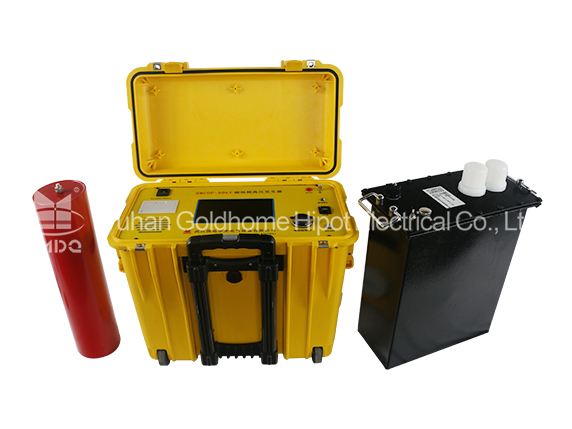

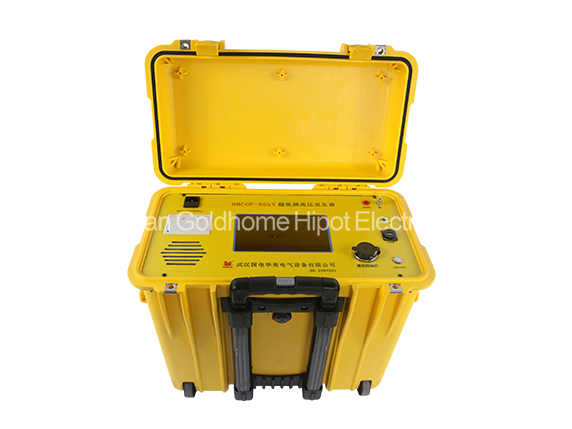

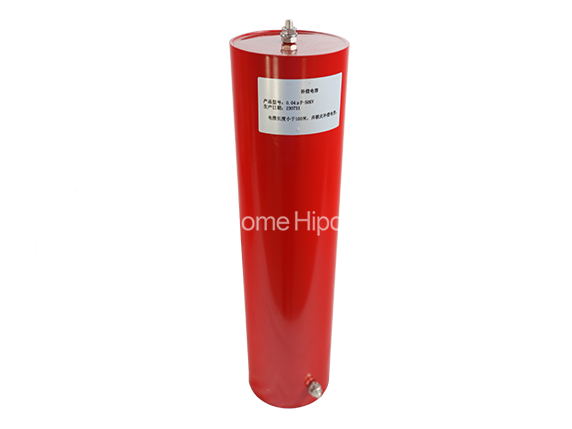

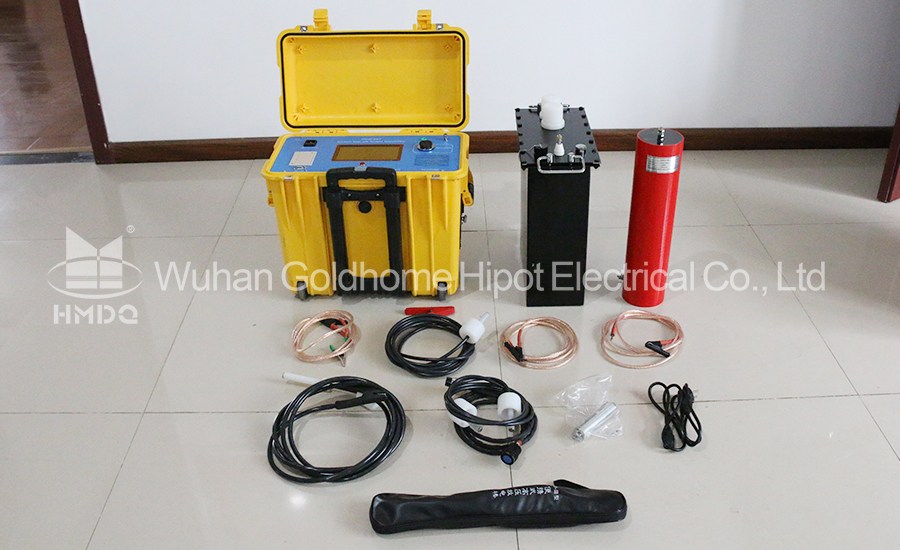

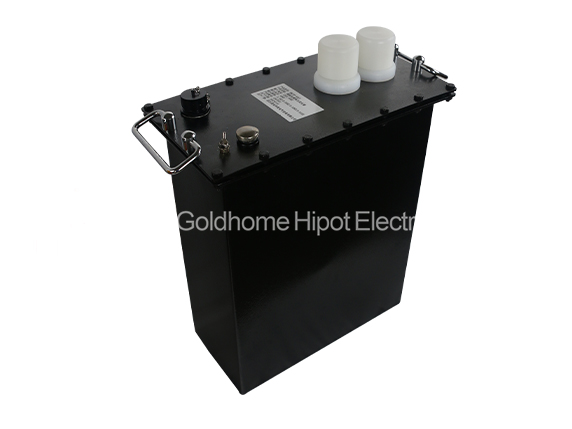

Pictures:
