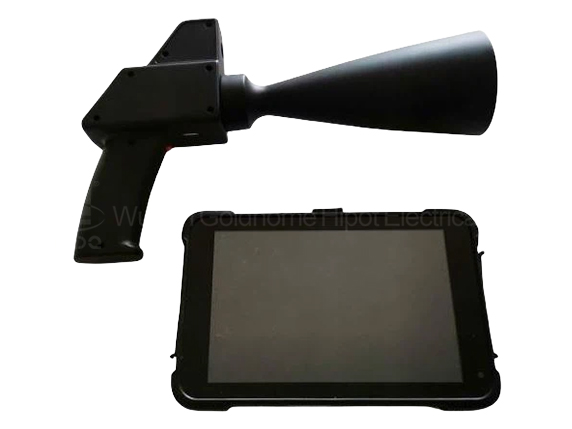

Visualized Remote Ultrasonic Partial Discharge Detector PD Tester
Applications:
Visualized Remote Ultrasonic Partial Discharge Detector PD Tester is a device that uses ultrasonic technology to detect and visualize partial discharge in electrical equipment from a remote location. The instrument is equipped with a high-frequency transducer that emits ultrasonic waves to detect any partial discharge activity within the equipment.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
Visualized Remote Ultrasonic Partial Discharge Detector PD Tester is a device that uses ultrasonic technology to detect and visualize partial discharge in electrical equipment from a remote location. The instrument is equipped with a high-frequency transducer that emits ultrasonic waves to detect any partial discharge activity within the equipment. The data collected is then visualized on a screen, allowing the user to analyze and monitor the condition of the equipment in real-time. This remote capability allows for safe and efficient inspection of electrical equipment in hazardous or hard-to-reach locations. The instrument is a valuable tool for preventive maintenance and early detection of potential equipment failures.
Features:
- Color LCD screen display,friendly interface,intuitive display and easy operation.It can determine the location of the failure point of the partial discharge point,and has fault recording,storage and playback functions.
- Built-in inspection task management system.Data is compressed,interconnected,and communicated in compressed form.
- Intelligent RFID electronic tag inspection function,which supports the interconnection of cloud platforms,and can realize intelligent inspection and joint fault diagnosis on site.
- Equipped with a camera with a long-distance function,it can also record photos of the discharge part while determining the location of the partial discharge fault.
- Support GPS inspection and positioning management,the system supports two-dimensional code scanning and one-dimensional code data reading.
- Equipped with a headphone output function,which can convert the ultrasonic signal into an audible sound signal for the adult ear,which is sent by the headphone,which facilitates inspection operations and improves efficiency.
- Strong anti-interference ability,can be applied to noisy environment,not affected by external environmental sounds,has a strong directionality,can quickly and accurately locate defective equipment.
- Equipped with a high-brightness red laser aiming device,users can easily locate targets even under strong light.
- High sensitivity,long distance inspection,can achieve long-distance online monitoring,no power outages,no close proximity,can be operated in a safe location.
- Built-in diagnostic software,real-time display of test results,and supporting special management software,can achieve test report generation,printing,search and other functions,easy to search.
- It adopts large-capacity and high-performance lithium battery for power supply,low power consumption design,long battery life,easy to carry,and suitable for a variety of work occasions.
Parameter:
|
Operating temperature: |
-10℃～＋40℃ |
|
Storage temperature: |
-20℃～＋50℃ |
|
Detection distance: |
>30 m |
|
Measurement frequency: |
40kHz |
|
Direction angle: |
±6° |
|
Sensitivity: |
-90dB |
|
Dynamic Range: |
60dB |
|
operating hours: |
>24 hrs |
|
Headphone connection: |
3.5mm jack |
|
Laser source: |
P<20mW，532nm |
|
Display: |
5.0 inch TFT color LCD screen, multi-touch capacitive screen |
