Digital Partial Discharge Testing Set PD Detector

HMPD Digital Partial Discharge Testing Set PD Detector

(106 Reviews)

Applications:

A Digital Partial Discharge Testing Set, also known as a PD Detector, is an advanced device used to measure and analyze partial discharge activity in electrical insulation systems. Partial discharge is a phenomenon that occurs in insulation materials when there is a breakdown of the dielectric strength, leading to localized electrical discharges. These discharges can degrade the insulation and eventually lead to equipment failure.

Digital Partial Discharge Testing Set PD Detector

Strictly FAT Test
Third-party Calibration

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile:

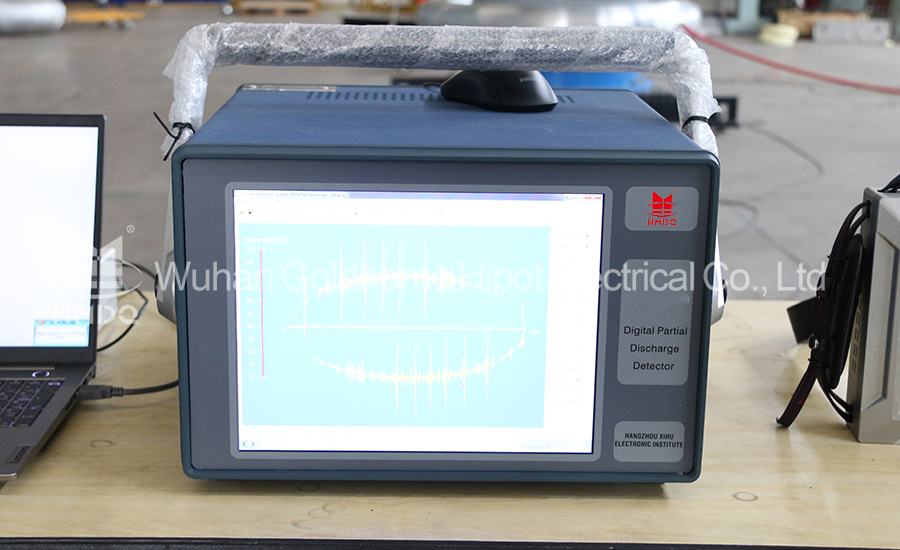

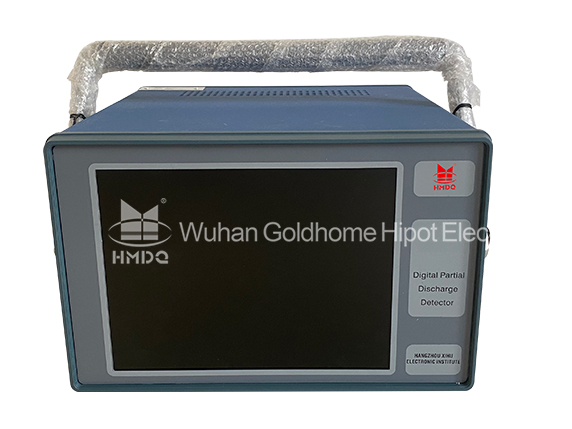

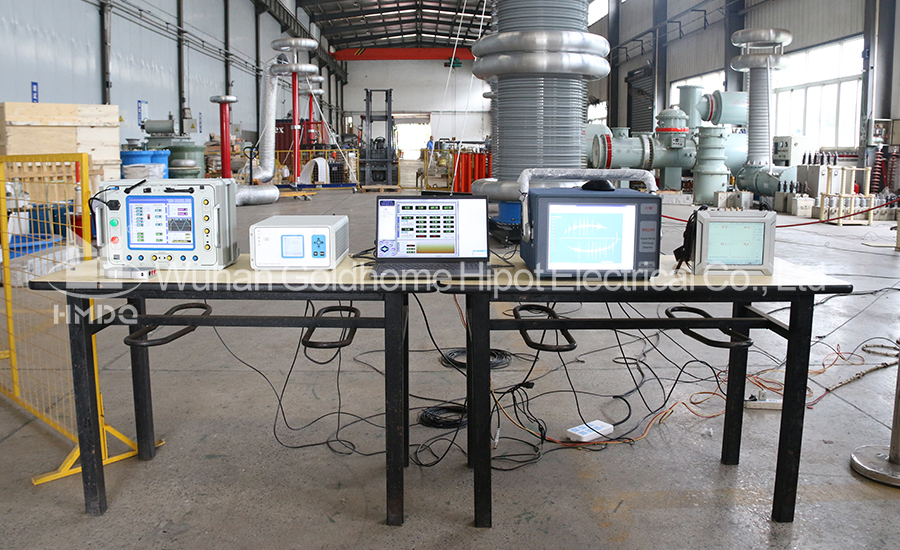

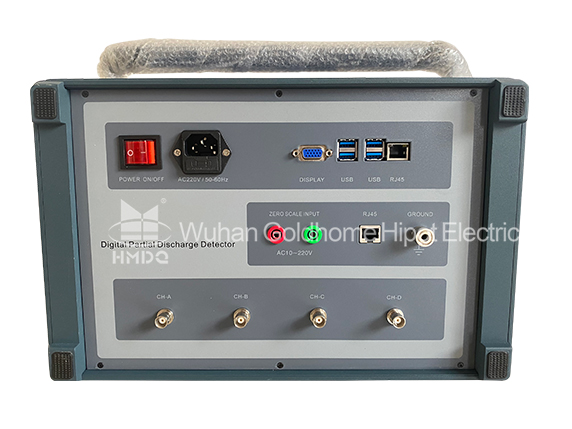

Digital Partial Discharge Testing Set PD Detector is a new generation digital analyzer with high performance and new technique. This product is a desktop with advantages of multi-interface, TFT LCD display, reliable system, low fault rate. In addition to measure the partial discharge of high voltage electrical equipment, it also can fix a accurate position on the faulted equipment, there is an expert analysis system in the product to judge different discharge types correctly, it also can be used to monitor the high voltage electrical equipment such as high voltage transformers continuously online. It gathers the functions of partial discharge measurement, location (option), monitor together and makes it come true.

Features:

With high detection sensitivity,especially in detection of weak discharge signals.

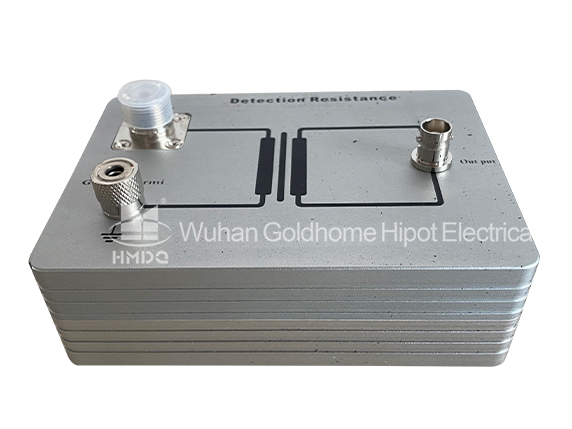

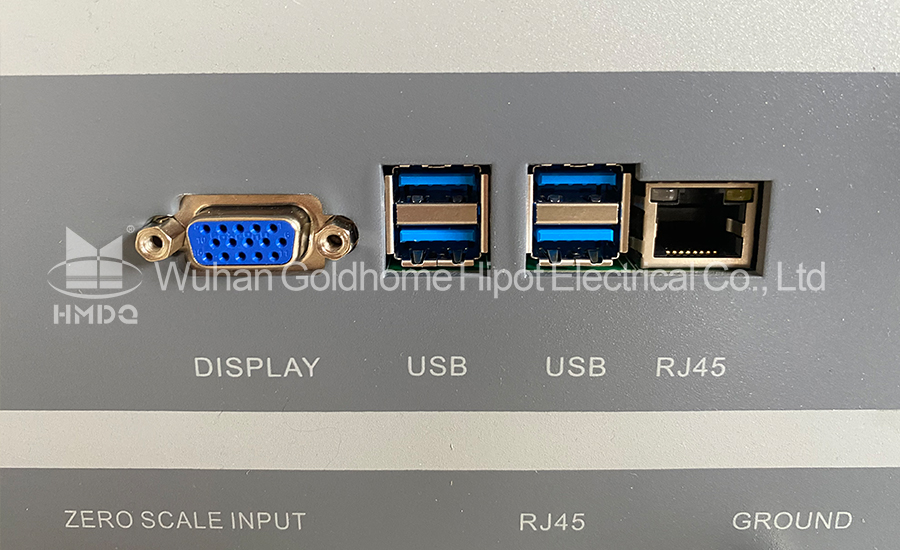

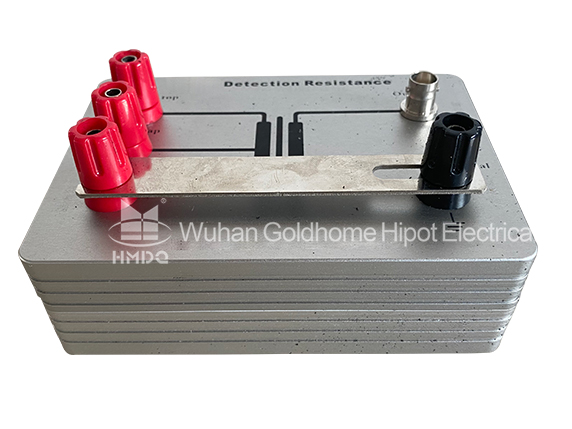

With two interface,calibration interface and measurement interface.measurement interface is divided into Ellipse,linear,Sine,Two-dimensional analysis,Three-dimensional analysis,Freq window,QVF properties window,multi-channel displays interface and so on.You can select them by clicking the switching page or the menu.

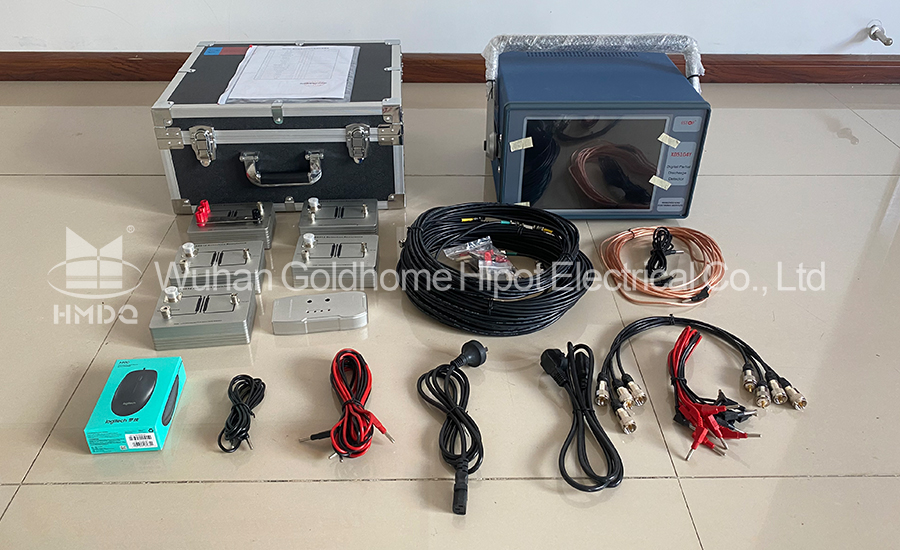

4 channels for choose.
Can show partial discharge graphics and value

Parameter:

1. Name

Digital detection system of Partial Discharg

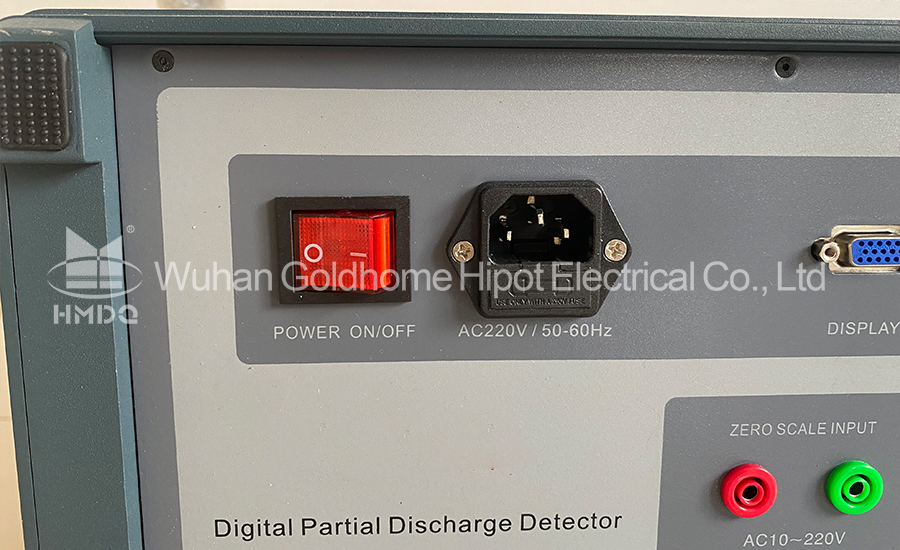

2. Power Supply

220V AC-5%to+10%Freq:50Hz±5%

3. Environment

①Temperature:-5℃～40℃
②Humidity:<85%

4. Security

①Insulation resistance：>2MΩ
②Leakage：<3.5mA
③Dielectric strength:the power line right into
the chassis can withstand 1500V(50HZ RMS)1min
of the voltage test.

5. Shape and weight

①size：300x350x90(mm)
②weight：4kg

6. Host function index

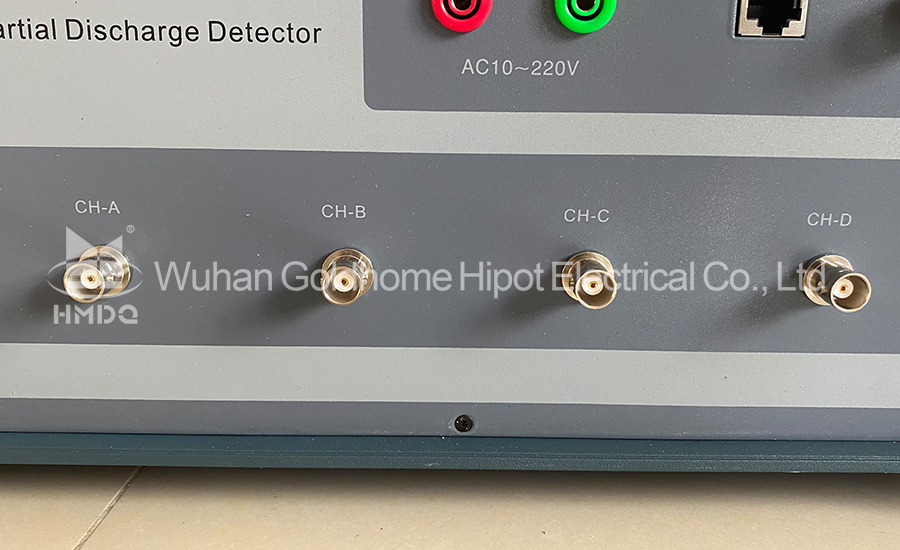

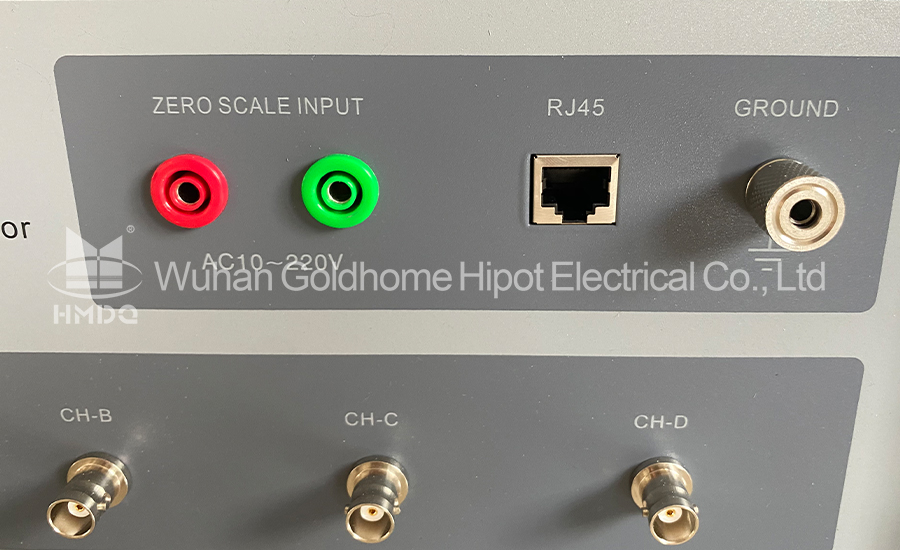

①CH：4；
②Sensitivity：0.1pc；
③Measurement band：3dB bandwidth of

10kHz-1000kHz Multi-file any combination;
Lp:10K、20K、40K，80K；
Hp:100K、200K、300K,1000K；

④Gain Range:-20 dB∽+40 dB fourth gear can be coarse to fine-tune;
