UHV DC Withstand Voltage Test Vehicle/Platform
Applications:
UHV DC(Ultra High Voltage Direct Current)withstand voltage test vehicles or platforms are used to conduct high voltage tests on electrical equipment and components.These vehicles or platforms are designed to carry the necessary testing equipment and provide a stable and safe platform for conducting the tests.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
UHV DC(Ultra High Voltage Direct Current)withstand voltage test vehicles or platforms are used to conduct high voltage tests on electrical equipment and components.These vehicles or platforms are designed to carry the necessary testing equipment and provide a stable and safe platform for conducting the tests.
The UHV DC withstand voltage test vehicles or platforms are equipped with insulation and safety features to protect the personnel conducting the tests and to prevent damage to the equipment being tested.They are typically equipped with high voltage generators,measurement equipment,and safety interlocks to ensure that the tests are conducted safely and accurately.
These vehicles or platforms are used in the testing of high voltage equipment such as transformers,cables,switchgear,and other electrical components.The tests are conducted to ensure that the equipment can withstand the high voltages that they will be subjected to during normal operation.
Overall,UHV DC withstand voltage test vehicles or platforms are essential tools for ensuring the safety and reliability of high voltage electrical equipment and components.They provide a controlled environment for conducting tests and help to identify any potential weaknesses or defects in the equipment before it is put into service.
The UHV DC withstand voltage test vehicles or platforms are equipped with insulation and safety features to protect the personnel conducting the tests and to prevent damage to the equipment being tested.They are typically equipped with high voltage generators,measurement equipment,and safety interlocks to ensure that the tests are conducted safely and accurately.
These vehicles or platforms are used in the testing of high voltage equipment such as transformers,cables,switchgear,and other electrical components.The tests are conducted to ensure that the equipment can withstand the high voltages that they will be subjected to during normal operation.
Overall,UHV DC withstand voltage test vehicles or platforms are essential tools for ensuring the safety and reliability of high voltage electrical equipment and components.They provide a controlled environment for conducting tests and help to identify any potential weaknesses or defects in the equipment before it is put into service.
Features:

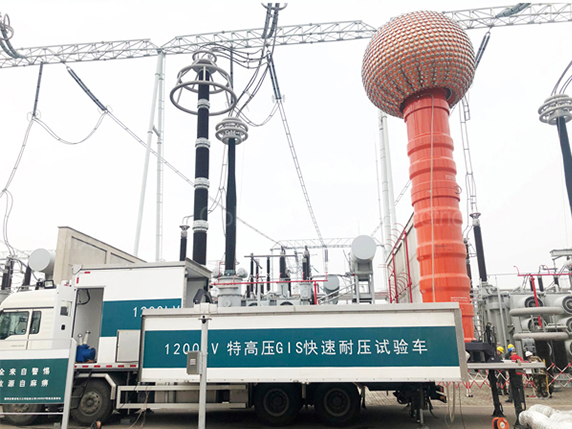

- The fully automatic "missile vertical" deployment structure does not require assembly or auxiliary equipment, and the test deployment process does not exceed 30 minutes;
- Intelligent induction hydraulic self-control buffering technology, stable, smooth, and safe upright process;
- Airbag type metal scale uniform pressure cover, inflated and formed during testing, deflated and contracted during storage and transportation;
- The double pressure/pressure measurement adopts a micro positive pressure nitrogen insulation structure, which is moisture-proof, non-toxic, safe for storage and transportation, and has low maintenance costs;
- Asymptotic high-capacity automatic discharge device technology (optional for testing platform)
- The test vehicle is fully enclosed and automatically unfolds for on-board testing;
- Experimental platform automatic boarding and alighting technology.
Parameter:
- Maximum output voltage: 1400kV, output current: 0-20mA, factory not exceeding 12 meters, total weight of 25 tons;
- Maximum output voltage: 1000kV, output current: 0-20mA, vehicle length not exceeding 9.6 meters, total weight of 16 tons. (You can choose an experimental platform)
- The 1400kV/20mA test platform has a total length of 9.5 meters, a width of 2.1 meters, a height of 2.5 meters, and a total weight of 8 tons.
- The 1000kV/20mA experimental platform has a total length of 7.5 meters, a width of 2.1 meters, a height of 2.5 meters, and a total mass of 5 tons.
- The platform can be lifted as a whole and has extended support. It is also possible to install an automatic loading and unloading mechanism with a memory steering wheel chassis.
