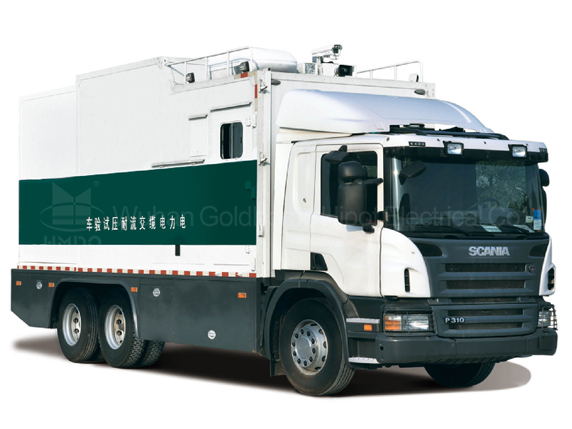

High Voltage AC Test Vehicle/Platform For Cables
Applications:
High voltage AC test vehicles or platforms for cables are specialized vehicles or platforms designed to test the performance and reliability of high voltage cables.These vehicles are equipped with the necessary equipment and technology to generate high voltage AC power and apply it to the cables for testing purposes.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
High voltage AC test vehicles or platforms for cables are specialized vehicles or platforms designed to test the performance and reliability of high voltage cables.These vehicles are equipped with the necessary equipment and technology to generate high voltage AC power and apply it to the cables for testing purposes.
Features:
- The operation room is completely separated from the equipment room, ensuring the safety of the testing personnel. By adopting a new design concept, we have successfully solved the problem of heat generation, vibration, and loss caused by eddy currents during equipment operation, which have an impact on the test.
- The equipment does not need to be loaded or unloaded, as long as it is connected to the high-voltage towing cable accompanying the vehicle for testing. Can meet the AC withstand voltage test of 35kV, cross-sectional area 300mm, and 10km long cross-linked cables.
Parameter:
- Test voltage: U=65kV; Test frequency: 30-300Hz;
- Boosting time: 60min/phase
- Ultra large test capacity
- complete AC withstand voltage test for ultra long cables in one vehicle
