HM2670 Turn To Turn Surge Withstand Voltage Tester
Applications:
The Turn To Turn Surge Withstand Voltage Tester is a device used to test the ability of a component or system to withstand voltage surges between individual turns. This tester is designed to simulate high voltage surges and measure the response of the component or system to ensure its reliability and safety.
It is commonly used in the electrical and electronics industry to verify the insulation and voltage withstand capabilities of transformers, motors, and other electrical equipment. The Turn To Turn Surge Withstand Voltage Tester helps to identify potential weaknesses in the insulation and prevent electrical failures and hazards.
It is commonly used in the electrical and electronics industry to verify the insulation and voltage withstand capabilities of transformers, motors, and other electrical equipment. The Turn To Turn Surge Withstand Voltage Tester helps to identify potential weaknesses in the insulation and prevent electrical failures and hazards.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Turn to Turn Surge Withstand Voltage Tester (i.e. Digital interturn test instrument )
Profile:
Withstand voltage tester is an ac high voltage safety measurement instrument, widely used in electronic instruments, electronic equipment, electronic components, electrical equipment, bakelite appliances, rubber, high voltage cable and motor withstand voltage test, also applicable to household appliances withstand voltage test.
Features:
- Easy to operate and highly automated (just press one button).
- Menu management, easy and clear input parameters.
- Strong anti-interference ability and high detection accuracy.
- Small size, light weight, convenient for onsite operations.
Parameter:
- Testing voltage: AC:0.5kV~5kV ±5%
- Leakage current setting value:AC: 0.2~20(mA) adjustable
- Leakage current setting accuracy: ±5%
- Output power: 100VA.
- Output waveform: 50Hz Sine waveform
- Timing: 1~99(s)±5%, manual adjustable.
- Power source: AC-220V±10%, 50Hz±2Hz.
- Environment: RH≤75%RH, Temperature: 0℃~40℃.
There is no strong electromagnetic interference source around, no large amount of dust and
corrosive gas, good ventilation.

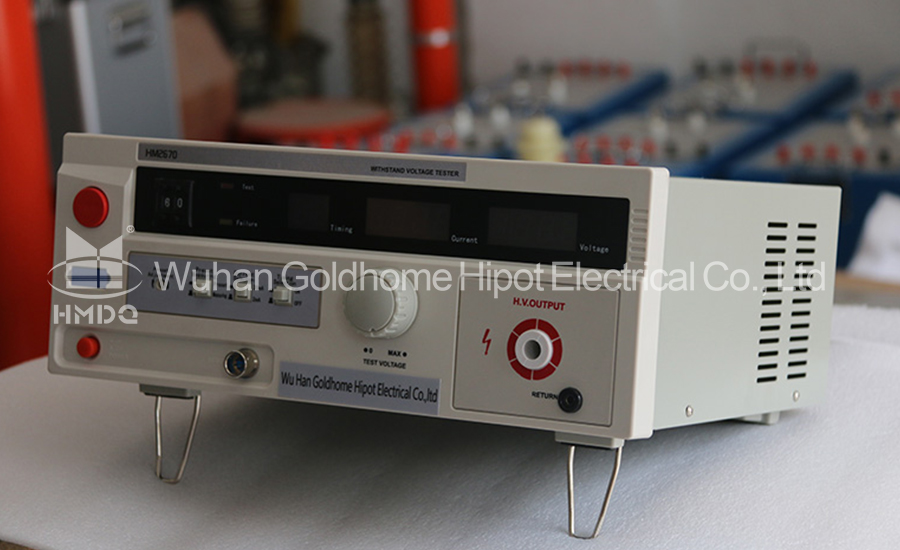

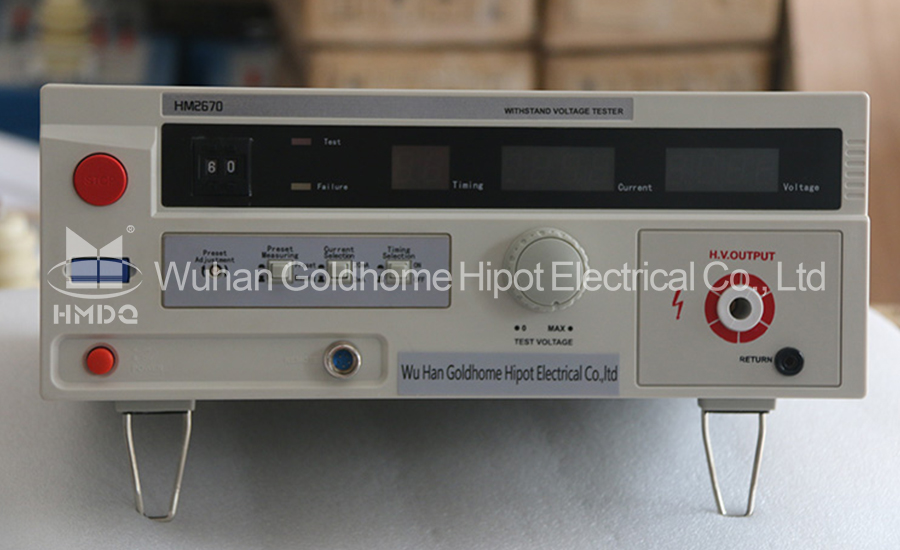

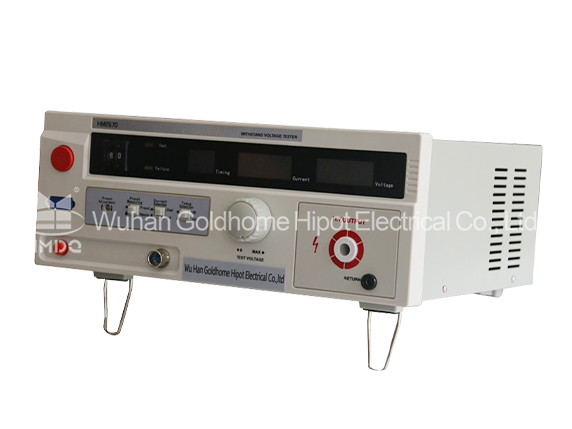

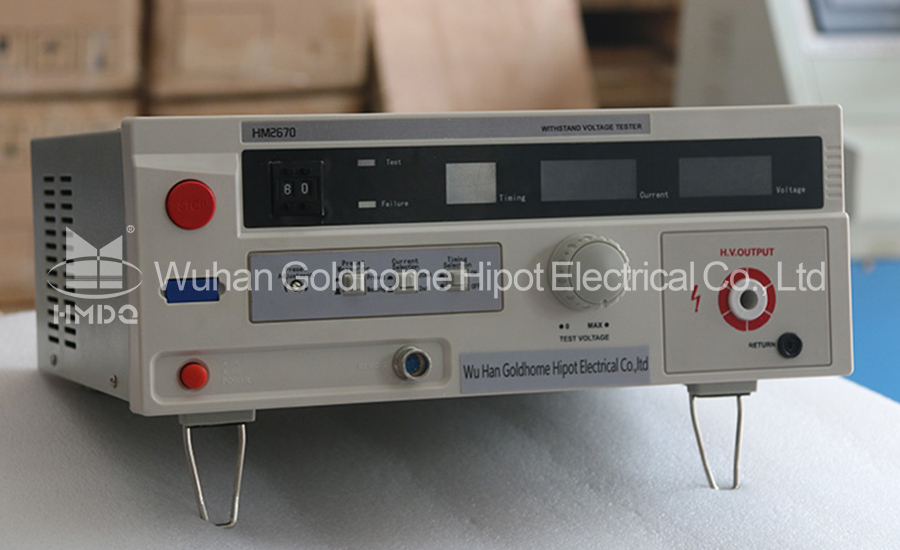

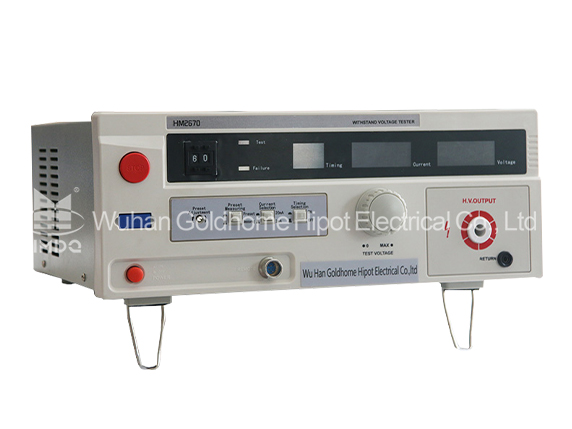

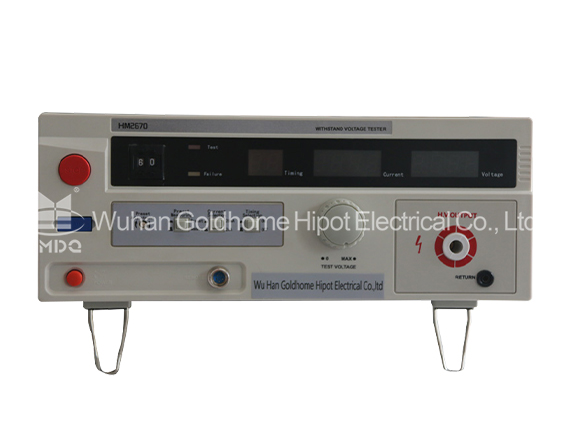

9. Power loss: quiescent power drain<30VA Pictures:
