HMZGF-120kV/3mA HV DC Hipot Tester
Applications:
HV DC Hipot Tester is a high voltage direct current (HV DC) testing device used to verify the electrical insulation of cables, wires, transformers, and other electrical equipment. It applies a high voltage to the equipment and measures the leakage current to ensure that the insulation is able to withstand the specified voltage without breakdown.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
High voltage DC generator provides the most dependable,portable DC high voltage sources for checking the quality of zinco xide arrester,magnetic blow-out arrester,power cable,generator,transformer,and switchgear.It is widely applied in electric power department,scientific research unit,railway station,power plant,chemical plant,etc.For the DC hipot tester,it has two functions:For the DC high voltage test and DC leakage current test.
Features:

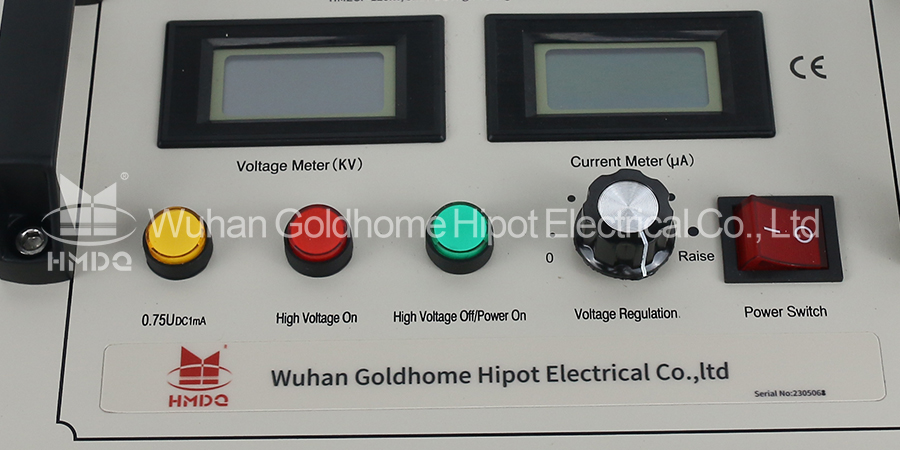

- High accuracy and correct measuring.Voltage and current meter all have digital display,with voltage resolution 0.1kV,and current 0.1uA.Voltage value applied to load test object is displayed directly through voltmeter on control cabinet,which needn’t to be connected with voltage divider on the outside when using,and lead connection is eas
- High stability in voltage regulation,smooth voltage regulation in full range.Voltage regulation of output adopts import single multi-rings potentiometer with rough adjustment and fine adjustment.Accuracy of voltage adjusting is better 0.1%,accuracy of voltage and current measuring is less than 1.0%,and ripple factor is better than 0.5%.
- Negative polarity output,zero start,continuous adjustable,having the function of over voltage,over current,zero returning and ground protection.Operation is safe due to strong function of auto protecting circuit,technical index of all kinds surpassing industry standard and similar products.
Parameter:
| Specification Technical Parameter |
60/5 | 120/5 | 100/10 | 160/2 | 180/2 | 200/2 | 250/2 | 100/200 3/2 |
200/300 3/2 |
Others |
| Output voltage (kV) |
60 | 120 | 100 | 160 | 180 | 200 | 250 | 100/200 | 200/300 | 600～800kV Produce according to the contract |
| Output current (mA) | 5 | 5 | 10 | 2 | 2 | 2 | 2 | 3/2 | 3/2 | |
| Output power (W) | 300 | 600 | 1000 | 320 | 360 | 400 | 500 | 400 | 600 | |
| Charging current (mA) |
5.0 | 5.0 | 12.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.5/3.0 | 4.5/3.0 | |
| Case weight (kg) | 4.5 | 7 | 5.3 | 4.3 | 4.3 | 4.4 | 4.5 | 4.5 | 8.1 | |

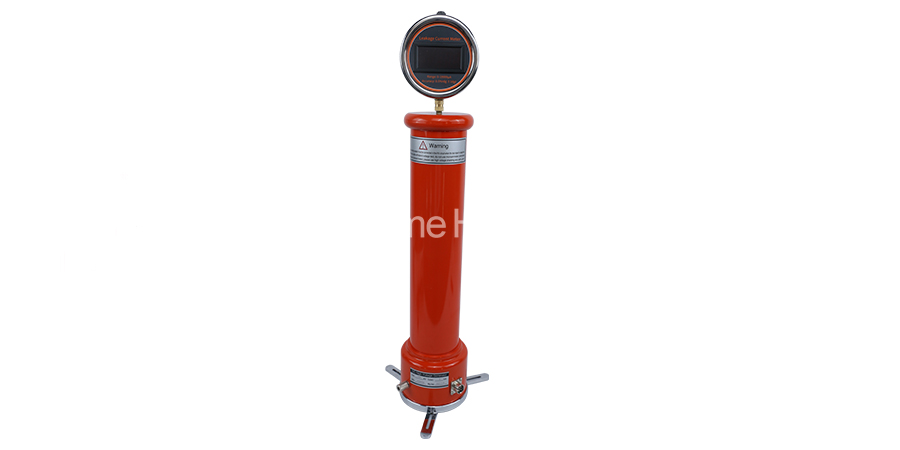

| Dimension of multivoltage tube (mm) | Φ80 ×500 |
Φ80 ×770 |
Φ80 ×770 |
Φ80 ×770 |
Φ110 ×770 |
Φ110 ×770 |
Φ110 ×820 |
Φ110 ×800 |
Φ110 ×1350 |
|
| Height of multivoltage tube (kg) | 7.3 | 9 | 7.5 | 7.2 | 7.2 | 7.2 | 7.6 | 7.5 | 12.6 | |
| HV polarity | Polarity of negative volt, zero voltage start, continuous adjustable | |||||||||
| Work power | AC 220V±10%;50Hz | |||||||||
| Voltage measuring accuracy | 1.0%（full scale）±1character, max resolution 0.1%kV | |||||||||
| Current measuring accuracy | 1.0%（full scale）±1character, max resolution 0.1%uA | |||||||||
| Over voltage rectify accuracy | ≤1.0% | |||||||||
| 0.75 switch over accuracy | ≤0.5% | |||||||||
| Ripple factor | ≤1.0% | |||||||||
| Voltage stability | Random fluctuation, when voltage change of power supply±10% ≤0.5% | |||||||||
| Work manner | Intermittent service; 30min of rated load;1.1 times of rated voltage use:10min | |||||||||
| Temperature | -15℃～50℃ | |||||||||
| Relative humidity | When at 25℃，no more than 90%(no condensation) | |||||||||
| Altitude | Below 2500m | |||||||||

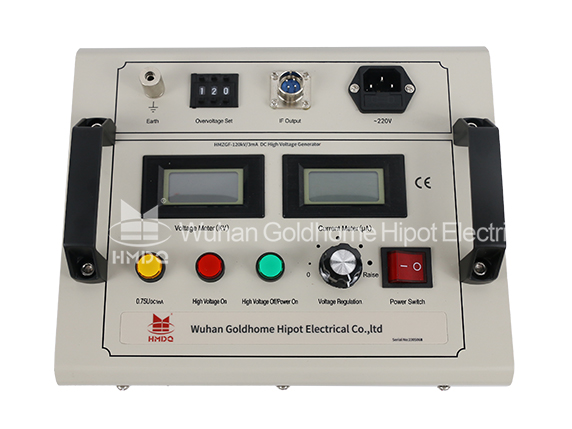

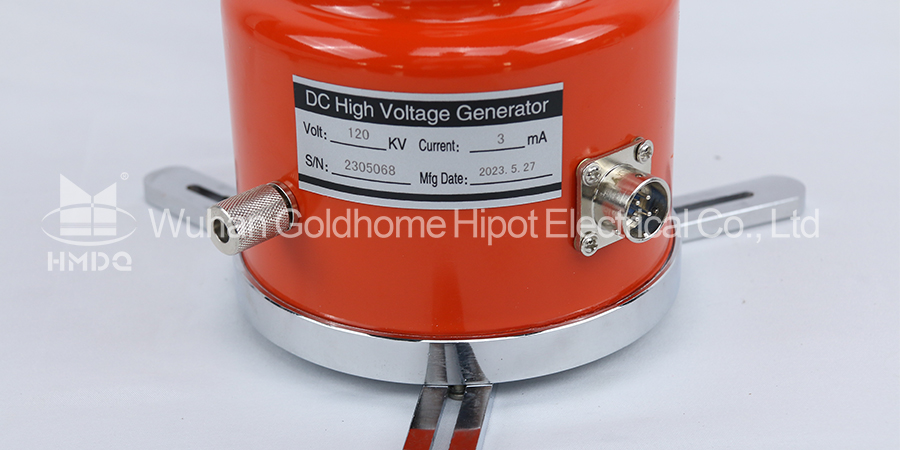

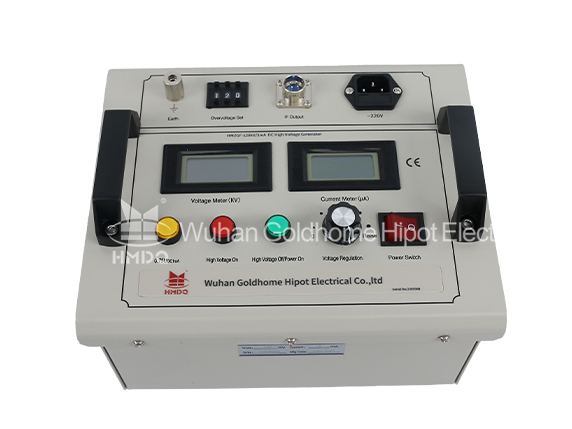

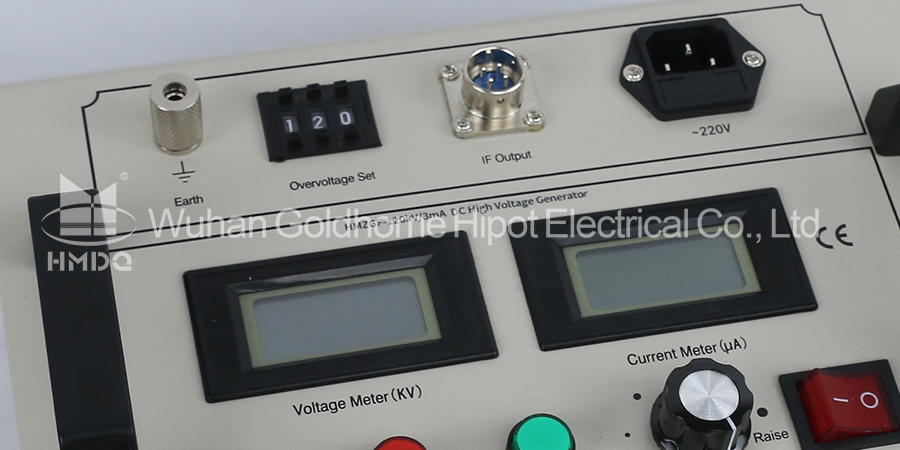

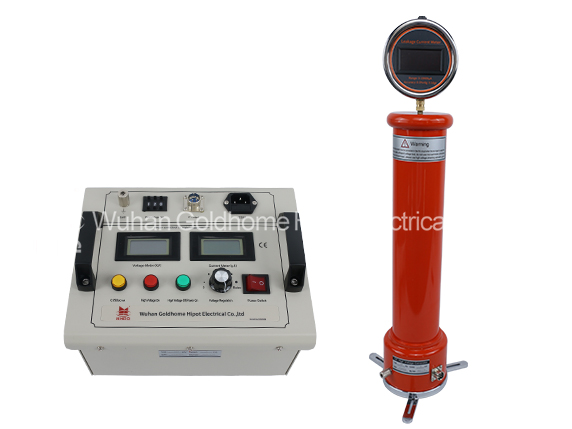

Pictures:
