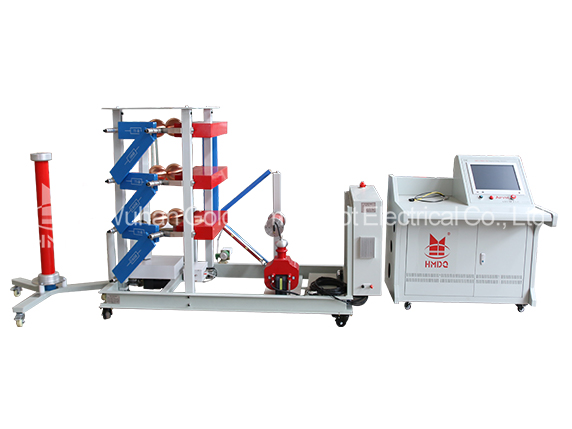

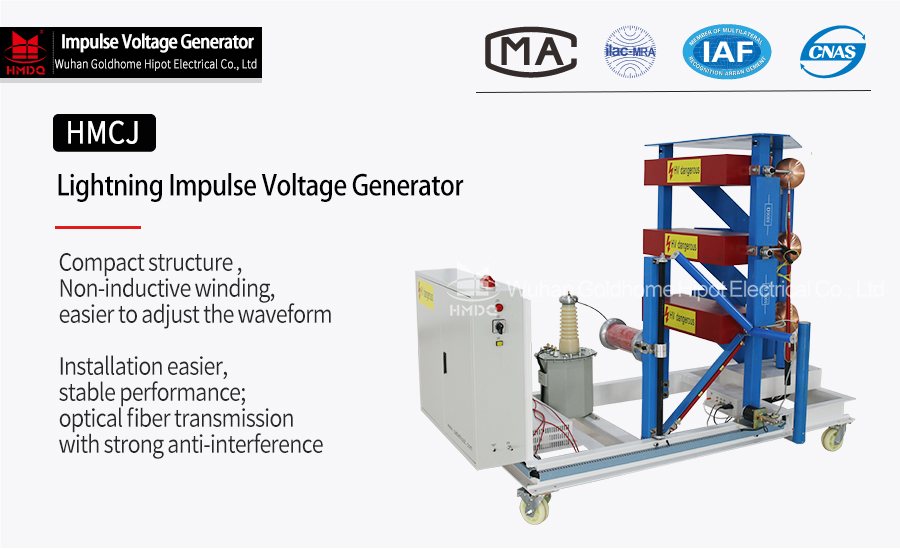

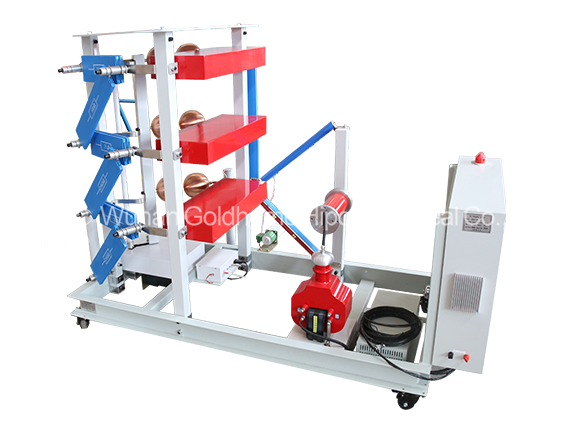

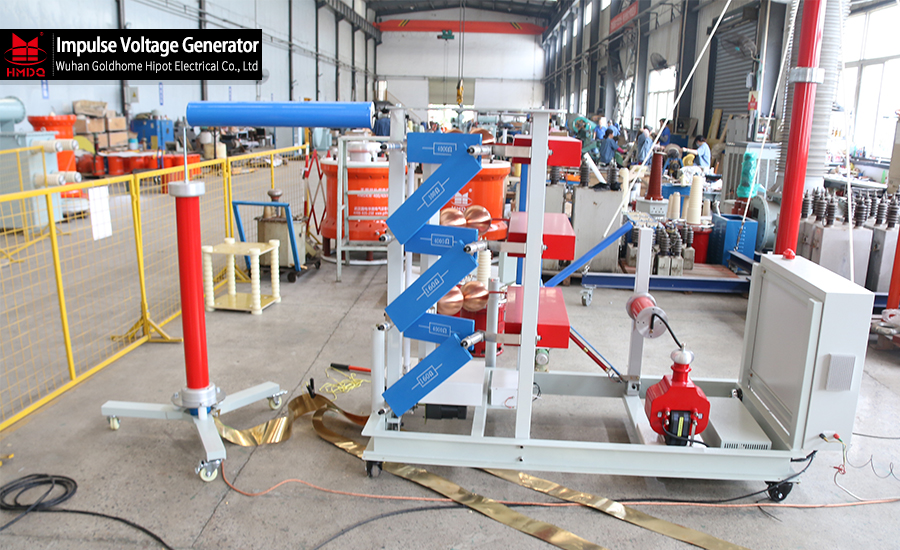

HMCJ 300kV/20kJ HV Lightning Impulse Voltage Generator
Applications:
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Brief Introduction:
impulse voltage generator is mainly used to test the impulse voltage of lightning impulse voltage full wave, lightning impulse voltage chopped wave and operating impulse voltage wave for testing insulation performance.
Features:
- Fully operation automatically,automatic discharge
- Can trace the gap distance,and adjust the gap

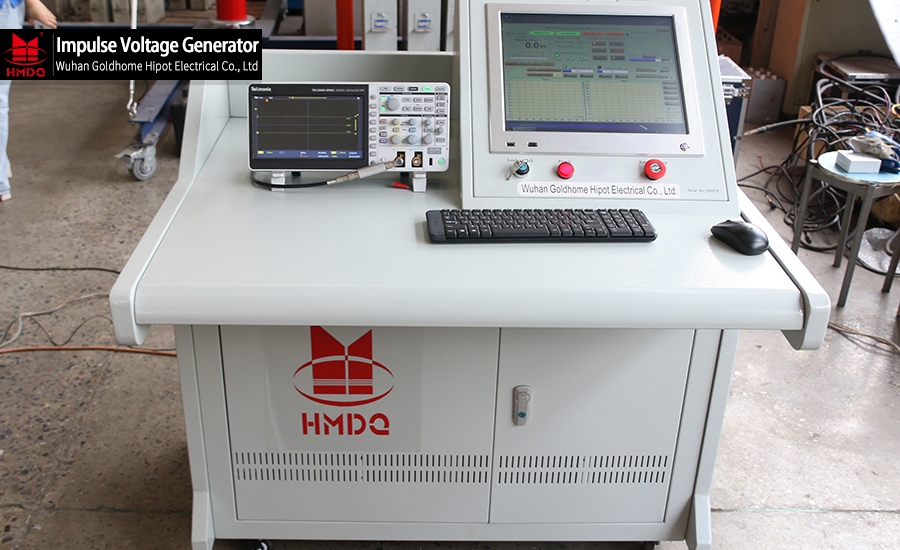

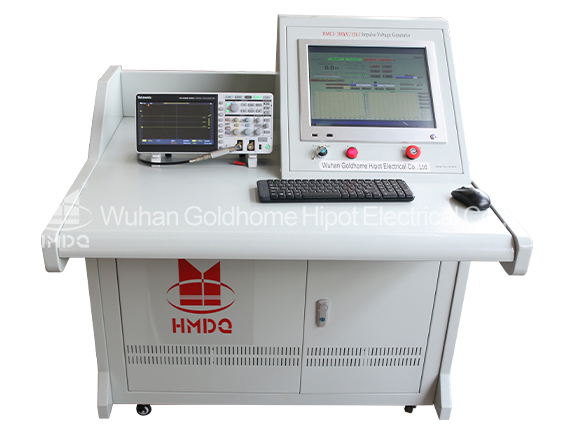

- Using the oscilloscope produced by Tektronix

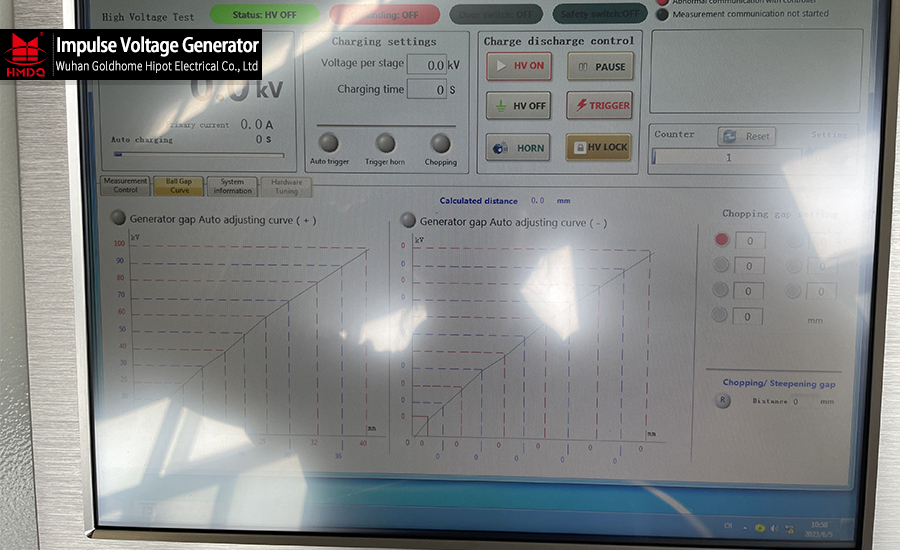

- Automatically read the test data during the test,analyze and calculate,and display useful test information such as waveform parameters(wavefront time,half-wave time,Q and W/R,etc.),current amplitude and limiting voltage;
- Can bear large load
- Higher voltage efficiency
Parameter:
- Nominal stage:Can be customized,such as 300kV,600kV,1200kV,etc.
- Rated voltage stage:Normally100kV
- Rated Charging voltage:Normally100kV
- Nominal energy:Can be customized,such as 10KJ,20KJ,30KJ,etc.
- Total impact capacitance:Can be customized according to tested object
- Waveform also could be customized except regular waveform shapes.

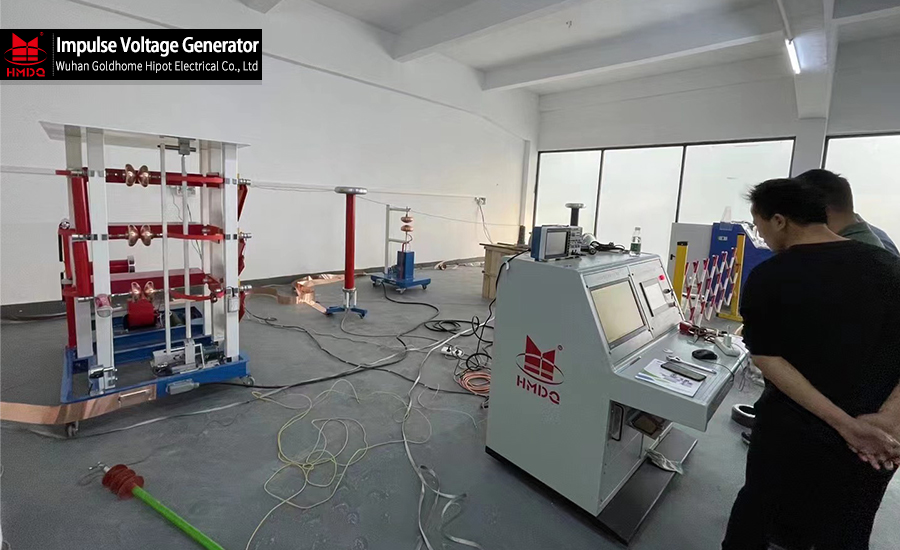

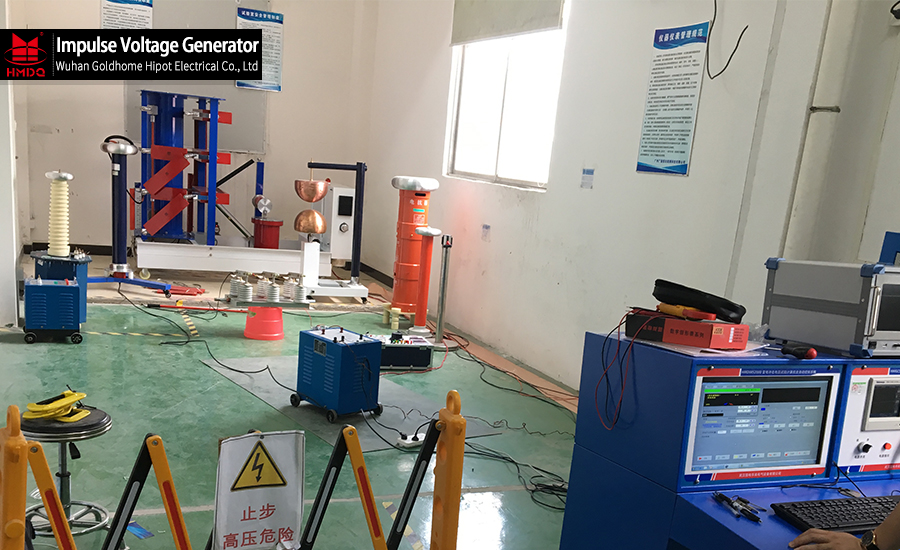

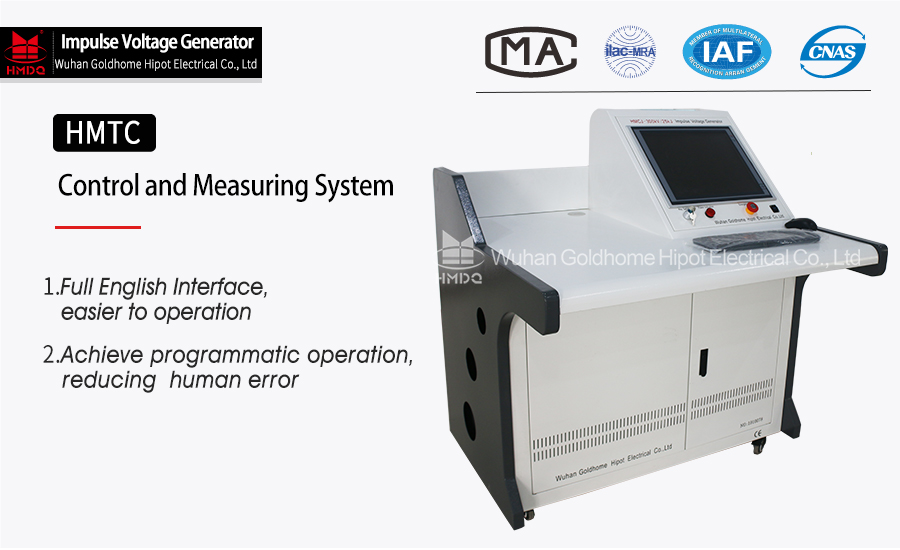

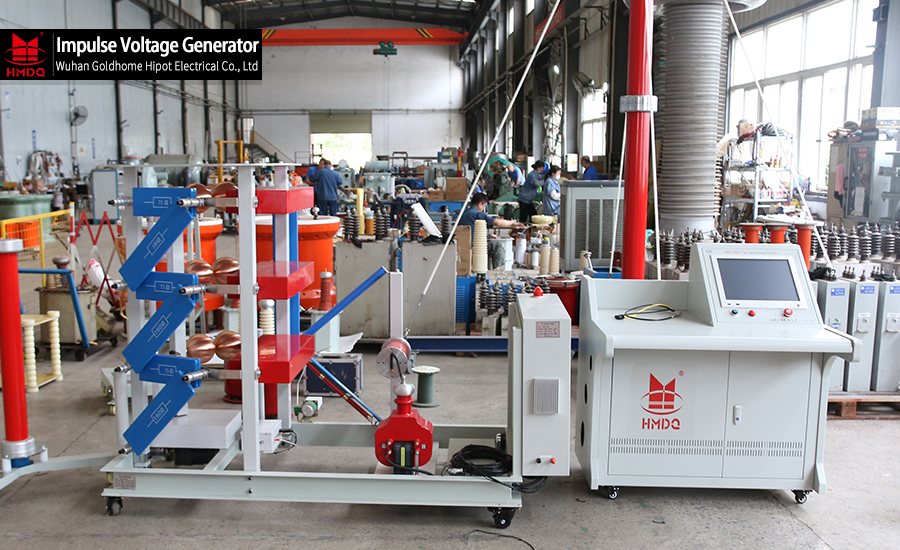

Pictures:
