HMCJ 600kV/30kJ Lighting Impulse Voltage Generator Complete Set Of Test Equipment
Applications:
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Brief Introduction:
High Voltage Impulse Generator High Voltage Impulse Generator is used to make standard lightning impulse voltage full-wave, interception, steep wave and other impulse voltage tests for GIS combination electrical appliances, air gaps, insulator strings, bushings, etc .
Features:
- Fully operation automatically,automatic discharge,automatic change the polarity
- Can trace the gap distance,and adjust the gap
- Fully-closed shell,safety and decrease the discharge voice to the operator’s harmful

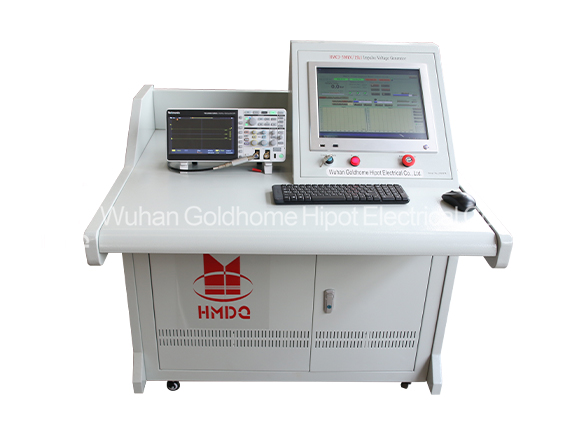

- Using the oscilloscope produced by Tektronix

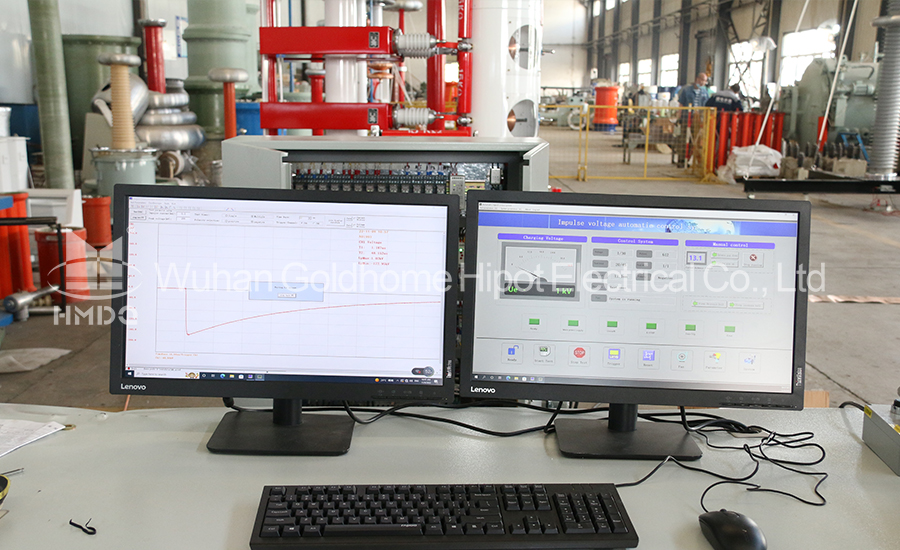

- Automatically read the test data during the test,analyze and calculate,and display useful test information such as waveform parameters(wavefront time,half-wave time,Q and W/R,etc.),current amplitude and limiting voltage;
- Can bear large load
- Higher voltage efficiency
Parameter:
- Nominal stage:Can be customized,such as 300kV,600kV,1200kV,etc.
- Rated voltage stage:Normally±100kV
- Rated Charging voltage:Normally±100kV
- Nominal energy:Can be customized,such as 10KJ,20KJ,30KJ,etc.
- Total impact capacitance:Can be customized according to tested object
- Impulse voltage waveform parameters
- Standard lightning impulse voltage full wave:1.2±30%μs/50±20%μs，The amplitude is±3%,The oscillation at the wave head is not more than 5%of the amplitude
- Standard operating impact waveform 250±20%μs/2500±60%μs；Chopper waveform time：2～6μs
- Impulse voltage waveform:Impulse voltage waveform>10％Un,synchronizing range≤20%,Instability rate of output voltage≤1.5%,Error rate of synchronous discharge＜2%

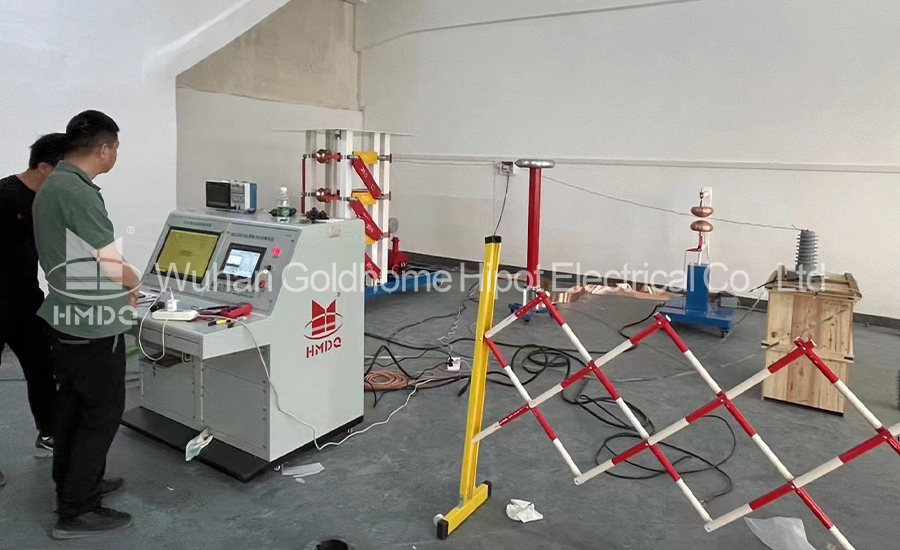

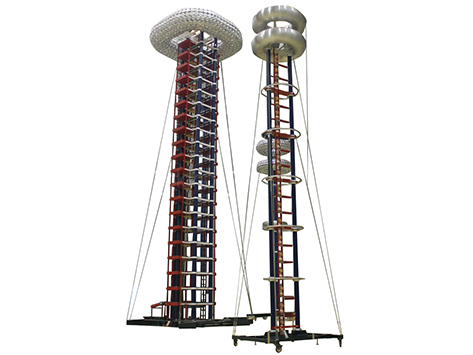

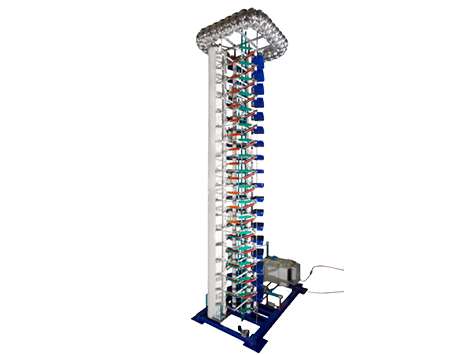

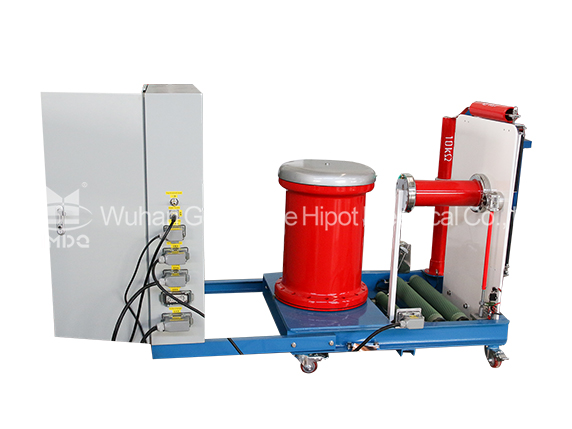

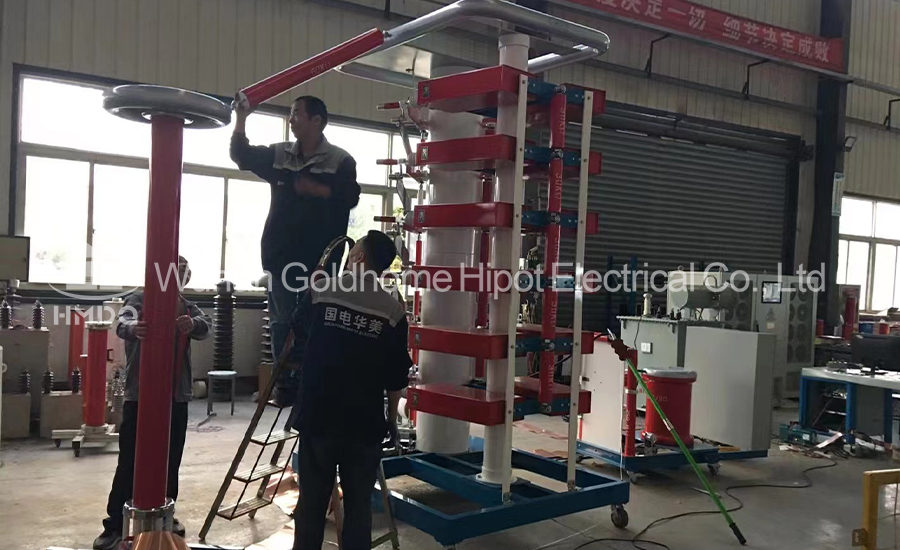

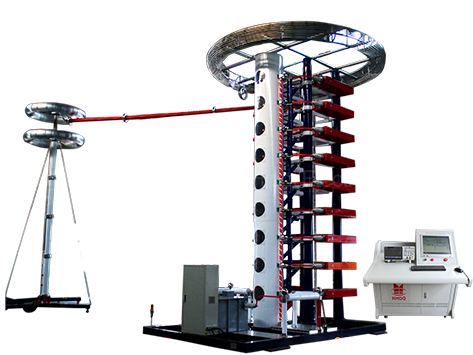

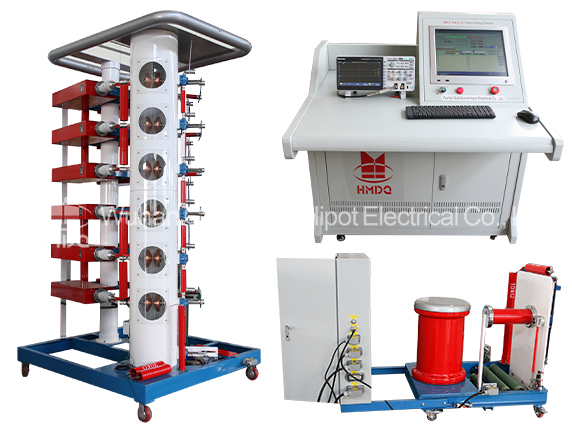

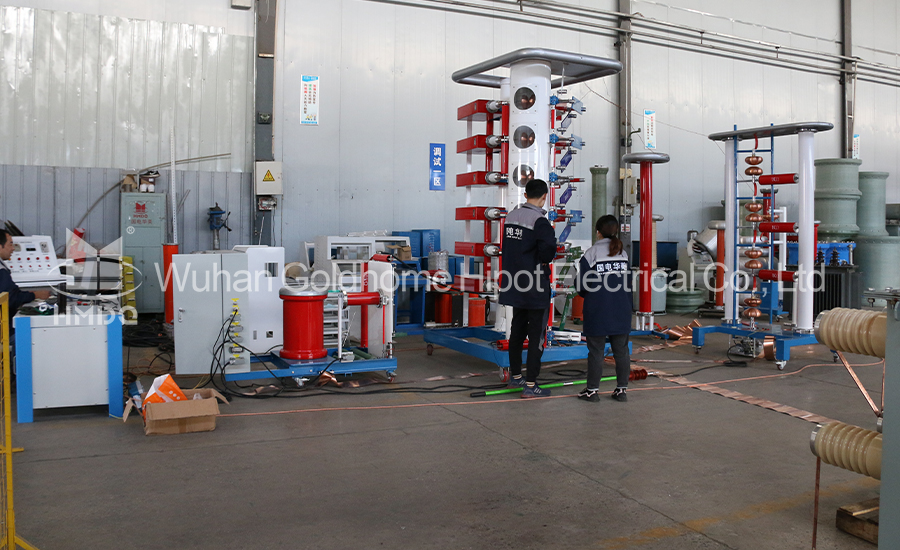

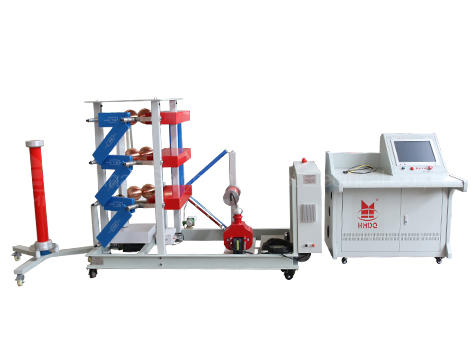

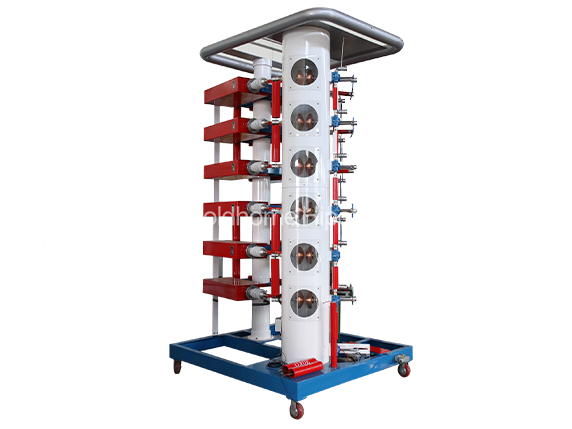

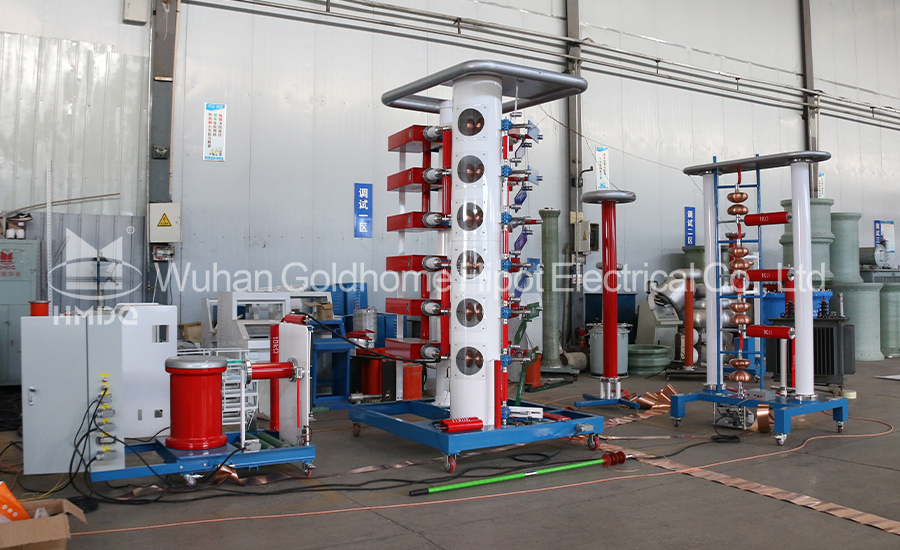

Pictures:
