HM-A10 Cable Locator
Applications:
Cable Locator is a comprehensive cable fault detection device. It can test the high-resistance flashover fault, high-low-resistance grounding, short circuit and short-wire of the cable, poor contact and other faults, especially suitable for testing various types on power cables and communication cables with different levels on voltage.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:

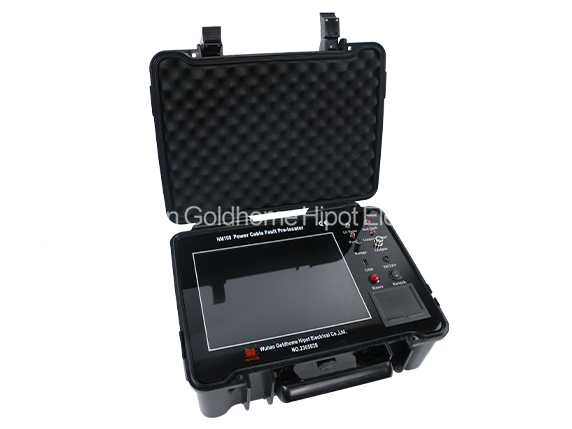

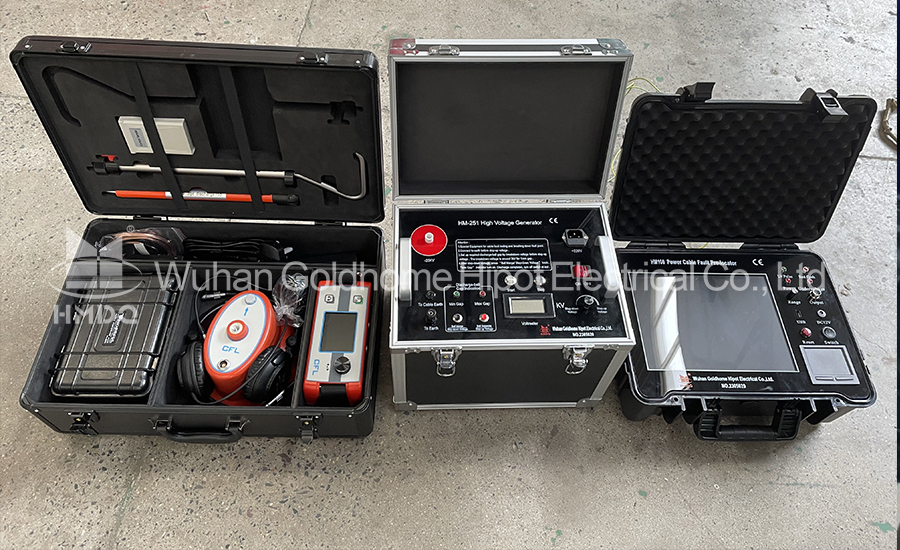

Power cable fault locator is the advance system for testing and fault locating on low and medium voltage cables. it can test cable fault at different voltage levels below 35KV. Can test cable fault of different cable sections, different dielectric and different cable materials. Can test open-circuit cable fault, short-circuit cable fault, low-resistance cable fault, high-resistance leakage cable fault and high-resistance flash-over cable fault. Also can test buried route and depth of power cable.
The cable fault location can also be used for accurate testing of railway and airport signal control cable fault and streetlight cable fault.
The cable fault location can also be used for accurate testing of railway and airport signal control cable fault and streetlight cable fault.

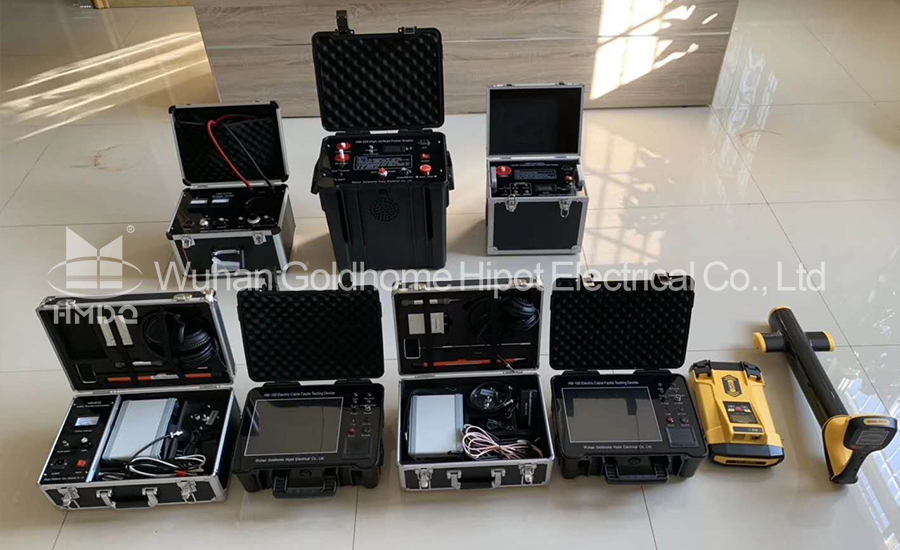

Features:
- Using the embedded IPC platform system, industrial level use environment, to achieve strong stability. Lithium power supply, convenient for fieldtest.
- 12.1 inch large screen system, touch mouse operation, Computer XP operating platform integrated software.
- Adopts the latest USB interface, stability collecting. can realize double control and double display by using a notebook computer. The host can automatically select five kinds sampling frequency from 6.25MHz to 100MHz.adaptive pulse width can meet the testing requirements of different cable lengths, to reduce the rough measurement error and improve test accuracy.
- Software can realize searching fault automatically, display distance automatically , double vernier movement which can be accurate to 0.15 m. Waveform can be freely compressed and extended.
- 8G memory can store multiple kinds of field waveform and field wiring diagram, Just one click to use.
- As an important component of the cable fault test system, Precise locator can directly display the distance from tester to fault point. It helps you in locating fault precisely and quickly.
Parameter:
- Test distance: max up to 100Km
- Minimum test distance (non-detection area): 0-5m or without
- Locating error:±0.2m
- Test error:system error is no ore than ±1%
- Resolution: V/50m V is transmitting velocity m/μs,Software cursor is 0.15m. Sampling frequency:6.25MHz、12.5MHz、25MHz、50MHz、 100MHz(Adaptive pulse width)
- Power source and power consumption: AC 220V±10%15W DC 12V（7AH）≤ 20W
- Stand-by time:continuous working 4 hours
- Communication interface: USB.

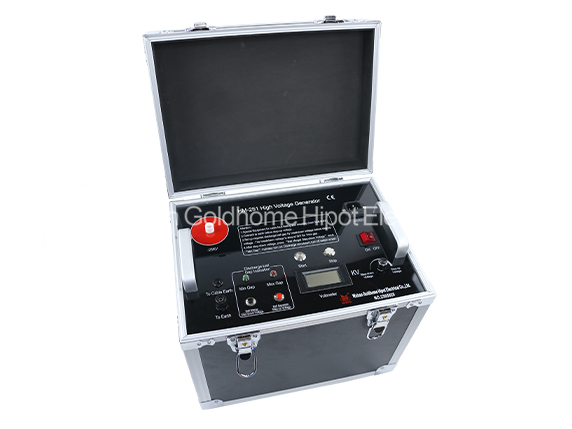

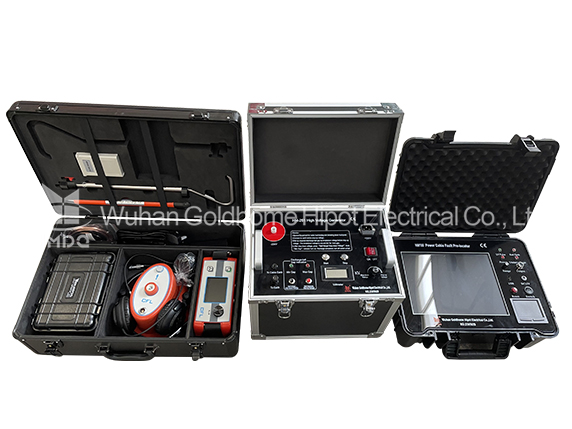

- High voltage generator :0~32kV DC output continues

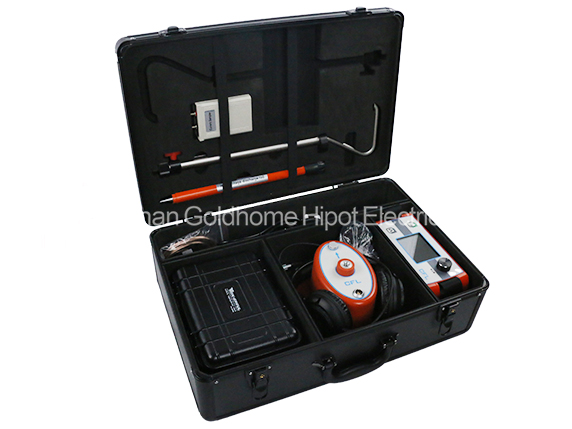

- Pinpointing : Acoustic or magnetic synchronization (option)
