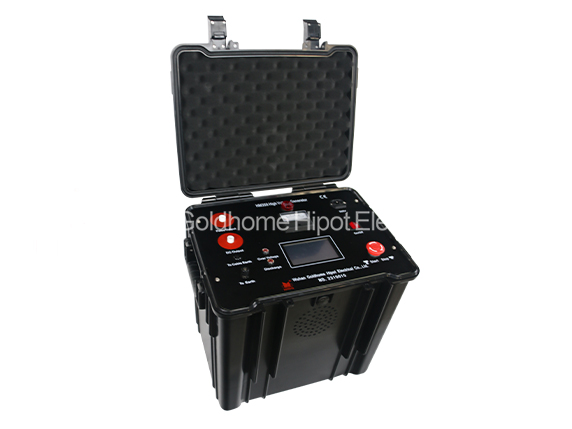

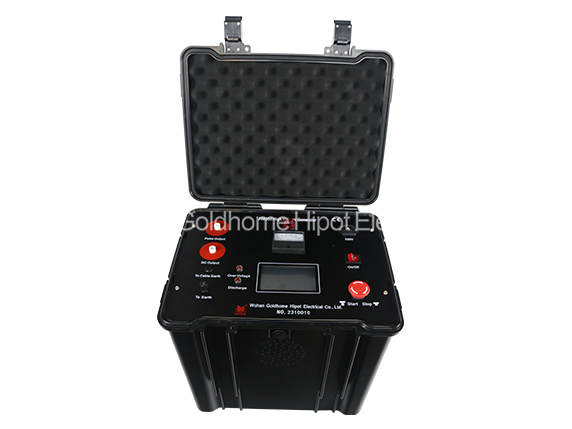

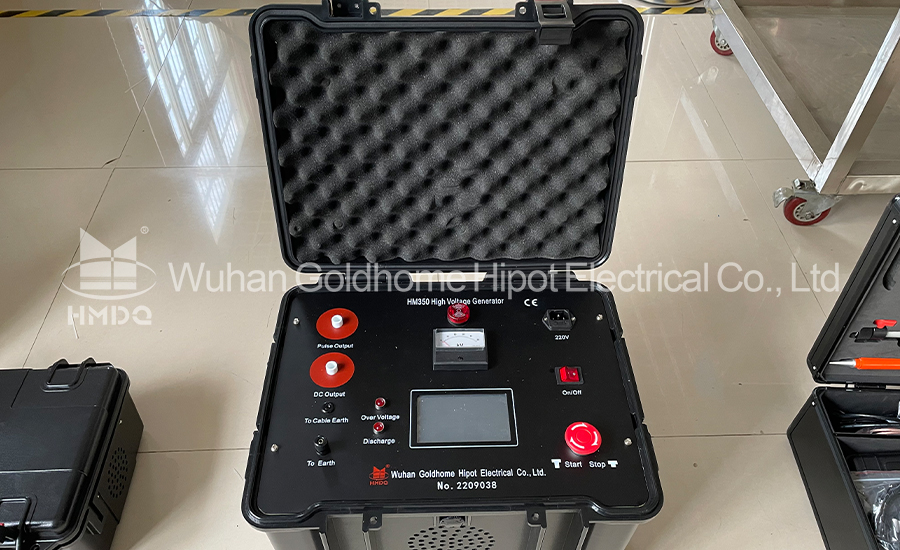

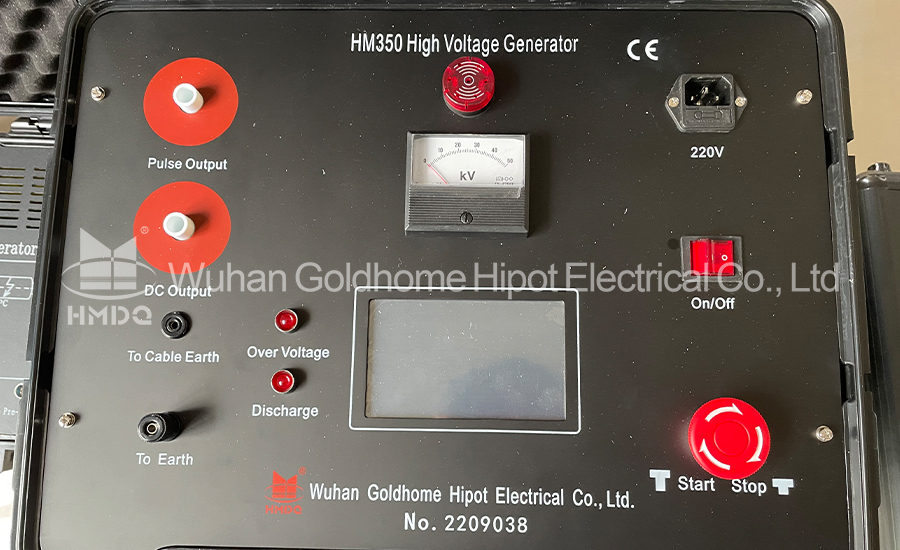

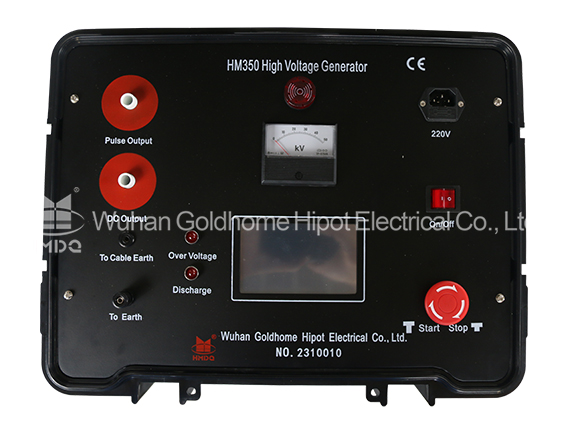

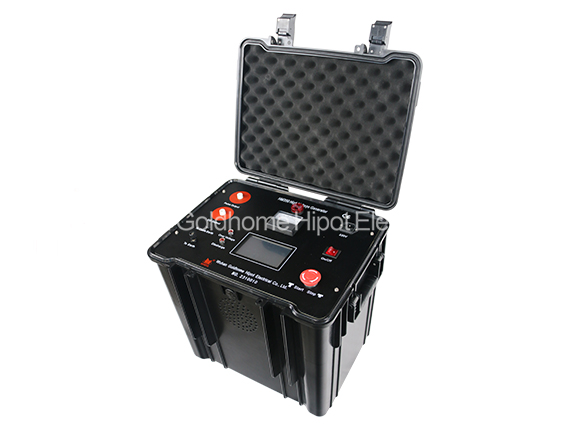

HM350 Cable Fualt Locator High Voltage Generator
Applications:
Cable Fualt Locator High Voltage Generator is mainly used for impulse discharging when sample high-resistance fault waveforms on power cable on 35KV and below, and for impulsive discharge when precisely locate fault point.
- Strictly FAT Test
- Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
This product is mainly used for impulse discharging when sample high-resistance fault waveforms of power cable of 35KV and below, and for impulsive discharge when precisely locate fault point. It can also be used for the burn-through of high-resistance faults of power cables and external sheath precisely locating for extra-high voltage cables above 110KV. It can burn through the breakdown point in a short time and reduce resistance in the breakdown point.
Features:
- Integrated design, built-in capacitor, simple wiring.
- Touch screen, simple setting and operation, intuitive and convenient display.
- With voltage regulation, automatic voltage stabilization and automatic protection functions.
- The output high voltage has the function of single pulse and continuous pulse.
- The output high voltage has a DC output, which can work with an external ball gap, and has a variety of applications.
- The software controls vacuum impulse ignition and discharge, self-adaptive discharge and pulse period.
- With emergency stop button, automatic discharge function, safe and reliable.
- The continuous working time is not less than 6 hours, meeting the longest working time of cable fault test.
- Engineering chassis design, compact structure, small size, light weight, easy to carry by one person.
Parameter:
- Output mode: pulse output, DC output
- Output voltage: negative voltage, 0~-35kv continuously adjustable
- Working current: ≤40mA
- Working mode: single pulse, continuous pulse, DC output
- Built-in capacitance: 2.8uF/35kv
- Discharge energy: ≤1715J
- Pulse period: 3s~8s adaptive
- Automatic discharge: automatic discharge after shutdown
- Working power supply: power frequency 220V±10%
- Display screen: 800×480 resolution touch screen
- Working temperature: -10℃~40℃
- Working humidity: ≤80%
- Altitude: ≤1000m
