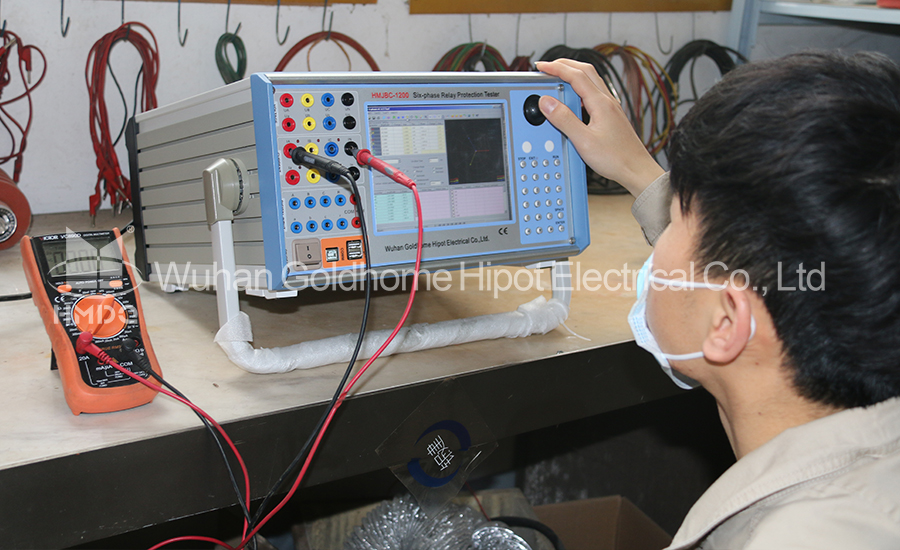

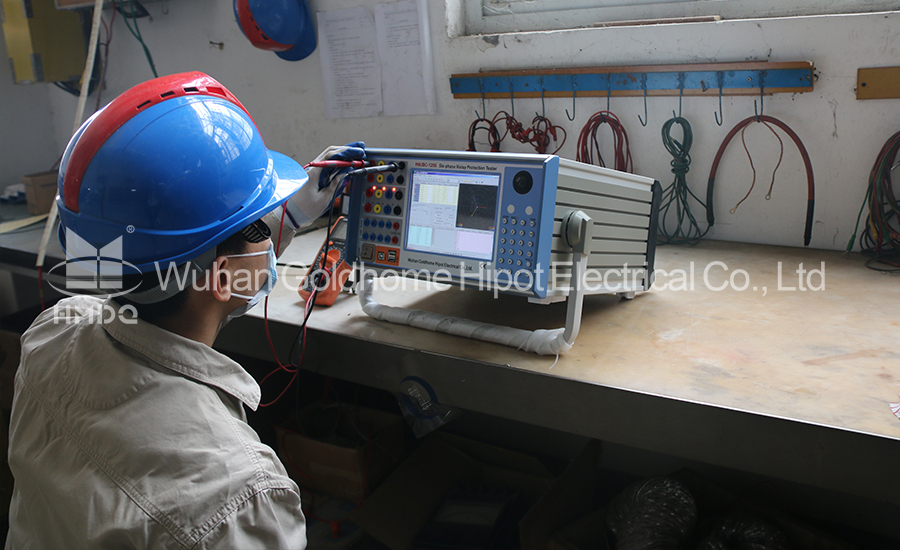

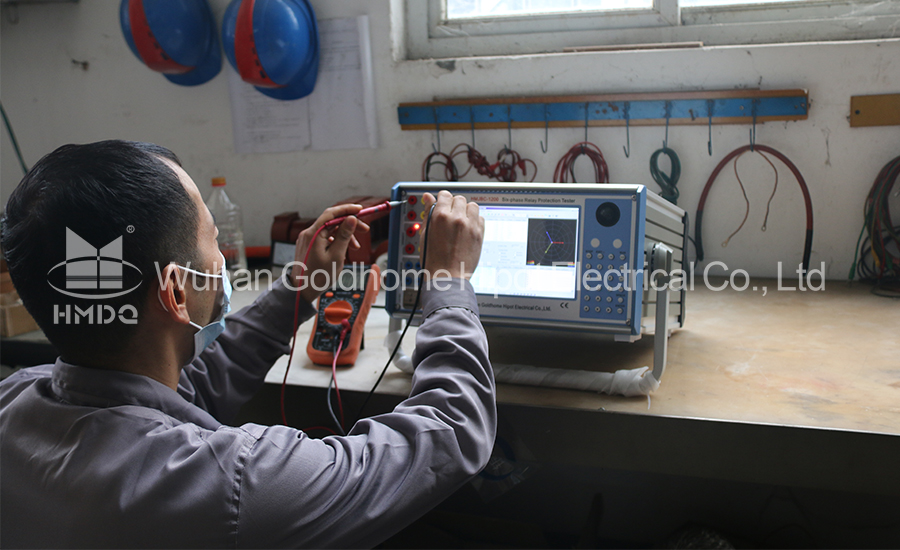

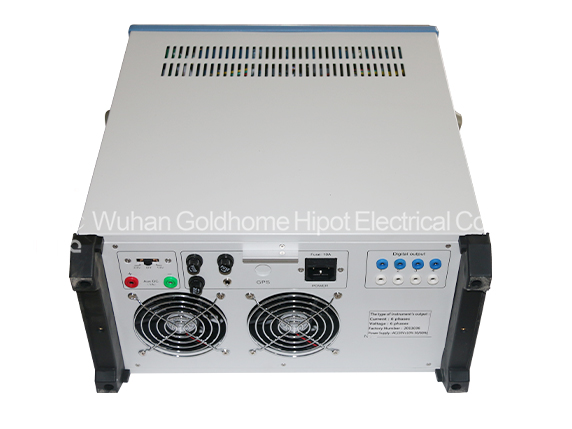

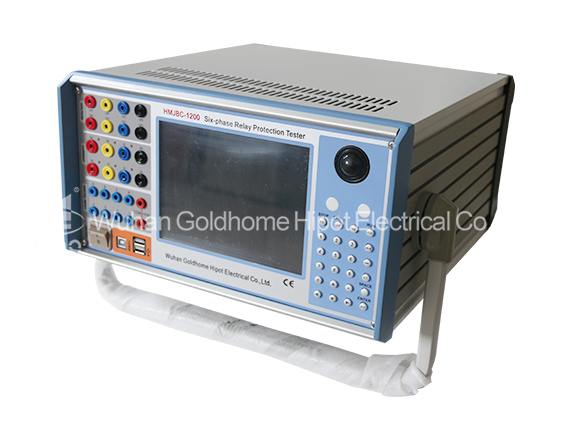

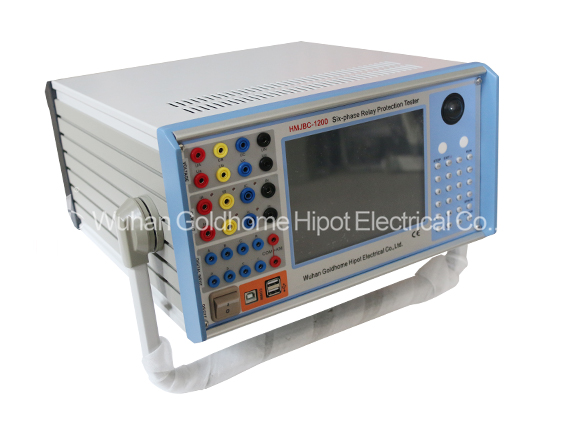

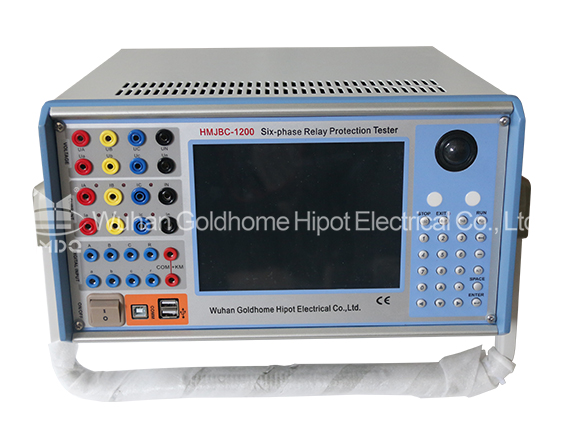

HMJBC-1200 Six Phase Relay Protection Tester
Applications:
Six Phase Relay Protection Tester it can test a variety of traditional relays and protection devices, as well as a variety of modern microcomputer protections, especially transformer differential protection and standby automatic switching devices.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
The six phase relay protection tester is an electronic testing equipment that specializes in detecting protective equipment in power systems. It can test various relay protection devices, including digital relay protection devices, microcomputer relay protection devices, automatic setting devices, auxiliary protection devices, etc.
Features:
- Flexible combination of voltage and current output.
- Operation mode: The device is directly connected with a computer or a desktop computer, which is convenient and efficient and stable performance.
- A new hi-fi linear power amplifier.
- High performance Mainframe.
- Powerful software function.
- Independent DC power output.
- Complete interface.
- Perfect self-protection function.
Parameter:
AC current output
The virtual value of each phase output when six phase current output: 0～30A,output precision: 0.1 grade
The virtual value of each phase output when three phase current output: 0～60A
The virtual value of six phase parallel current output: 0～180A
The allowed virtual value when the phase current work long time: 10A
The maximum output power of phase current: 450VA
The maximum output power when six phase parallel current output: 1000VA
The allowed working time when six phase parallel current maximum output: 10s
Frequency range（fundamental wave): 0～1000Hz
Harmonic order: 0～20
DC current output
The virtual value of each phase output when three phase current output: 0～60A
The virtual value of six phase parallel current output: 0～180A
The allowed virtual value when the phase current work long time: 10A
The maximum output power of phase current: 450VA
The maximum output power when six phase parallel current output: 1000VA
The allowed working time when six phase parallel current maximum output: 10s
Frequency range（fundamental wave): 0～1000Hz
Harmonic order: 0～20
Current output: 0～±10A / phase, output precision: 0.2 grade
The maximum load volatage output: 20V
AC voltage output
The maximum load volatage output: 20V
The virtual value of phase voltage output: 0～120V, output precision: 0.1 grade
The virtual value of line voltage output: 0～240V
The output power of phase voltage/ line voltage: 80VA / 100VA
Frequency range（fundamental wave): 0～1000Hz
Harmonic order: 0～20
DC voltage output
The virtual value of line voltage output: 0～240V
The output power of phase voltage/ line voltage: 80VA / 100VA
Frequency range（fundamental wave): 0～1000Hz
Harmonic order: 0～20
The output amplitude of phase voltage: 0～±160V, output precision: 0.2 grade
The output amplitude of line voltage: 0～±320V
The output power of phase voltage/ line voltage: 70VA / 140VA
The output amplitude of line voltage: 0～±320V
The output power of phase voltage/ line voltage: 70VA / 140VA
