HMJS Boots(Gloves) Withstand Voltage Tester
Applications:
This insulating boots(Gloves) withstand voltage test equipment is used to test leakage current,insulation aging,power frequency on insulating gloves and boots
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
We designed & produced Model no. HMJS insulating boots ( gloves ) dielectric test equipment based on charged protective equipment insulation test procedures, and compliance with the majority of users opinions. The product has an effective solution for the past irregular testing method, thereby simplifying the testing procedures, improving the test speed. A more reliable identification of insulating boots ( gloves ) leakage current, insulation aging, power frequency withstand voltage and other parameters. To protect operator safety, so it is the ideal insulation boots ( gloves ) and special equipment.
Features:
It can be tested simultaneously 4 pair of insulating boots ( gloves ), and it can read leakage current of each glove to judge unqualified insulating boots ( gloves ); structure bottom assembly casters, so it can freely move.
Parameter:
- Input voltage: AC220V±10%, 50/60Hz
- Output voltage: 0~50KV
- LV currency: 0~25A
- Output capacitance: 0~5kVA
- Timig range: 0~999S
- Voltage accuracy: ≤2% (F. S)
- Currency accuracy: ≤1.5% (F. S)
- Leakage current: 0~50mA
- Leakage current resolution: 0.1mA
- Ambient temperature: -20ºC~50ºC
- Test number: 4 pairs each

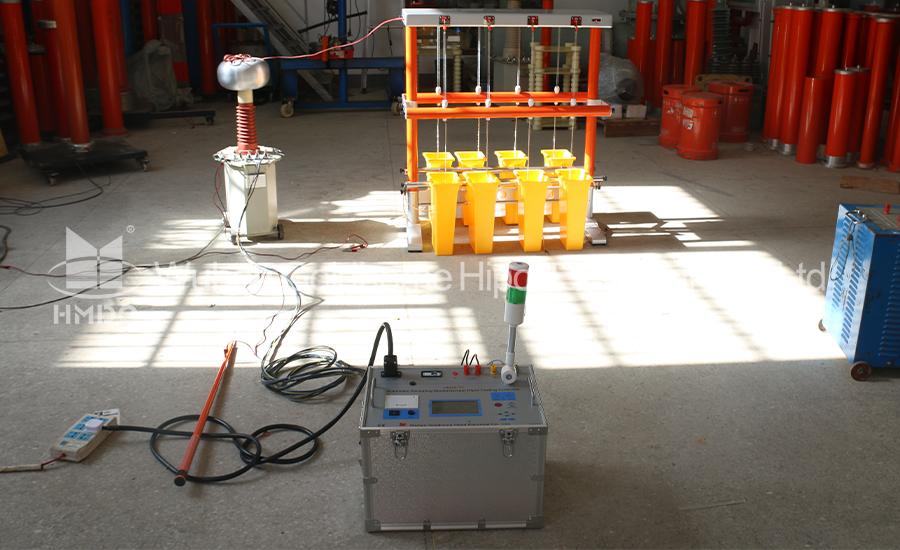

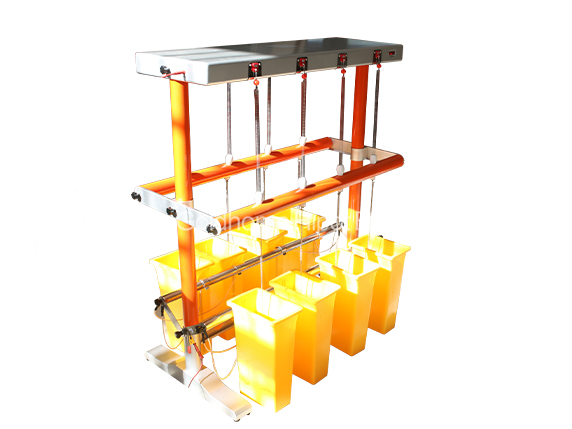

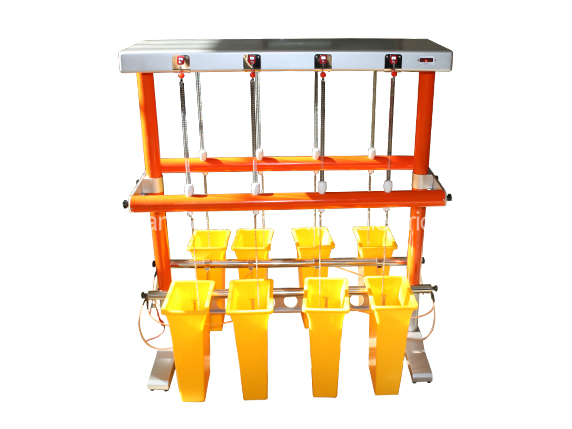

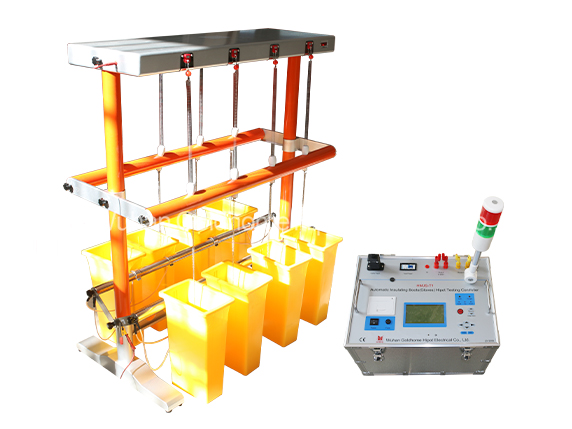

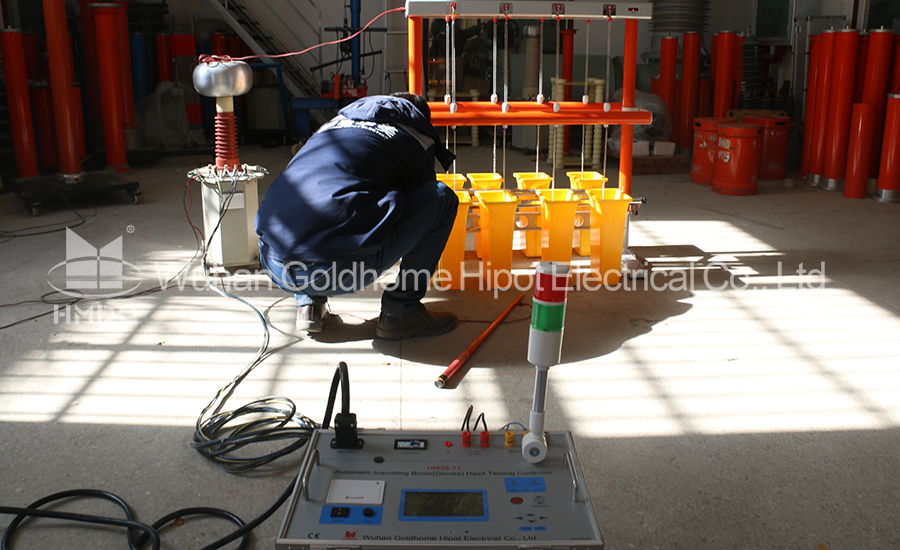

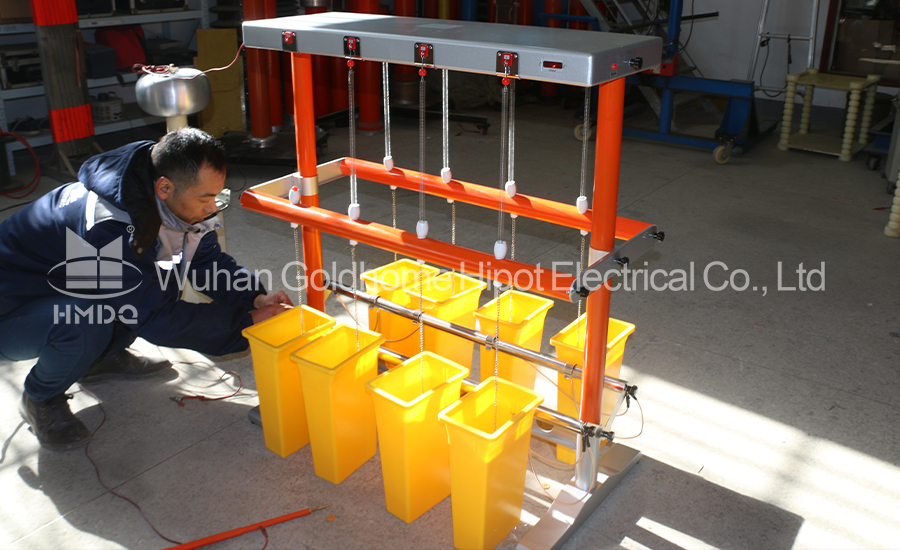

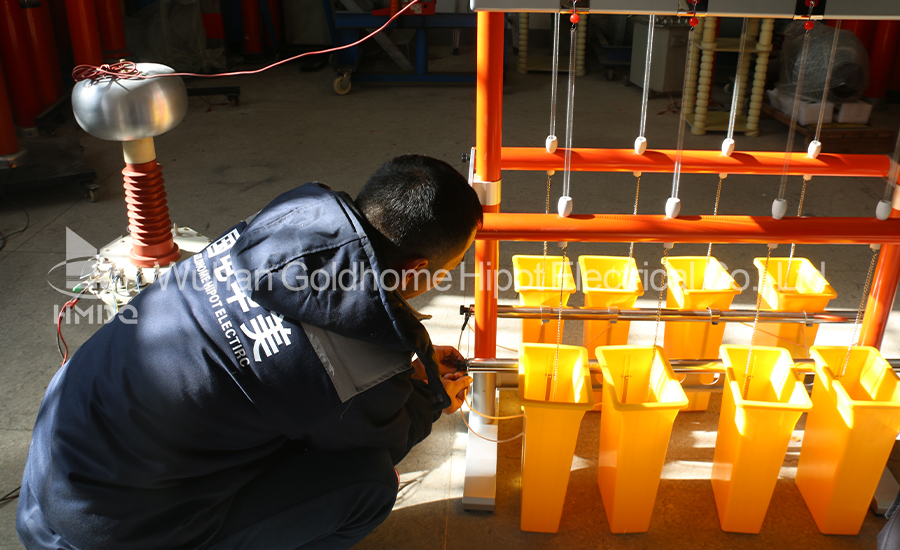

Pictures:
