HMSLQ 3500A High Current Generator Primary Injection Test Set
Applications:
3500A High Current Generator Primary Injection Test Set is an essential equipment for electrical debugging in various industries that require high current locations. It is used in power plants, substations, electrical manufacturing plants, scientific research, laboratories, and other units. It belongs to the short-term or intermittent working system.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
3500A High Current Generator Primary Injection Test Set is an essential equipment for electrical debugging in various industries that require high current locations. It is used in power plants, substations, electrical manufacturing plants, scientific research, laboratories, and other units. It belongs to the short-term or intermittent working system. The HMSLQ series DC high current generators produced by our company have the characteristics of stable performance, convenient use and maintenance.
Features:
- Two working modes: electric and jog
- Timing alarm automatically returns to zero
- Overcurrent protection alarm automatically returns to zero
- Zero position protection, non-zero automatic return to zero
- Output current display
- Input voltage display
Parameter:

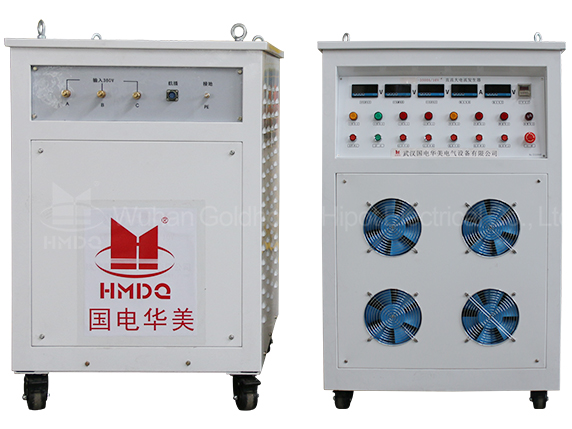

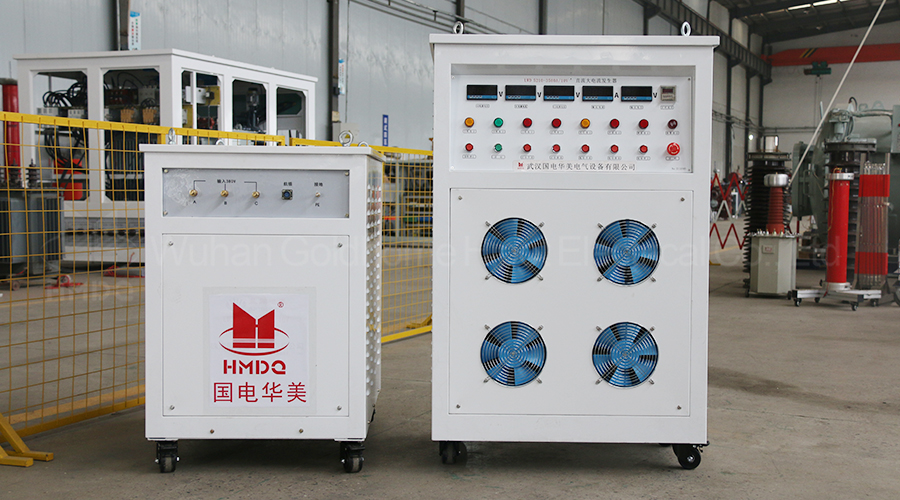

Structural type: Split two-piece set (intelligent electric control console/electric induction voltage regulator integrated, current transformer including rectifier)
1. Electric voltage regulator
Input voltage: 380V/three-phase
Rated capacity: 40kVA
Input current: 60.7A
Output voltage: 0-430V/three-phase
Output current: 53.7A
Cooling method: air cooling

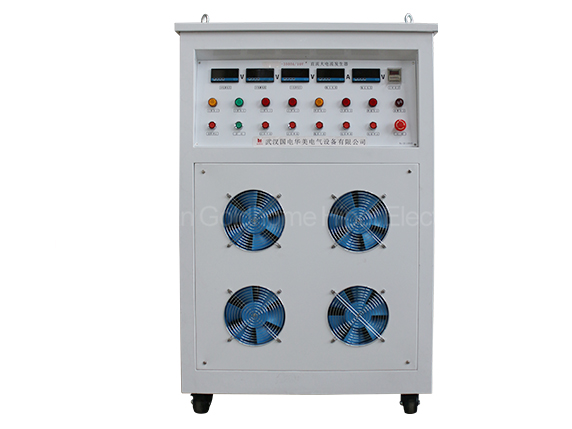

2. Intelligent electric control console
Input voltage: 380V/three-phase
Input current: 60.7A
Rated capacity: 40kVA
Output current indication: DC 0~3.5kA
Input voltage indication: 450V
Meter head accuracy: 0.5% level (digital)
Overcurrent setting: DC 0~3.5kA
Overcurrent bounce release time: 7mS
Timing range: 0~999S, M, H switchable
Indications of various functional signal lights
Cooling method: forced cooling by fan

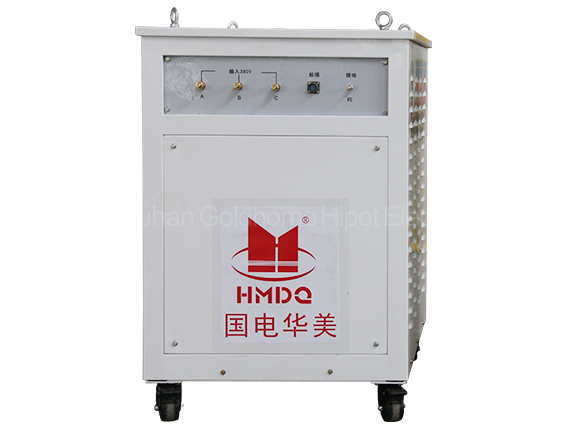

3. Boosting transformer
Input voltage: 0-400V/three-phase
Input current: 0~57.7A
Rated capacity: 40kVA
Output voltage: DC1-10V (open)
Output current: DC250~3500A
ZP rectifier diode 3500A/200V (six sets)
Current splitter: FLQ-DC3500A/75mV (six sets)
Current divider accuracy: 1.0% level
Output current standard sine. Ripple coefficient less than 0.3%
Full wave rectification
Running time: 3500A, running for ≤ 5 minutes.
Cooling method: air cooling
1. Electric voltage regulator
Input voltage: 380V/three-phase
Rated capacity: 40kVA
Input current: 60.7A
Output voltage: 0-430V/three-phase
Output current: 53.7A
Cooling method: air cooling
2. Intelligent electric control console
Input voltage: 380V/three-phase
Input current: 60.7A
Rated capacity: 40kVA
Output current indication: DC 0~3.5kA
Input voltage indication: 450V
Meter head accuracy: 0.5% level (digital)
Overcurrent setting: DC 0~3.5kA
Overcurrent bounce release time: 7mS
Timing range: 0~999S, M, H switchable
Indications of various functional signal lights
Cooling method: forced cooling by fan
3. Boosting transformer
Input voltage: 0-400V/three-phase
Input current: 0~57.7A
Rated capacity: 40kVA
Output voltage: DC1-10V (open)
Output current: DC250~3500A
ZP rectifier diode 3500A/200V (six sets)
Current splitter: FLQ-DC3500A/75mV (six sets)
Current divider accuracy: 1.0% level
Output current standard sine. Ripple coefficient less than 0.3%
Full wave rectification
Running time: 3500A, running for ≤ 5 minutes.
Cooling method: air cooling
