HMCJ 300kV/20kJ HV Lightning Impulse Voltage Generator
Applications:
A lightning impulse voltage generator is a device used to simulate lightning strikes in order to test the insulation and withstand voltage capability of electrical equipment. It generates high voltage impulses that mimic the characteristics of lightning strikes, allowing engineers to assess the performance and reliability of the equipment under such extreme conditions.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
impulse voltage generator is mainly used to test the impulse voltage of lightning impulse voltage full wave, lightning impulse voltage chopped wave and operating impulse voltage wave for testing insulation performance.
Features:
- Fully operation automatically,automatic discharge
- Can trace the gap distance,and adjust the gap
- Using the oscilloscope produced by Tektronix
- Automatically read the test data during the test,analyze and calculate,and display useful test information such as waveform parameters(wavefront time,half-wave time,Q and W/R,etc.),current amplitude and limiting voltage;
- Can bear large load
- Higher voltage efficiency
Parameter:
- Nominal stage:Can be customized,such as 300kV,600kV,1200kV,etc.
- Rated voltage stage:Normally100kV
- Rated Charging voltage:Normally100kV
- Nominal energy:Can be customized,such as 10KJ,20KJ,30KJ,etc.
- Total impact capacitance:Can be customized according to tested object
- Waveform also could be customized except regular waveform shapes.

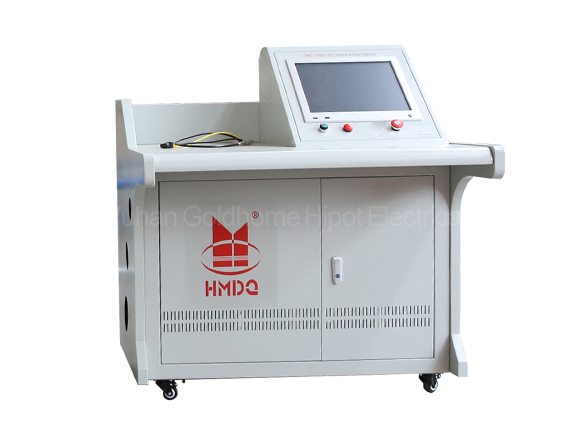

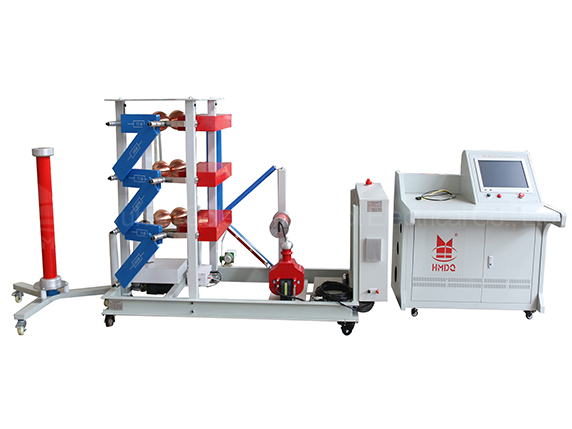

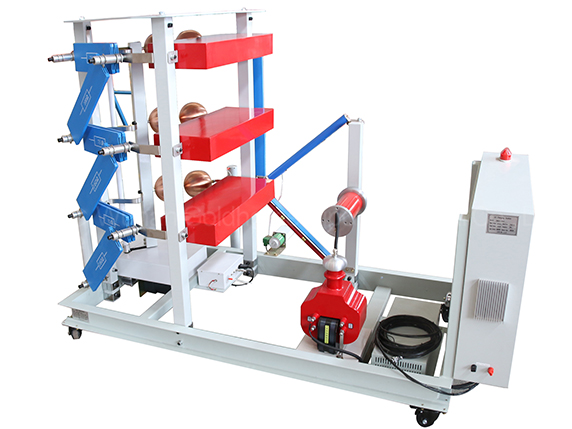

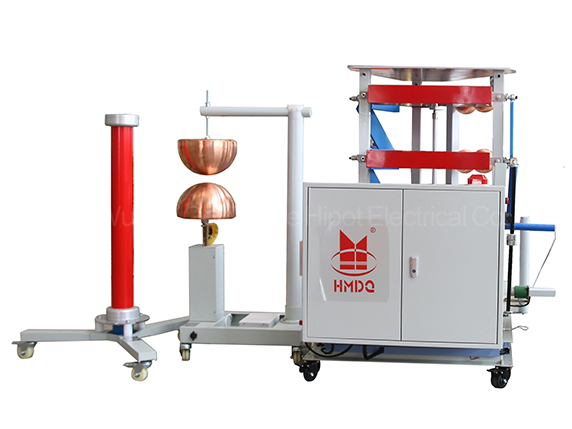

Pictures:
