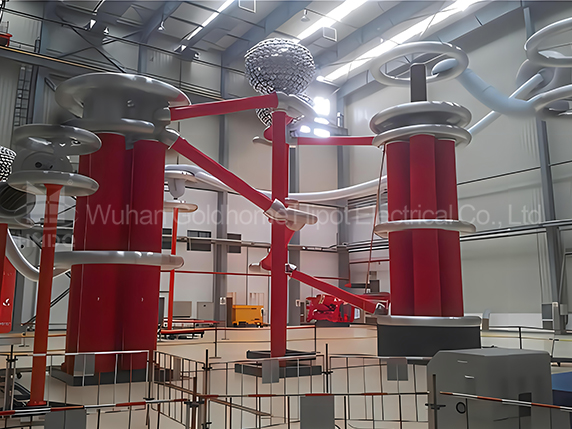

2000kV High voltage DC test systems
Applications:
High voltage DC test systems are designed to test systems with higher currents ranging up to 2A, such as for outdoor or pollution testing. And the DC voltage test systems are generally equipped with polarity reversal.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
HVDC Polarity Reversal Testing in high voltage DC test voltages for routine,type and development test on components and complete systems found in electrical power supply systems and operating on DC voltage(HV transmission systems etc).
They are used for withstand DC voltage or polarity reversal testing according to IEC or other national standard.Also they can be used as HVDC charging power for capacitor banks etc.
Features with low ripple on voltage,rapid polarity reversal,and can upgrades for the DC test system to measure partial discharges of the test system at low background noise levels
Normal HV DC voltage test system consists of HVAC charging power,doubling capacitors,rectifiers,smoothing capacitors and resistive voltage divider.HVAC voltage will be rectified to HVDC test voltage by means of an appropriate electric circuit.
They are used for withstand DC voltage or polarity reversal testing according to IEC or other national standard.Also they can be used as HVDC charging power for capacitor banks etc.
Features with low ripple on voltage,rapid polarity reversal,and can upgrades for the DC test system to measure partial discharges of the test system at low background noise levels
Normal HV DC voltage test system consists of HVAC charging power,doubling capacitors,rectifiers,smoothing capacitors and resistive voltage divider.HVAC voltage will be rectified to HVDC test voltage by means of an appropriate electric circuit.
Features:
- High-voltage DC testing for transformers, cables, bushings, switchgears, etc.
- Wet and pollution testing
- DC current measurements at high-voltage potential
- Charging capacitor banks for high-performance testing
- Special testing, for example, for bipolar testing of overhead lines
Parameter:
- Voltage Range：500-2000kV
- Current：up to 2A
