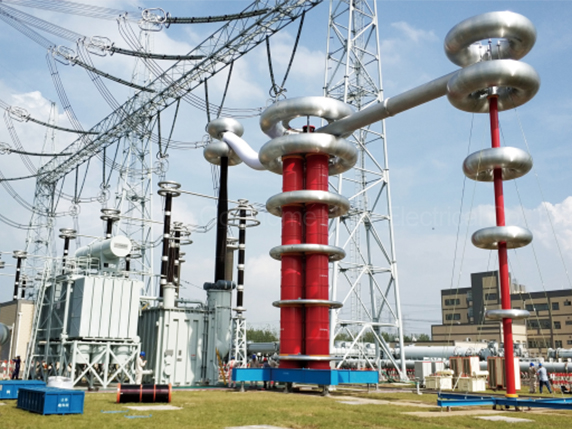

1200kV UHV AC induced Voltage Withstand And Partial Discharge-Free Test System

The 1200kV UHV AC induced voltage withstand and partial discharge-free test system is a high-voltage testing system designed to evaluate the insulation performance of ultra-high voltage(UHV)electrical equipment.This system is capable of subjecting the equipment to high induced voltages and measuring its ability to withstand these voltages without experiencing partial discharge.
The test system typically includes a high-voltage AC power source capable of generating voltages up to 1200kV,as well as a test chamber or test setup where the equipment under test can be placed.The system also includes measurement and monitoring equipment to assess the partial discharge behavior of the equipment under the induced voltage.
The purpose of the test is to ensure that UHV electrical equipment,such as transformers,circuit breakers,and bushings,can operate safely and reliably under high induced voltages without experiencing partial discharge,which can lead to insulation breakdown and equipment failure.
By subjecting the equipment to high induced voltages and monitoring its partial discharge behavior,the test system can provide valuable information about the insulation integrity and overall performance of the UHV equipment.This helps to ensure the safety and reliability of UHV electrical systems,particularly in power transmission and distribution applications where high voltages are present.
Overall,the 1200kV UHV AC induced voltage withstand and partial discharge-free test system plays a crucial role in the testing and evaluation of UHV electrical equipment,helping to validate its insulation performance and reliability under extreme operating conditions.
