HMSLQ 1000A Mobile Integrated Primary Current Injection Tester
Applications:
A 1000A mobile integrated primary current injection tester is a crucial tool for testing and verifying the performance of protective relays, circuit breakers, and other components within power distribution systems. This type of tester is designed to inject a high-current signal into the system, allowing for comprehensive testing and analysis of protective devices.
-
Strictly FAT Test - Third-party Calibration
-
Response within
24 hours -
Free warranty
12 month -
On-line training
Support
Profile:
HMSLQ-1000A Primary Current Injection is widely used for strong-current field in electrical test, which is used in power plant, distribution substation, electrical equipment manufacturing, scientific research, laboratory and other units
Features:
- Full metal shell and aluminum-alloy panel combination with reasonable structure,
- Designed with wheel, convenient to move in actual testing .
- Simple wiring connection , easy to use and maintenance .
- Digital display and pointer display are optional .
- Simple wiring connection , easy to operate .
Parameter:
- Input Voltage:220V,single phase
- Capacitance:6KVA
- Primary Voltage:220V;Secondary Voltage:6V
- Primary Current:27.2A,Secondary Current:1000A
- Voltage/current accracy:1.5%6.G.Weight/N.Weight:78gks/60kgs
- Full load time should not exceed 5 minutes,

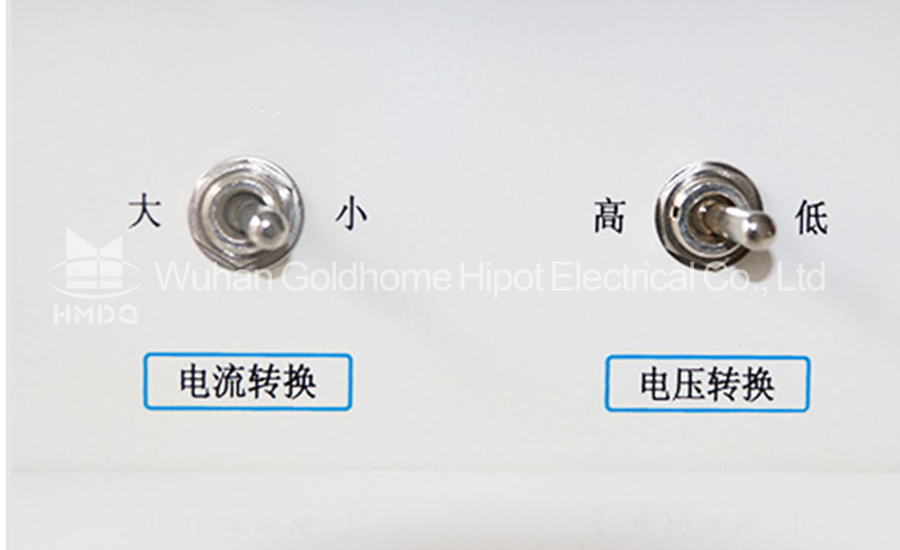

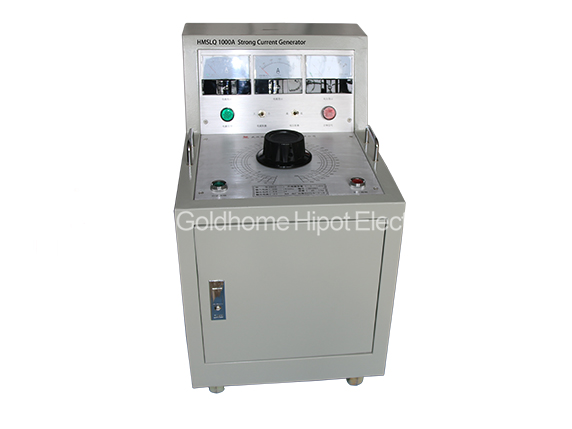

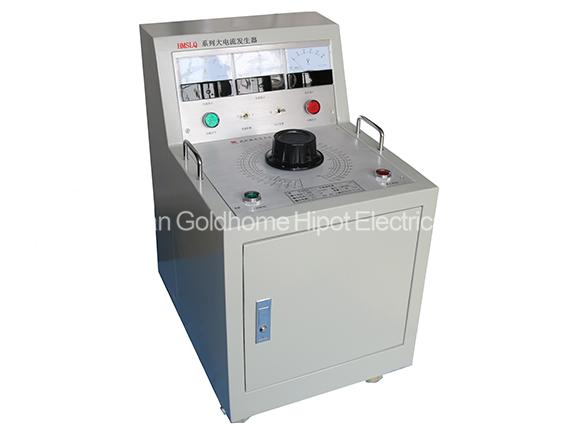

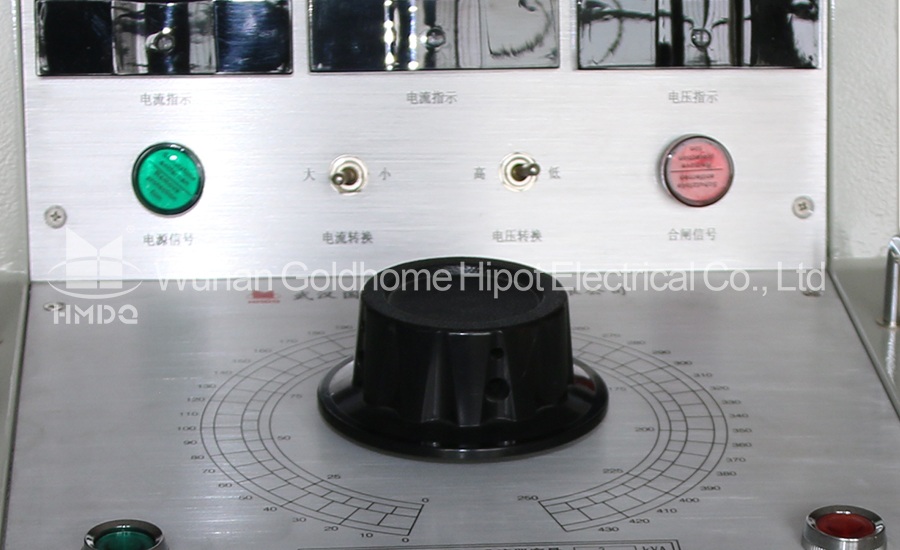

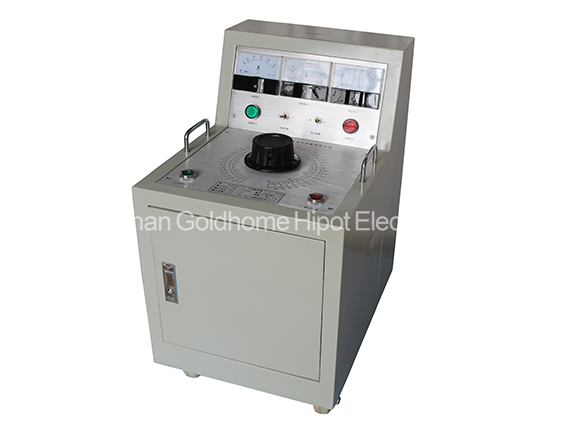

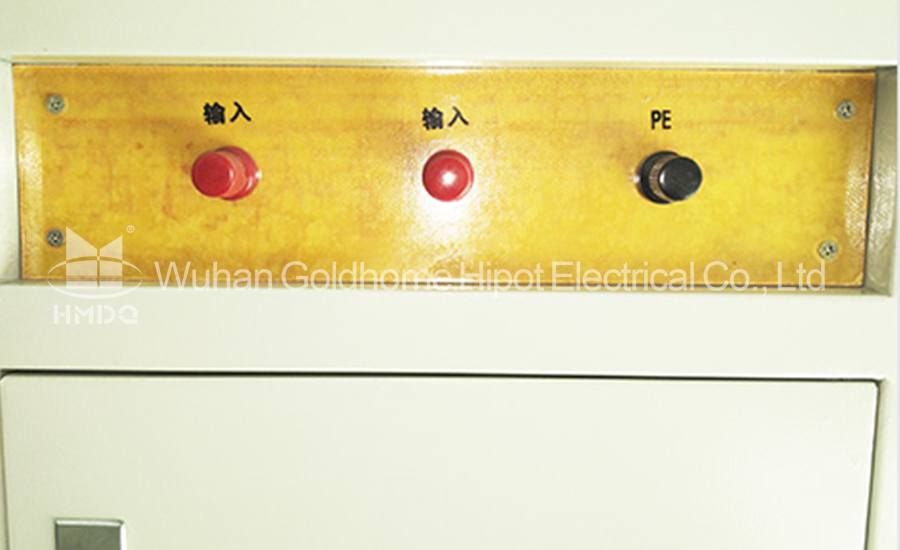

Pictures:
