What is the difference between primary and secondary current injection test System
Primary and secondary current injection tests are used to verify the proper functioning and coordination of protective relays,circuit breakers,and other protective devices in an electrical system.Here are the key differences between primary and secondary current injection test systems:

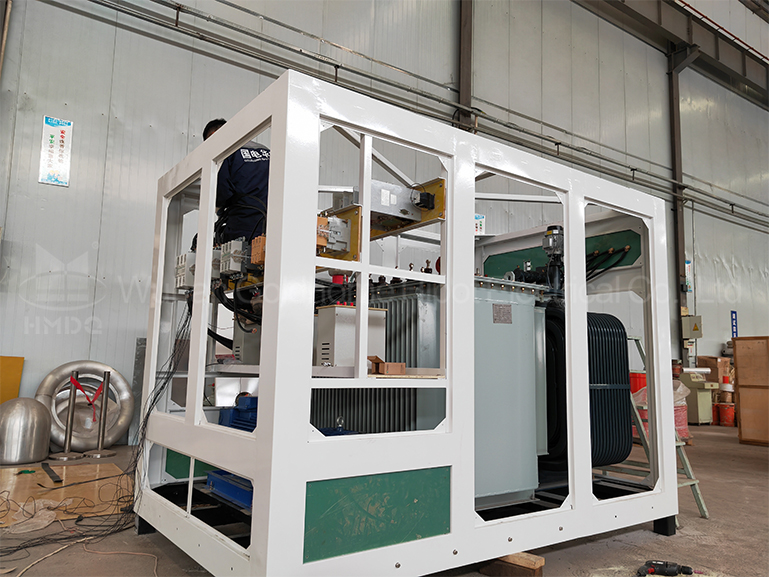

1.Primary Current Injection Test System:
-Purpose:Primary current injection tests are used to simulate high fault currents that the protective devices would experience during actual fault conditions.
-Current Levels:The primary current injection test system can generate very high currents,typically ranging from hundreds to thousands of amperes.
-Setup:This test is usually conducted on the primary side of the protection relay or circuit breaker.The primary current is injected directly into the primary side of the device under test.
-Applications:Primary current injection tests are commonly used for testing high-voltage circuit breakers,protective relays,and other high-current devices.
-Equipment:The primary current injection test system includes a high-current source,such as a current transformer or a generator,to inject the required current into the system.
2.Secondary Current Injection Test System:
-Purpose:Secondary current injection tests are used to simulate the operation of protective relays and associated control circuits under fault conditions.
-Current Levels:The secondary current injection test system generates lower currents compared to primary injection tests,typically ranging from a few milliamperes to several amperes.
-Setup:This test is usually conducted on the secondary side of the protection relay.The test set injects current into the relay's secondary winding to simulate the operation of the relay.
-Applications:Secondary current injection tests are used for testing protective relays,trip units,and associated control circuits in low-voltage systems.
-Equipment:The secondary current injection test system includes a test set that can generate adjustable currents and voltages for testing the operation of protective relays and associated devices.
In summary,primary current injection tests are used for high-current devices and simulate actual fault conditions,while secondary current injection tests are used for low-voltage systems to test the operation of protective relays and control circuits.
