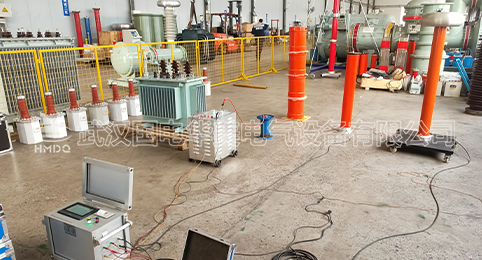

The principle of the series resonant test equipment is based on the concept of resonance,which occurs when the frequency of the applied voltage matches the natural frequency of the test object.This test setup consists of a power supply,a variable frequency source,a series capacitor,a series inductor,and the test object.


　　The power supply provides the necessary voltage for the test,while the variable frequency source allows for the adjustment of the applied frequency.The series capacitor and inductor are connected in series with the test object,creating a resonant circuit.

　　When the frequency of the applied voltage matches the natural frequency of the test object,the impedance of the series circuit is minimized,resulting in maximum current flow.This is known as the resonant frequency.

　　By measuring the current flowing through the circuit,various parameters of the test object can be determined.For example,the impedance at the resonant frequency can be used to calculate the capacitance or inductance of the test object.

　　Additionally,the series resonant test equipment can be used to detect faults in the test object.Any deviation from the expected resonant frequency or abnormal behavior of the current can indicate the presence of a fault.

　　In conclusion,the series resonant test equipment operates on the principle of resonance,allowing for the measurement of various parameters and the detection of faults in the test object.Its precise and reliable testing capabilities make it an essential tool in the field of electrical engineering.
