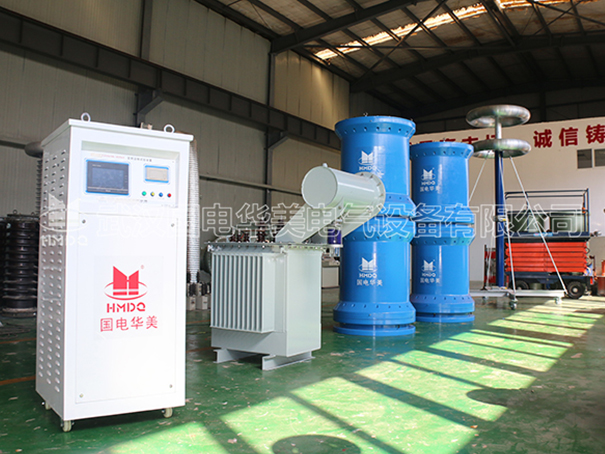

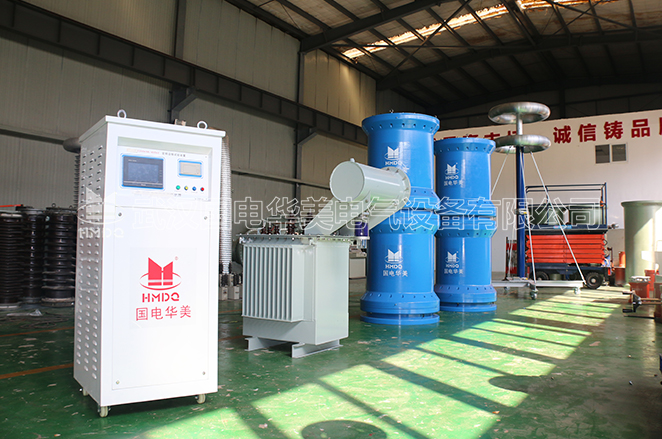

Function and usage method of AC Resonant Test System
The AC Resonant Test System is a specialized equipment used for testing the electrical insulation of high-voltage equipment,such as transformers,cables,and circuit breakers.It works by subjecting the equipment under test to a high-voltage AC signal at a specific frequency,allowing for the detection of any insulation weaknesses or faults.
Function:
Generating high-voltage AC signal:The AC Resonant Test System is capable of generating high-voltage AC signals of various magnitudes and frequencies.This signal is applied to the equipment under test to assess its insulation performance.
Frequency adjustment:The system allows for the adjustment of the frequency of the AC signal.This is important as different equipment may have different resonant frequencies,and testing at the resonant frequency can help identify any potential insulation issues more effectively.
Impedance matching:The system is designed to match the impedance of the equipment under test.This ensures that the maximum amount of power is transferred to the equipment,allowing for accurate testing and detection of insulation faults.
Usage method:
Preparation:The AC Resonant Test System needs to be set up and connected to the equipment under test.This includes connecting the high-voltage output of the system to the equipment and ensuring proper grounding and safety measures.
Frequency adjustment:The frequency of the AC signal is adjusted to match the resonant frequency of the equipment under test.This can be determined through calculations or previous knowledge of the equipment.
Voltage application:The high-voltage AC signal is gradually applied to the equipment under test while monitoring the insulation performance.This can be done by gradually increasing the voltage to the desired level or by following specific test procedures.
Analysis and interpretation:During the test,the system measures and records various parameters,such as voltage,current,and power factor.These measurements are then analyzed to identify any insulation weaknesses or faults.The test results are interpreted to determine the condition of the equipment and whether any repairs or further actions are required.
Overall,the AC Resonant Test System is a valuable tool for assessing the insulation performance of high-voltage equipment.It helps ensure the reliability and safety of such equipment by detecting potential faults and weaknesses before they cause serious damage or failure.
